IC698PSA100

Description

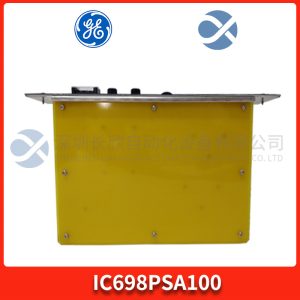

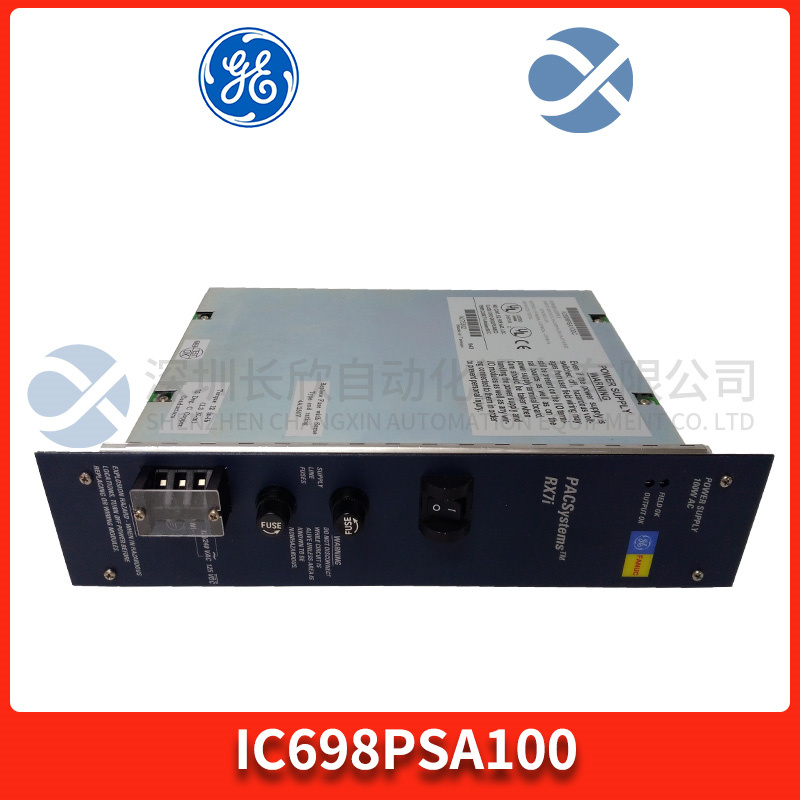

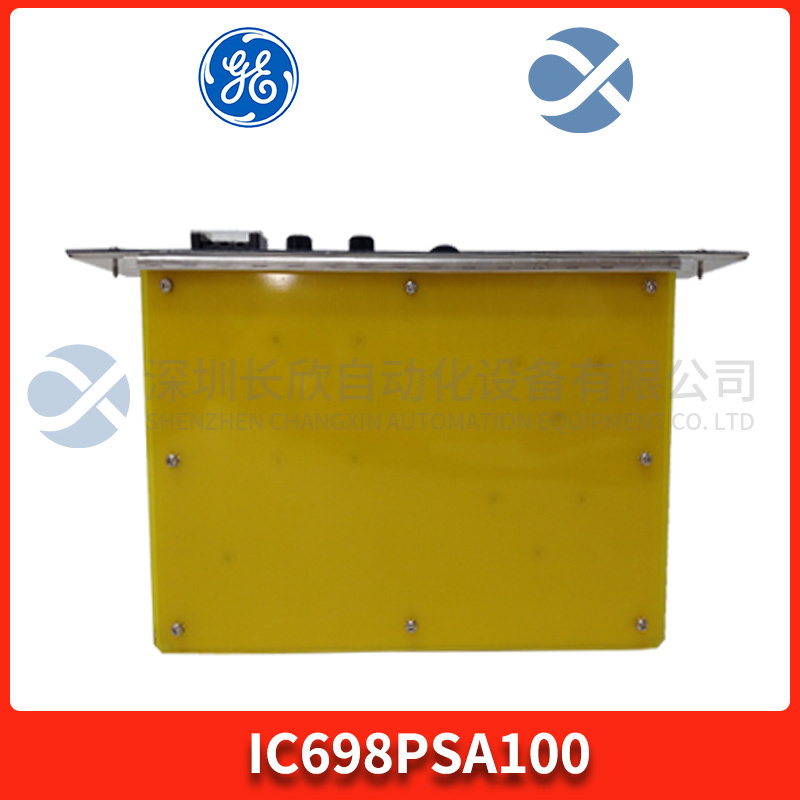

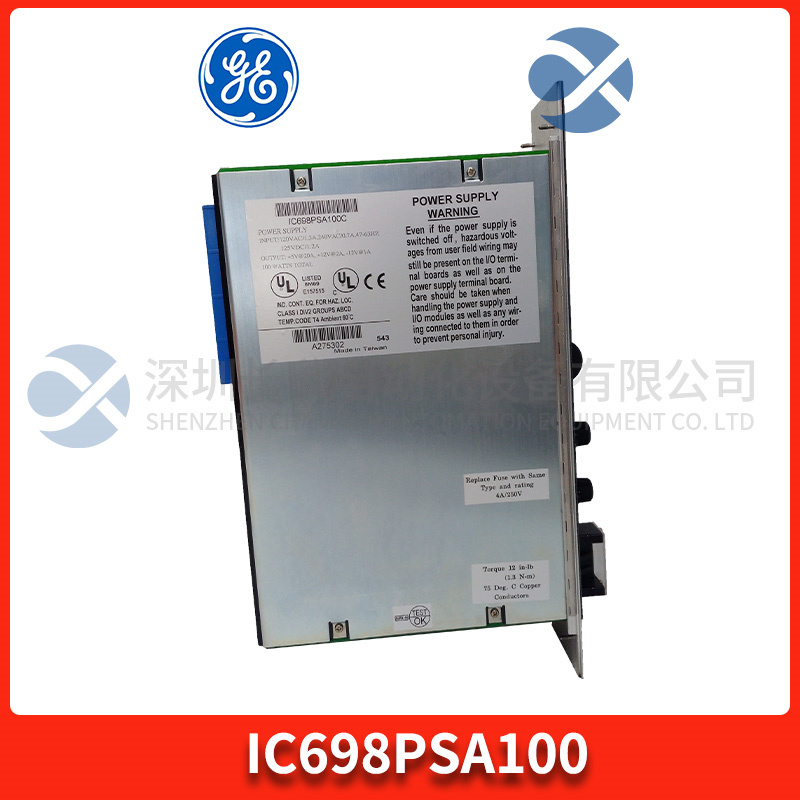

The IC698PSA100 is a multifunctional power module 1.

The IC698PSA100 is manufactured by Emerson Automation and was formerly part of GE Intelligence Platform (GE IP). The PSU is installed in the leftmost slot of any RX7i standard rack, specifically slot 0. It is equipped with screw-type input terminals and is designed for input voltage ranges from 85 to 264

VAC(nominal voltage 120/240 VAC), frequencies 47 to 63 Hz and 100 to 150VDC(nominal voltage 125)

VDC). An AWG#16(1.3 mm2) solid or stranded copper wire with an insulation class of 75°C(167°F) must be used for external power connections. For ground connections, use No. 12 (3.3) with an insulation class of 75°C(167°F)

mm2) Copper wire 2.

Specifications of the C698PSA100 include 1:

The maximum output power is 100 watts.

The output voltage is 4.875 to 5.25 volts, 0-20 amps, 5.1 VDC; 11.64 to 12.6 volts, 0-2 amps, nominal +12 volts DC; -12.60 to -11.64 volts, 0-1 amperage, nominal -12 volts DC.

The overvoltage protection voltage is 5.7 to 6.7 volts.

The overcurrent protection current is 2.5 amps (+12 VDC at output) and 3.5 amps (-12 VDC at output).

The crossing time is 15 milliseconds.

The hold time is 5 milliseconds
