IC698CRE040-HN GE processor module

　　Product Description

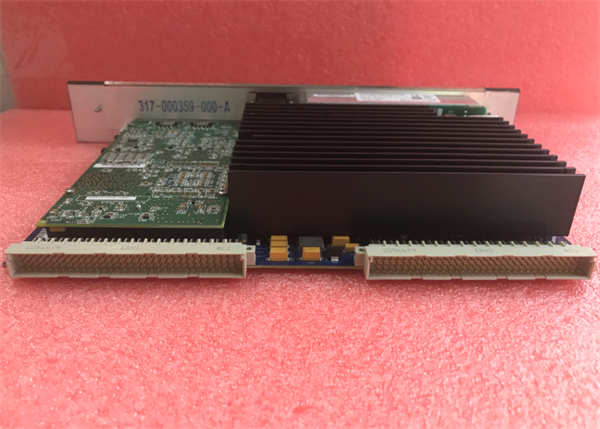

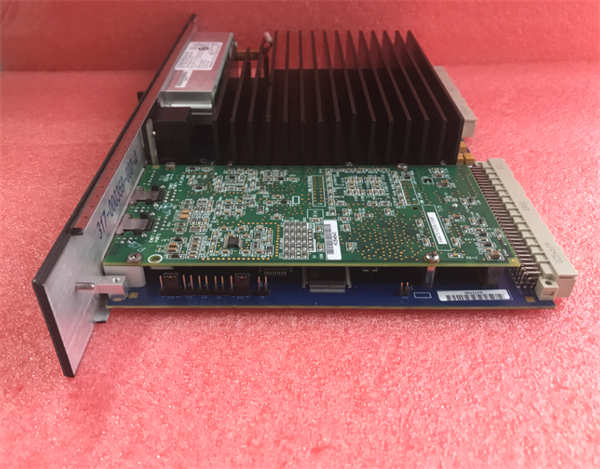

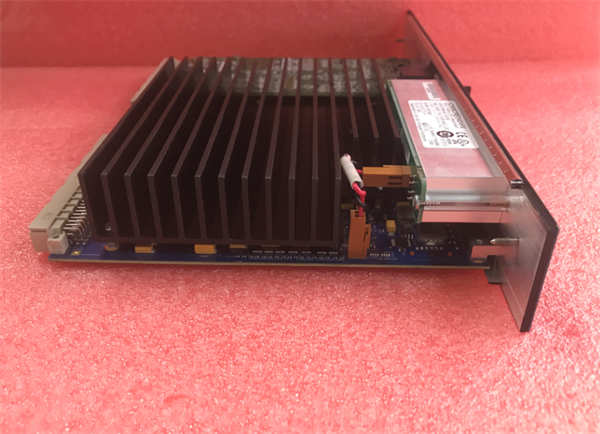

　　GE IC698CRE040-HN processor module

　　Function:

　　It is the core component of the IC698 control system

　　Responsible for executing control programs

　　Has strong data processing capabilities and reliability

　　Usage:

　　Can be used for various industrial control applications,such as process control,factory automation,building automation,etc

　　Suitable for applications that require high performance and reliability

　　Features:

　　Using Intel Pentium M processor

　　Main frequency up to 1.8 GHz

　　Supports 1 GB of memory

　　Featuring redundant design to improve reliability

　　Product Description:

　　The GE IC698CRE040-HN processor module is a powerful processor module designed to meet the needs of various industrial control applications.It uses an Intel Pentium M processor with a main frequency of up to 1.8 GHz and strong performance.The board supports 1 GB of memory,which can meet the needs of large applications.The board also has redundant design,ensuring that it can continue to operate even in the event of a malfunction.

　　GE Fanuc/Emerson Automation IC698CRE040 is a PACSystem RX7i processor module.This processor has 64MB of RAM and 64MB of non-volatile user memory,with a typical scan rate of 0.024ms per 1000 Boolean contacts/coils.This processor has two(2)serial communication,one(1)station manager port,and two(2)Ethernet interfaces.

　　IC698CRE040 is a GE Fanuc/Emerson Automation Central Processing Unit(CPU).This CPU supports high availability or redundant configurations.This module is part of the PACSystem RX7i Programmable Automation Controller(PAC)platform.This CPU unit has relatively high allocation of random access memory(RAM)and non-volatile memory,each with a capacity of 64MB.In addition,it is equipped with a high-speed microprocessor,a clock speed of 1.8 GHz,and a scanning rate of 0.024ms per 1000 Boolean contacts/coils.

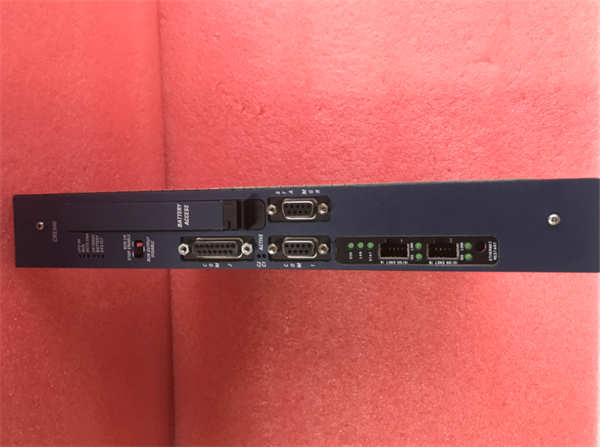

　　IC698CRE040 provides embedded communication ports,such as two(2)serial communication ports that support RS232 and RS485 communication standards,and two(2)RJ45 ports for Ethernet connection,supporting 10/100 Mbps half/full duplex transmission rate,with automatic sensing capability.The CPU also provides one(1)station manager port.The protocols supported by serial ports include Modbus RTU Slave,SNP,and Serial I/O.

　　In addition,the built-in Ethernet interface allows for data exchange using Ethernet Global Data(EGD),TCP/IP communication services using SRTP,support for SRTP channels,Modbus/TCP servers and Modbus/TCP clients,complete programming and configuration services,and time synchronization with SNTP time servers on the Ethernet(when used with version 5.00 or higher CPU modules).The Ethernet port supports up to 16 web servers and FTP connections.

　　This CPU supports programming languages such as ladder diagrams,C,structured text,and functional block diagrams.This CPU can download up to 512 blocks,with a maximum size of 128KB per block.

　　IC698CRE040 is configured using the Profile Machine Edition application software or Logic Developer programming software.

　　The GE Fanuc IC698CRE040 CPU is a CPU that supports Ethernet ports and is compatible with Rx7i PAC systems.The processing speed of the CPU is 1.8 GHz and the memory is 64 MB.Its rated working voltage is+5 volts DC and rated current is 6.8 amperes.It supports floating-point data and fast operations.The CPU module is designed with three serial ports,compatible with different serial port protocols,including MODBUS RTU slave,SNP,and serial I/O protocols.For embedded communication,the IC698CRE040 CPU uses RS-232,Ethernet,and RS-485 interfaces.The CPU can be programmed using either Profile Machine Edition or Logic Developer programming software.It can handle machine control and material handling applications.It communicates with I/O modules and other modules using the VME 64 standard format.

　　The GE Fanuc IC698CRE040 CPU is equipped with a Pentium M microprocessor with backup redundancy.The IC698CRE040 CPU can be used to monitor data by using 16 web servers and other FTP connections.The CPU comes with a built-in clock powered by a battery.The IC698CRE040 CPU can be upgraded to the latest firmware version using RS 232 and 485 ports.The CPU can detect situations of low battery power and issue alerts to operators for different events.The CPU module has an open housing and needs to be installed in a dry and air pollution-free environment.

　　The GE IC698CRE040-HN processor module consists of the following components:

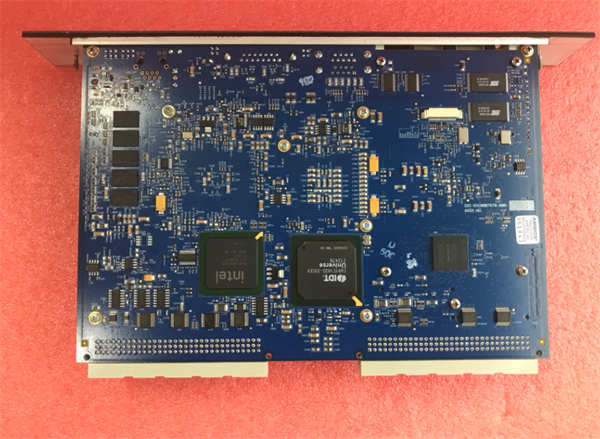

　　CPU board

　　Substrate

　　Power module

　　The CPU board is responsible for executing control programs.The substrate provides I/O interfaces and interfaces for connecting other modules.The power module provides power to the board.

　　Product parameters:

　　Processor:Intel Pentium M

　　Main frequency:1.8 GHz

　　Memory:1 GB

　　I/O interface:2 serial ports and 1 Ethernet port

　　Product specifications:

　　Size:233 x 160mm

　　Weight:500g

　　Application field:

　　Process control

　　Factory automation

　　Building automation

　　Electricity

　　Oil and natural gas

　　Chemical industry

　　Metallurgy

　　Water treatment

　　Food and Beverages
