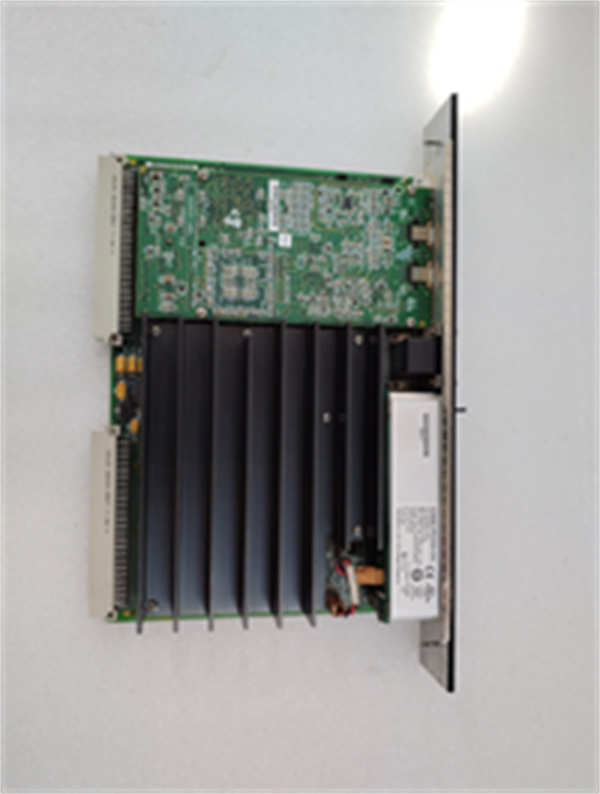

IC698CPE030 GE controller

　　Product Description

　　IC698CPE030 GE controller

　　Series

　　GE RX7i PACSystems series

　　Function

　　As the core component of industrial control systems,execute control programs

　　Purpose

　　Industrial automation control system

　　Power system

　　Transportation

　　Petrochemical industry

　　Metallurgy

　　Features

　　High performance:based on Intel®Core™I7-6820EQ processor

　　High reliability:adopting redundant design

　　Easy to maintain:supports hot swapping

　　Product Description

　　IC698CPE030 is a PACSystems RX7i controller.It is manufactured by Emerson Automation,previously by GE Intelligent Platform(GE IP).The main feature of this controller is two(2)Ethernet communication ports;One(1)RS232 port;One(1)RS485 port and one(1)station manager port.It has a 600MHz Pentium M microprocessor,as well as 64 MB RAM and 64 MB flash memory.It can accommodate up to 32K bit discrete I/O and 32K word analog I/O.The supported Ethernet protocols include SRTP,Modbus TCP server and client,Ethernet Global Data(EGD),while the supported serial protocols include Modbus RTU Slave,SNP,and serial I/O.It also has a built-in network server and FTP,allowing up to 16 connections at a time.

　　IC698CPE030 is one of the most advanced central processing units(CPUs)in the PACSystem RX7i of programmable automation controllers(PACs).This CPU is designed to meet the modern automation,connectivity,and integration requirements of the industry.PACSystem RX7i was previously manufactured by GE Intelligent Platform(GE IP),but was recently acquired by Emerson Automation,and PACSystem RX7i is now part of the latter.

　　The IC698CPE030 processor is equipped with a computer grade microprocessor,namely a 600MHz Pentium M microprocessor,with 64 MB of user memory and 64 MB of user flash memory.Its Boolean execution speed is 0.069ms per 1000 Boolean contacts/coils.This CPU can accommodate up to 32K bit discrete I/O and 32K word analog I/O.Up to 512 program blocks can be downloaded to the CPU,with each block having a maximum of 128 KB of memory.

　　IC698CPE030 also has two(2)Ethernet communication ports that can automatically sense network transmission speed and can be configured for half duplex and full duplex operation modes.The built-in network server and File Transfer Protocol(FTP)function can be accessed through these Ethernet ports,allowing users to remotely monitor and configure processors.In addition to the built-in Ethernet port,

　　The CPU also has one(1)RS232 port;One(1)RS485 port and one(1)station manager port.These communication interfaces support SRTP,Modbus TCP servers and clients,Ethernet Global Data(EGD)for Ethernet based communication,and Modbus RTU slaves,SNPs,and serial I/O for serial communication.

　　The GE Fanuc IC698CPE030 PACSystem Rx7i CPU is a Pentium processor suitable for the GE Rx7i system.The IC698CPE030 CPU,like all Rx7i CPUs,is installed on an Rx7i I/O rack and is equipped with VME64 infrastructure,which can adapt to both new and old VME embedded technologies and has fast throughput.The IC698CPE030 CPU is equipped with a 600 MHz Pentium M processor and 64 MB of battery powered processor memory,as well as 64 MB of battery powered user flash memory for application and data storage.The IC698CPE030 processor can perform floating-point mathematics and Boolean logic functions,and can program advanced user parameters using ladder diagrams,structured text,function block diagrams,and C programming language.

　　The GE Fanuc IC698CPE030 CPU supports series 90-70 discrete and analog I/O modules,communication modules,VME modules supported by series 90-70,as well as various programmers and HMI modules.The rated voltage of the IC698CPE030 CPU is+5,+12,or-12 volts DC,and the rated current of the backplane is 3.4 amperes at 5 volts DC.The IC698CPE030 CPU has an isolated RS-485 serial port,an RS-232 serial port,and a dedicated RS-232 Ethernet website manager port.The IC698CPE030 CPU also has dual embedded Ethernet(10/100 MB)ports,providing Ethernet Global Data(EGD)data exchange,TCP/IP high-speed data transmission,supporting Modbus/TCP servers,Modbus/TCP clients,and SRTP channel protocols,and can communicate with programmers and HMI devices.

　　The IC698CPE030 GE controller adopts a modular design,which is easy to install.It has the following structure:

　　CPU module:includes processor,memory,and cache

　　I/O module:includes various I/O interfaces

　　Product parameters

　　Processor:Intel®Core™I7-6820EQ

　　Main frequency:2.7 GHz

　　Memory:Up to 32 GB DDR4 ECC memory

　　Storage:Up to 256 GB solid-state drive

　　I/O interfaces:including 2 GbE interfaces,4 USB 3.0 interfaces,1 RS-232 interface,and 1 VGA interface

　　Product specifications

　　Dimensions:233mm x 102mm x 41mm

　　Weight:1.2kg

　　Application field

　　The IC698CPE030 GE controller can be widely used in industrial automation control systems,power systems,transportation,petrochemical,metallurgical and other fields.

　　Here are some specific application examples:

　　In industrial automation control systems,used to control production lines,robots,and other equipment

　　In the power system,used to control power plants,substations,and distribution networks

　　In the field of transportation,used to control railway,aviation,and road traffic

　　In the petrochemical industry,it is used to control the transportation of refineries,chemical plants,and petrochemical products

　　In the metallurgical industry,it is used to control steel plants,aluminum plants,and copper plants
