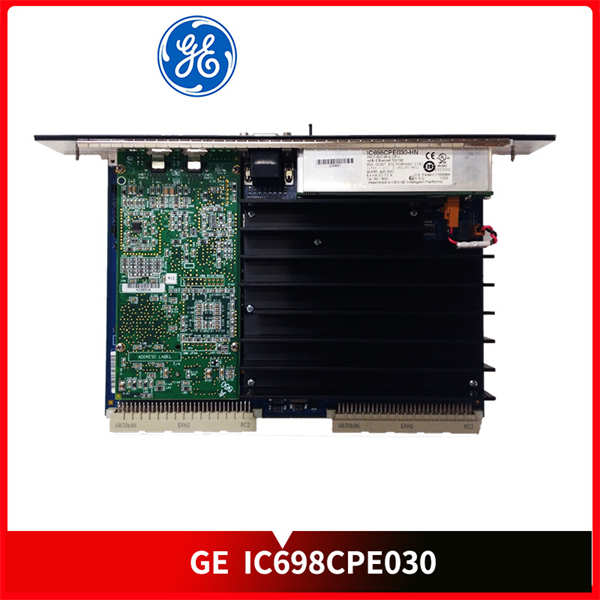

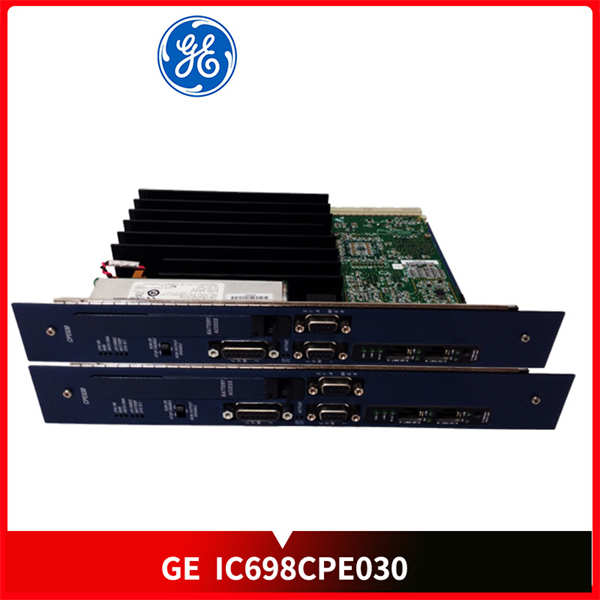

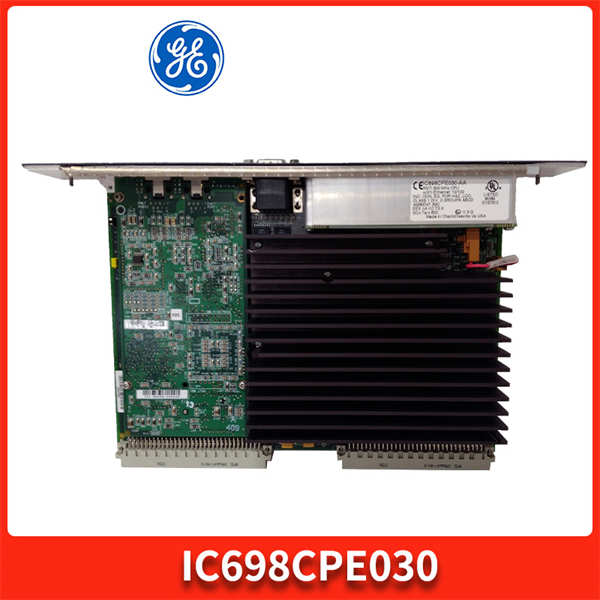

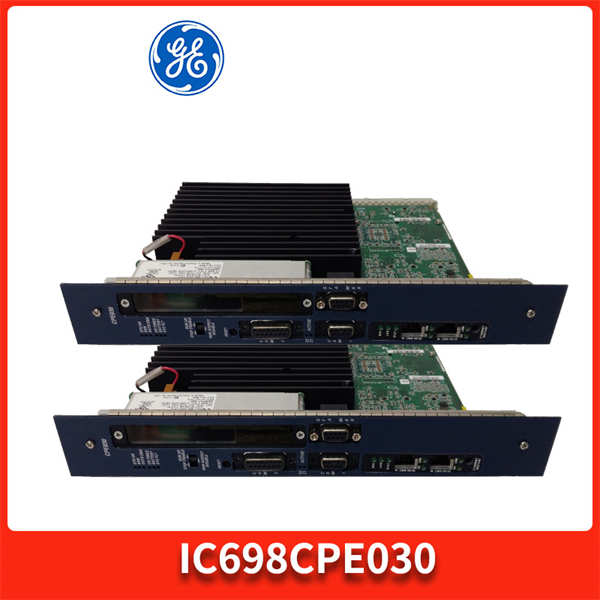

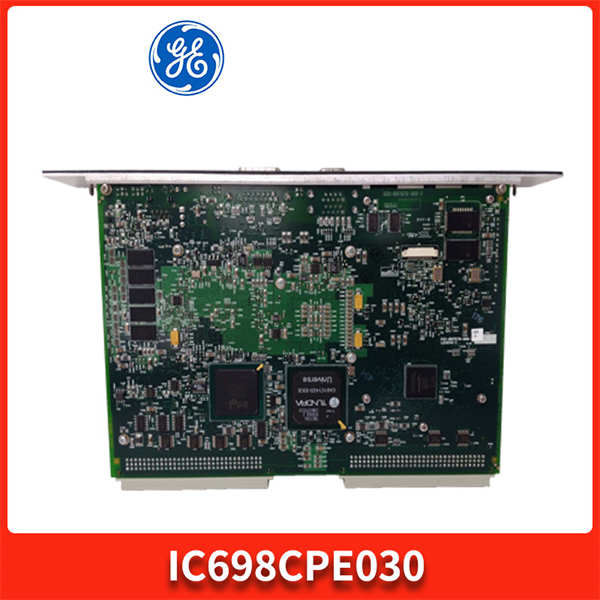

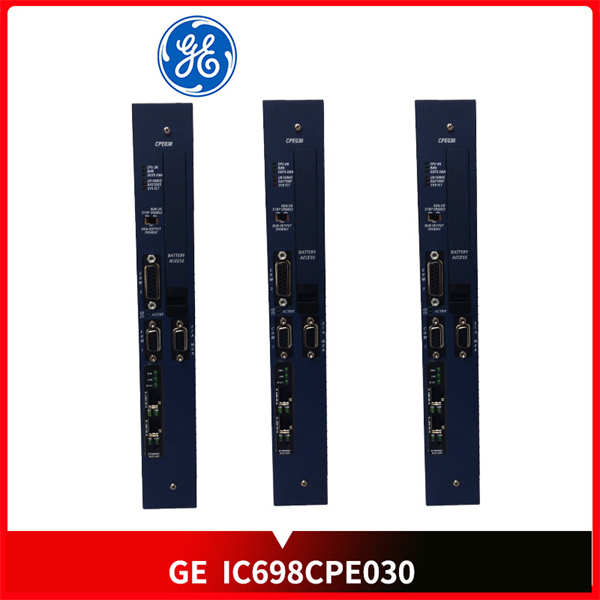

IC698CPE030 GE Central Processing Unit (CPU)

Product Description:

The IC698CPE030 is a high-performance central processing unit (CPU) designed for the GE PACSystem RX7i programmable automation controller (PAC). It is a key component in industrial automation and control systems, responsible for executing control logic, processing data, and managing communications.

IC698CPE030 GE Central Processing Unit (CPU)

Product Parameters and Specifications:

Processor: 600 MHz Pentium-M microprocessor.

Memory: 64 MB of user memory and 64 MB of user flash memory.

Communication Interfaces: Two ethernet ports, one RS232 port, one RS485 port, and one station manager port. Supports protocols such as SRTP, Modbus TCP server and client, Ethernet Global Data (EGD), Modbus RTU slave, SNP, and serial I/O.

I/O Capacity: Can accommodate up to 32 K bits of discrete I/O and 32 K words of analog I/O.

Program Capacity: Supports downloading of up to 512 program blocks, with each block having a maximum size of 128 KB.

Series:

The IC698CPE030 belongs to the PACSystem RX7i family of CPUs from GE, which offers a range of processors suitable for different industrial automation and control applications.

Features:

High Performance: With a 600 MHz Pentium-M microprocessor, the IC698CPE030 offers powerful processing capabilities.

Versatile Communications: Features multiple communication interfaces, including ethernet, RS232, and RS485, allowing seamless integration with other devices and systems.

Large Memory Capacity: With 64 MB of user memory and flash memory, it can store ample amounts of data and programs.

Fast Execution Speeds: Demonstrates fast execution speeds of 0.069 milliseconds per 1000 boolean contacts/coils, ensuring responsive and efficient control.

Extensive I/O Support: Can accommodate a large number of discrete and analog I/O points, making it suitable for complex industrial control applications.

Functions:

Control and Automation: Serves as the brain of the industrial automation system, executing control logic and managing various processes and equipment.

Data Processing: Handles the collection, storage, and manipulation of data generated by sensors and other devices.

Communication Management: Manages and facilitates data exchange and communication between different devices, controllers, and monitoring systems.

IC698CPE030 GE Central Processing Unit (CPU)

Applications and Uses:

The IC698CPE030 is widely used in various industrial automation and control applications, including:

Manufacturing: In production lines, it controls and manages machines and processes, ensuring product quality and efficiency.

Process Control: In chemical, oil and gas, and other process industries, it monitors and controls critical processes, ensuring safe and efficient operations.

Infrastructure: In building automation, transportation systems, and utilities, it integrates and manages various systems, enhancing efficiency and reliability.

Application Domains:

Manufacturing Automation: Wherever precise and reliable control of manufacturing processes is required.

Process Automation: In industries that involve complex processes and require tight control and monitoring.

Infrastructure Management: In buildings, transportation systems, and utilities where integrated management of multiple systems is crucial.
