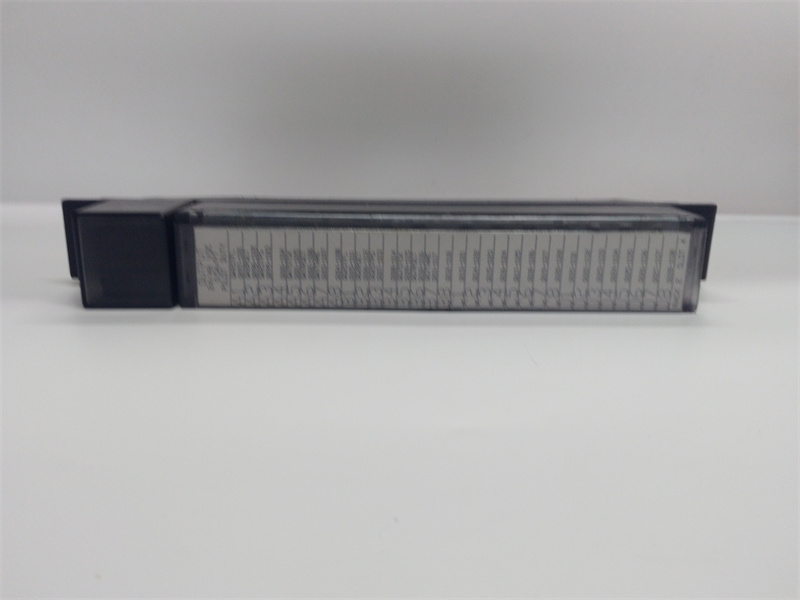

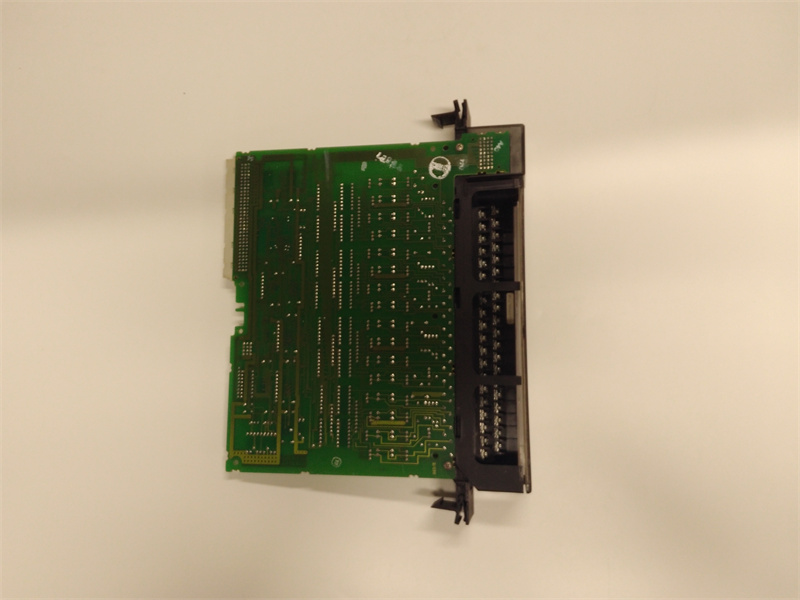

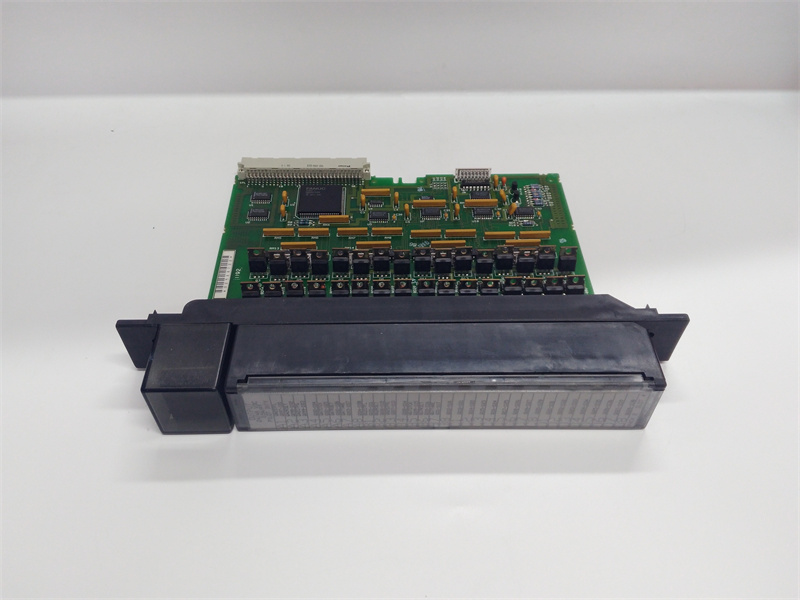

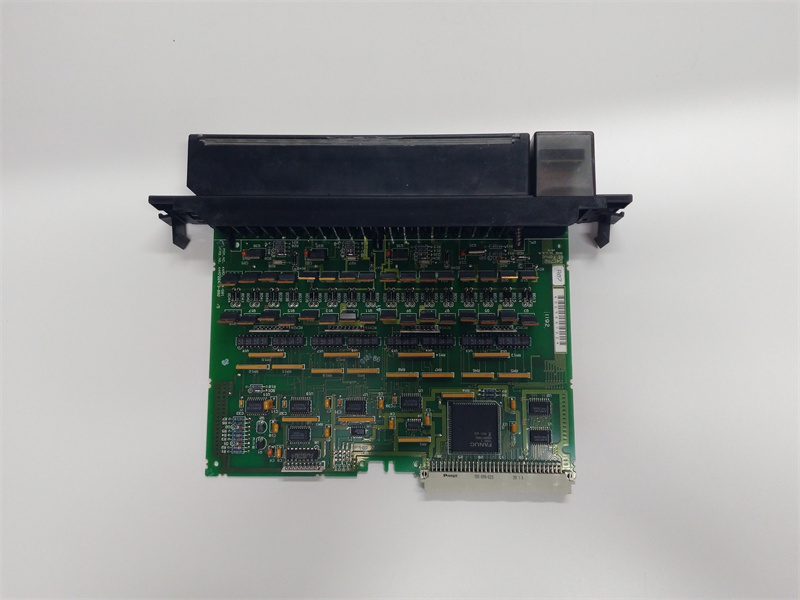

IC697MDL750 GE

Output signal range 20 – 60 VDC
Number of outputs 32
Maximum inrush current 10 A for 20 ms
Nominal output voltage 24 / 48 VDC
Isolation voltage 1500 Volts
Output current per channel 0.5 mA
Inrush current 10 Amps (maximum) for 20 milliseconds
On response time, maximum 1 ms
Output current per module 2:00 AM
Response time-on 1 millisecond (maximum)
Off response time, maximum 1 ms
Current draw 0.25 A
Response time-off 1 millisecond (maximum)
Output Voltage Drop 1.0 volt, maximum
Isolation, any output to Backplane (optical) 1500 VAC
Output voltage drop 1 Volt/2 Ohms (maximum)
Off-state Leakage 1 mA maximum
Isolation, Group to Group 500 VAC
Product Lifecycle Status Discontinued / Obsolete
Add to quote
Category:
Contact Us WhatsApp / Wechat：+86 15359273797 / +86 18150087953
Phone：+86 15359273797 / +86 18150087953
Email：sales@cxplcmro.com

Description

Brand GE Fanuc
Series Series 90-70
Series Series 90-70
Manufacturer GE Fanuc; Emerson Automation (Current)
Product Description Discrete output module
Part Number IC697MDL750
Product Description Discrete output module
No. of output groups Four (4)
No of Channels Thirty-Two (32)
Rated voltage 24 to 48 Volts DC
Output current 0.5 Amps per point, 2 Amps per group
No. of output groups Four (4)
Channels per group Eight (8)
Output voltage range 20 to 60 Volts DC
No. of channels per group Eight (8)
Isolation: 1500 volts between field side and logic side; 50 Volts between groups
Output voltage range 20-60 VDC
Wiring configuration Positive Logic
Required current 0.25 Amps
Output current 0.5 Amperes per point; 2 Amperes per module
Output signal range 20 – 60 VDC
Number of outputs 32
Maximum inrush current 10 A for 20 ms
Nominal output voltage 24 / 48 VDC
Isolation voltage 1500 Volts
Output current per channel 0.5 mA
Inrush current 10 Amps (maximum) for 20 milliseconds
On response time, maximum 1 ms
Output current per module 2:00 AM
Response time-on 1 millisecond (maximum)
Off response time, maximum 1 ms
Current draw 0.25 A
Response time-off 1 millisecond (maximum)
Output Voltage Drop 1.0 volt, maximum
Isolation, any output to Backplane (optical) 1500 VAC
Output voltage drop 1 Volt/2 Ohms (maximum)
Off-state Leakage 1 mA maximum
Isolation, Group to Group 500 VAC
Product Lifecycle Status Discontinued / Obsolete
