Description

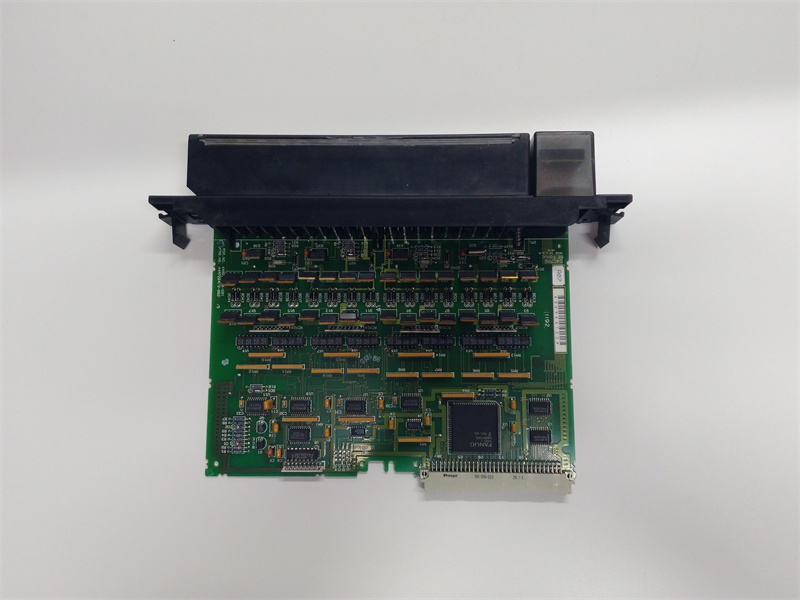

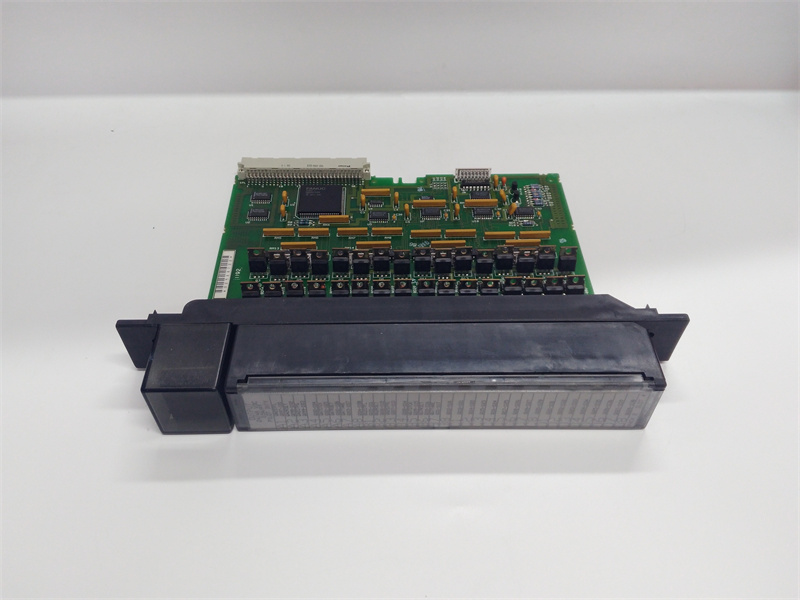

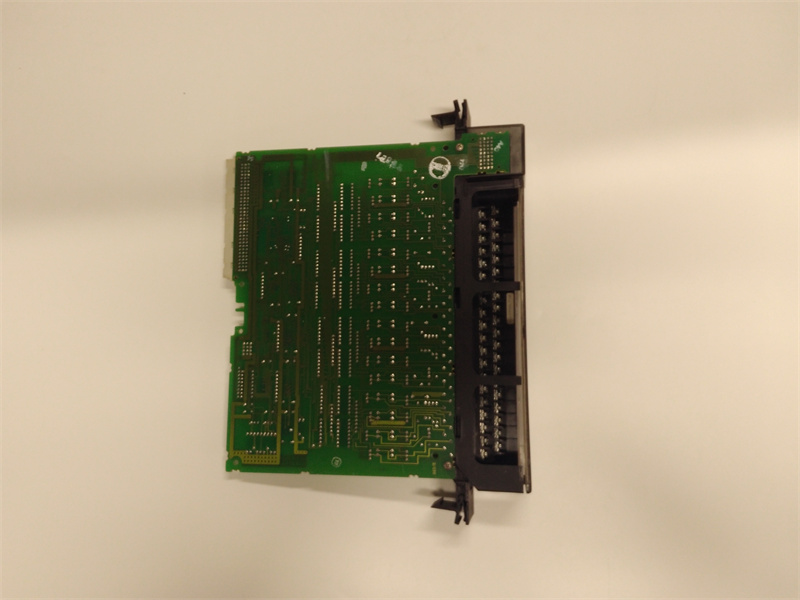

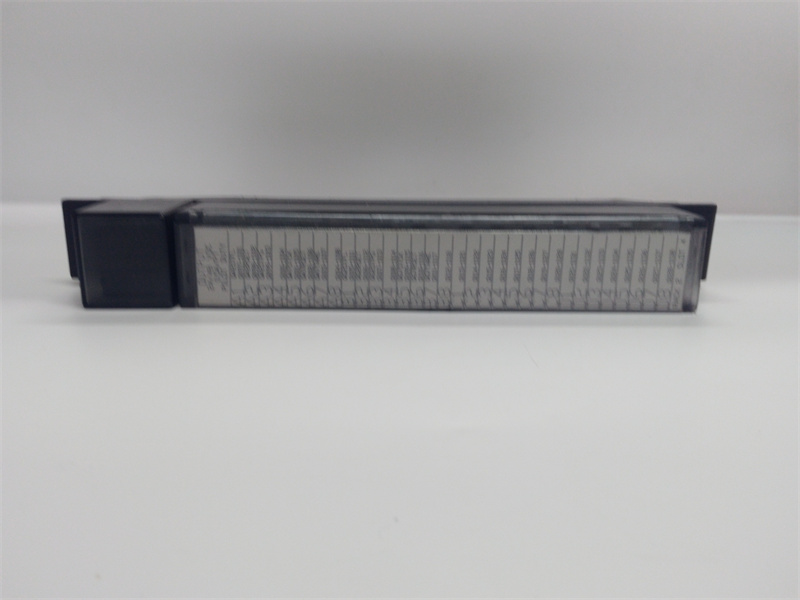

Technical Specifications for IC697MDL750
| Brand | GE Fanuc |
| Series | Series 90-70 |
| Series | Series 90-70 |
| Manufacturer | GE Fanuc; Emerson Automation (Current) |
| Product Description | Discrete output module |
| Part Number | IC697MDL750 |
| Product Description | Discrete output module |
| No. of output groups | Four (4) |
| No of Channels | Thirty-Two (32) |
| Rated voltage | 24 to 48 Volts DC |
| Output current | 0.5 Amps per point, 2 Amps per group |
| No. of output groups | Four (4) |
| Channels per group | Eight (8) |
| Output voltage range | 20 to 60 Volts DC |
| No. of channels per group | Eight (8) |
| Isolation: | 1500 volts between field side and logic side; 50 Volts between groups |
| Output voltage range | 20-60 VDC |
| Wiring configuration | Positive Logic |
| Required current | 0.25 Amps |
| Output current | 0.5 Amperes per point; 2 Amperes per module |
| Output signal range | 20 – 60 VDC |
| Number of outputs | 32 |
| Maximum inrush current | 10 A for 20 ms |
| Nominal output voltage | 24 / 48 VDC |
| Isolation voltage | 1500 Volts |
| Output current per channel | 0.5 mA |
| Inrush current | 10 Amps (maximum) for 20 milliseconds |
| On response time, maximum | 1 ms |
| Output current per module | 2:00 AM |
| Response time-on | 1 millisecond (maximum) |
| Off response time, maximum | 1 ms |
| Current draw | 0.25 A |
| Response time-off | 1 millisecond (maximum) |
| Output Voltage Drop | 1.0 volt, maximum |
| Isolation, any output to Backplane (optical) | 1500 VAC |
| Output voltage drop | 1 Volt/2 Ohms (maximum) |
| Off-state Leakage | 1 mA maximum |
| Isolation, Group to Group | 500 VAC |
| Product Lifecycle Status | Discontinued / Obsolete |
