Description
| Brand | GE Fanuc |
| Product Description | 9-slot , rear mount, rack |
| Manufacturer | GE Fanuc (Former); Emerson Automation (Current) |
| Series | Series 90-70 |
| No. of I/O slots | 9 slot plus power supply |
| Series | Series 90-70 |
| Part Number | IC697CHS790 |
| Part Number | IC697CHS790 |
| Dimensions | 11.15H x 19W x 7.5D (283mm x 483mm x 190mm) |

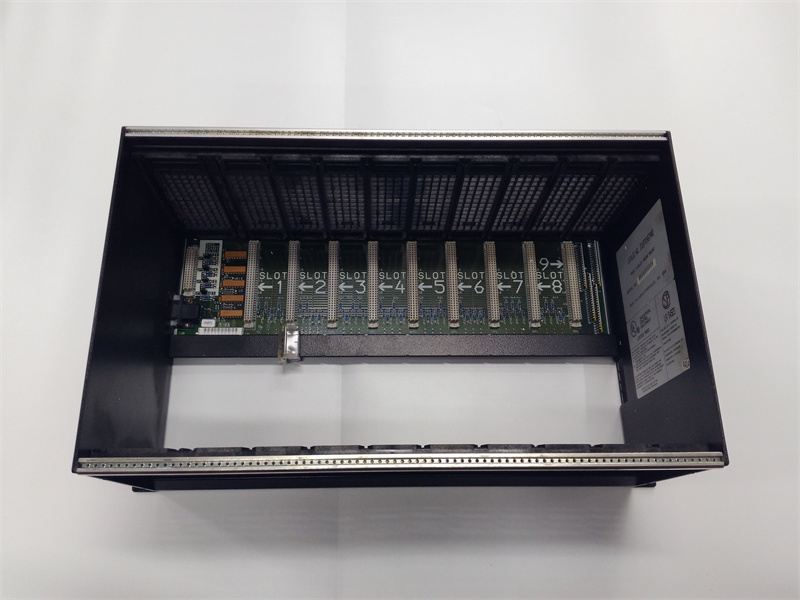

| Description | Programmable controller mounting rack |
| Voltage | 5 Volts DC |
| Product Description | Standard PLC Rack |
| Mounting | Panel mounting |
| Supported mounting | Rear and Front mounting |
| VME | System designed to support the VME standard C.1 |
| Current | 20 Amperes |
| Dimension | 7.5 x 19 x 11.5 inches |
| Rear mounting | 10″ (255 mm) enclosure |
| Rack extension | Supported |
| Front Mounting | 19″ Standard rack |
| Supported | Two (2) |
| Standard | VME |
| Maximum 5 Volt Current | 20 amps (100 watt 120/240 VAC or 125 VDC power supply) 11 amps (55 watt 120/240 VAC or 125 VDC power supply) 18 amps (90 watt 24 VDC power supply) 18 amps (90 watt 48 VDC power supply) |
| Power supply extension cable | IC697CBL700 |
| Current Required from I/O Bus | 0.5 amps |
| Number of Slots | 9 |
| I/O References | User configurable without the use of module jumpers or DIP switches |
| Enclosure Depth | 10 inches |
| Rack Identification | Four (4) jumpers behind rack power supply |
| Dimensions | 11.15″ (H) 19.00″ (W) 7.5″ (D) or 283mm (H) x 483mm (W) x 190mm (D) |
| VME System | VME standard C.1 |
| Compatible modules | All IC697 modules |
| Product lifecycle | Discontinued    |
