Product Description:

The IC694ALG222 is an input module previously offered by GE Intelligent Platforms and now part of Emerson Automation’s PACSystem RX3i platform. This module supports both single-ended and differential wiring configurations, determining the number of available voltage input channels. It can be used in a range of industrial automation and control applications.

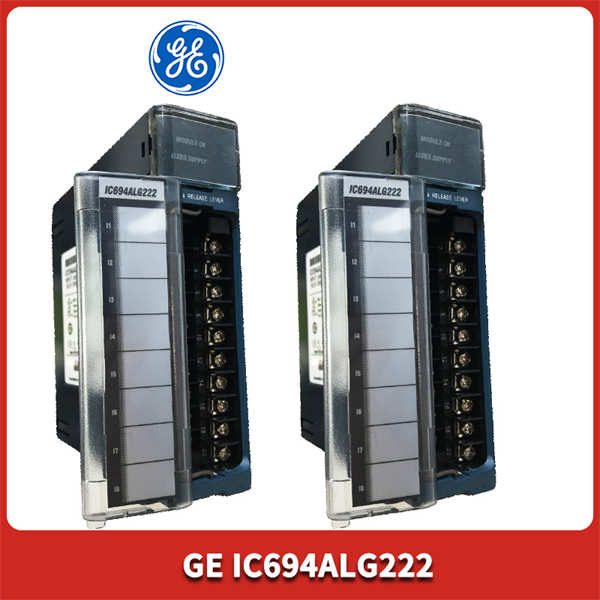

IC694ALG222 GE Input Module

Product Parameters and Specifications:

Input Configurations: Supports up to eight voltage input channels in differential wiring mode and up to sixteen channels in single-ended wiring mode.

Voltage Range: Accepts 0 to 10 V (single polarity) and -10 to +10 V (dual polarity) voltage signals.

Resolution: Offers a resolution of 2.5 mV (1 LSB = 2.5 mV) for 0 to 10 VDC inputs and 5 mV (1 LSB = 5 mV) for -10 to +10 V inputs.

Update Rate: All 16 single-ended channels have an update rate of 6 milliseconds, while all 8 differential channels have an update rate of 3 milliseconds.

Measurement Accuracy: Measures with an accuracy of +/-10.25% of full scale at 25°C (77°F) and +/-0.5% of full scale within the specified operating temperature range.

Series:

The IC694ALG222 belongs to the PACSystem RX3i family of products from Emerson Automation, which offers a range of modules and components for industrial automation and control systems.

Features:

Flexible Wiring Configurations: Supports both single-ended and differential wiring, providing flexibility in system design and deployment.

High Measurement Accuracy: Offers precise voltage measurement with low error margins, ensuring reliable data acquisition and control.

Fast Update Rates: Ensures timely data acquisition and response, critical for real-time control and monitoring applications.

Wide Voltage Range: Accommodates a wide range of voltage signals, facilitating integration with various sensors and devices.

Functions:

Voltage Measurement: Measures voltage signals from sensors and devices, converting them into digital data for processing and control.

Signal Conditioning: Conditions the incoming signals, improving their quality and reliability before being processed by the control system.

Data Acquisition: Acquires and processes data from multiple input channels, providing valuable insights and feedback for industrial automation and control systems.

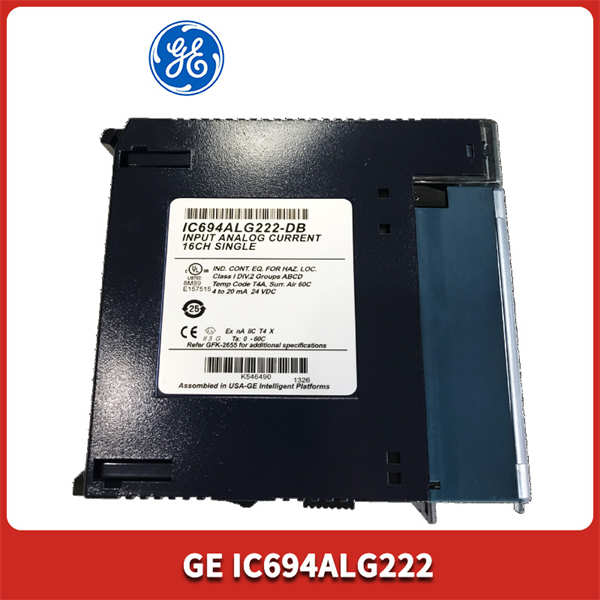

IC694ALG222 GE Input Module

Applications and Uses:

The IC694ALG222 is suitable for use in a wide range of industrial automation and control applications, including:

Manufacturing: In production lines where precise measurement and control of voltage signals are crucial for ensuring product quality and process efficiency.

Energy Management: In power generation, distribution, and transmission systems where monitoring and controlling voltage levels are essential for safe and efficient energy management.

Building Automation: In smart buildings where voltage measurement and control play a pivotal role in managing lighting, heating, ventilation, and other building systems.

Process Control: In industrial processes where precise voltage measurement and control are necessary for maintaining process stability and optimizing production outputs.

Application Domains:

Industrial Automation: Where precise measurement and control of voltage signals are essential for efficient and reliable operation of industrial machines and systems.

Energy and Utilities: In power generation, transmission, and distribution systems where voltage monitoring and control are critical for ensuring the stability and efficiency of the energy grid.

Building Management: In smart buildings and facilities where voltage measurement and control play a key role in managing building systems and enhancing occupant comfort and safety.
