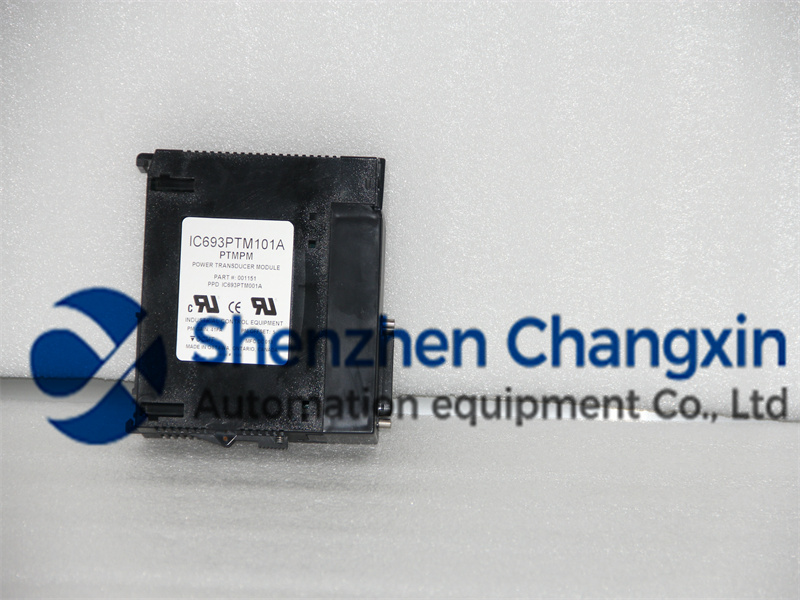

IC693PTM101A. ALLEN BRADLEY

Description

IC693PTM101A. ALLEN BRADLEY

Technical Specifications for IC693PTM101
Brand GE Fanuc
Series Series 90-30
Manufacturer GE Fanuc (Former); Emerson Automation (Current)
Part Number IC663PTM101
Series Series 90-30
Product Description Power Transducer Module
Description Power Transducer module
Voltage 10-120 Volts AC
Mounting Any Series 90-30 Baseplate
Compatible Series 90-30 CPU Any CPU module
Current 0-7.5 Amperes
Frequency 35-70 Hertz
Operating modes Single mode; 3-phase mode; Synchro monitor mode
Dissipation 4 Watts
Module Components: Processing module; Interface board; Interface cable
Data calculation speed 20 ms at 50 hertz, 16.67 ms at 60 Hertz
CPU Registers %I, %Q, %AI, and %AQ memory
Backplane isolation Voltage 1500 Volts
Memory allocation %I 16 bits; %Q 16 bits; %AI 25 words; %AQ 2 words
Product Lifecycle Status* Discontinued/Obsolete
Backplane Power Consumption 5V @ 400mA max. (from 90-30 backplane)
Total Power Dissipation: 4W max
Measured Parameters Voltage, Current, kW, kVAR, kVA, kWH, kVARH, kVAH Power factor, Frequency, Phase
Resolution 14-bit
Interface cable IC693CBL340
*The GE Fanuc IC693PTM101 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement IC693PTM101 units instead of migration.

About IC693PTM101
The IC693PTM101 is a Power Transducer Module that is part of the Series 90-30 platform of Emerson Automation, formerly by GE Fanuc Automation. This module is mainly utilized to implement electrical consumption analysis and monitoring voltage between an electrical generator and the distribution grid. It is a highly intelligent device that can be programmed to operate in Single mode, 3-phase mode, and Synchro monitor mode to perform a variety of functions. This module is mounted to a Serie 90-30 baseplate. It is designed to be connected to current and potential transformers for data calculation. This module is composed of three (3) parts, specifically, the Processing module, Interface board, and interface cable. It can be used in Wye or Delta type 3-phase power systems or with single-phase power systems. The IC693PTM101 can be used to perform accurate measurements of Root Mean Square (RMS) values of voltage and current as well as calculate power, power factor, frequency, energy, and total demand within a 15-minute period along with the 3-phase connections. Essentially, this module can cover functionalities of a Power Meter, however, with the added operating modes and functions plus the capability to be directly connected to a PLC, making data integration simplified and can be performed with ease. This module can also perform data reporting and fault monitoring. It can also be used for generator – grip synchronization feature and perform demand penalty cost reduction and load shedding requirements. The IC693PTM101 is compatible with all types of Series 90-30 PLC CPUs. The processor module may be installed to any baseplate whether CPU, Expansion or remote baseplate, providing users maximum flexibility and possibly eliminating long cable runs.
