IC693DNM200 GE

Description

• GE IC693DNM200 Product Information
• Product Name:

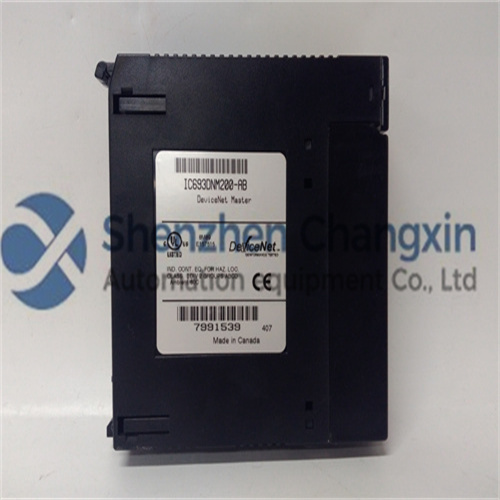

  GE IC693DNM200 DeviceNet Master Module
  Product Description:
• The GE IC693DNM200 is a DeviceNet master module designed for use with GE’s Series 90-30 Programmable Logic Controller (PLC) systems. This module enables communication with other DeviceNet devices, allowing the GE PLC system to interface and control various devices and sensors across the DeviceNet network.
• The IC693DNM200 provides a robust and reliable solution for industrial automation applications that require DeviceNet communication. It supports the full range of DeviceNet protocols and data rates, ensuring compatibility with a wide range of industrial devices.
• Product Parameters:
• Here are some key parameters of the GE IC693DNM200 module:
• Communication Protocol: Supports DeviceNet protocol, a common communication protocol used in industrial automation systems.
  Data Rates: Supports all data rates of the DeviceNet protocol, including 125K, 250K, and 500K baud rates.
  I/O Capacity: Can handle a maximum of 255 bytes of input data and 255 bytes of output data per slave device. The master module can handle a maximum of 3972 bytes of input data and 3972 bytes of output data.
  Number of Nodes: Supports a maximum number of nodes (devices) on the DeviceNet network, depending on the specific configuration and requirements.
  Power Supply: Requires a suitable power supply to operate the module, typically provided by the PLC system or an external power source.
  Specification:
• The GE IC693DNM200 module meets specifications tailored to meet the demands of industrial automation applications:
• Certifications: The module may carry various certifications, such as CE or UL, to ensure compliance with international safety and performance standards.
  Dimensions and Mounting: Provides the physical dimensions of the module and any specific mounting requirements for installation within the PLC cabinet or rack.
  Environmental Ratings: Specifies the operating temperature range, humidity, and other environmental conditions within which the module can operate reliably.
  Diagnostic Features: The module may offer diagnostic features to aid in troubleshooting and monitoring the health of the DeviceNet network.
  Applications:
• The GE IC693DNM200 module finds its application in various industrial automation systems where DeviceNet communication is required. It can be used in manufacturing plants, process control systems, and other industrial settings to connect and control various devices and sensors over the DeviceNet network.
• Conclusion:
• The GE IC693DNM200 is a DeviceNet master module designed for use with GE’s Series 90-30 PLC systems. It supports DeviceNet communication protocol, enabling reliable and efficient communication with other DeviceNet devices. The module offers key parameters and specifications tailored to meet the demands of industrial automation applications, ensuring compatibility, performance, and reliability in various industrial settings.
•
