Description

HORNER AUTOMATION HE693ADC410 is an analog input module.The following is a detailed introduction to it:

1.Basic properties

Brand:HORNER(also known as Horner Electric,and may also be related to GE or GE Fanuc and other brands,depending on the product application and background)

Model:HE693ADC410

Type:Isolated analog input module

II.Technical specifications

Operating voltage:Usually 24VDC(but there may be other voltage specifications,please refer to the actual product for details)

Number of channels:4 analog input channels

Resolution:14 bits(some instructions may mention other resolutions related to A/D conversion,but the main resolution is still 14 bits)

Input range:Usually supports±10V voltage input signals(may also support other ranges such as 0-5V,0-10V)

Common mode range:For ADC410,it is usually 1500VAC(effective value),±2000VDC

Channel isolation:channel-to-channel and channel-to-ground isolation

Update rate:45 channels/second(or according to specific configuration and application requirements)

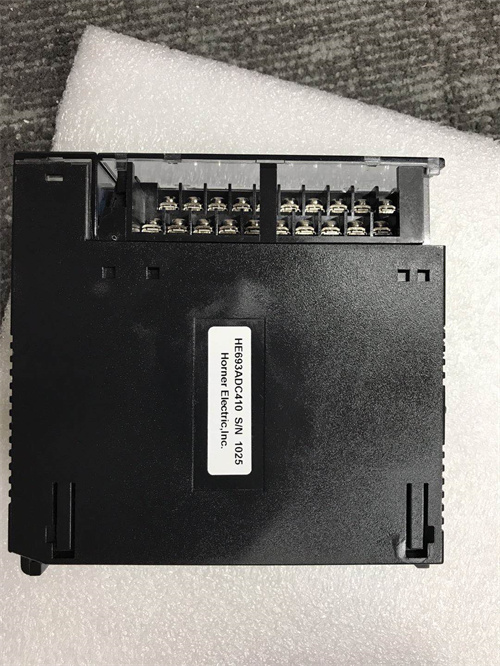

HORNER AUTOMATION HE693ADC410

III.Functional features

Signal conversion:Convert voltage input signals into digital values(-32,000 to+32,000)and directly enter them into the%AI table of the PLC CPU.

Setpoint alarm:Each channel has a programmable setpoint.When the analog input value reaches or exceeds the setpoint,the corresponding digital input will be activated.

High common mode rejection:Provides high common mode rejection(>100dB)against external interference.

Wide operating temperature range:The operating temperature range is 0 to 60°C,suitable for various industrial environments.

Programmability:Users can program and customize the module according to specific application requirements.

Integration and compatibility:The module can be seamlessly integrated with other ABB products and solutions,and also has good compatibility with equipment and systems from other manufacturers.

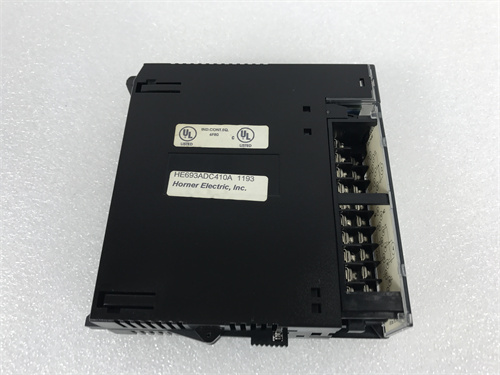

HORNER AUTOMATION HE693ADC410

High performance and high reliability:High-performance hardware and software are used to ensure stable operation and efficient control in industrial environments.

Flexibility and scalability:Modular design is adopted,which can be flexibly configured and expanded according to actual needs.

Easy to use and maintain:Provides an intuitive user interface and powerful diagnostic tools.

Multi-function control:The module can perform a variety of control functions,including logic control,motion control,temperature control,etc.

Digital control:Provides digital control functions,allowing users to define and execute control logic programmatically.

Communication capability:supports multiple digital communication protocols,such as Ethernet,Profibus,Modbus,etc.

4.Application scenarios

The HORNER AUTOMATION HE693ADC410 analog input module is usually used in industrial automation and control systems.It is the connection interface between PLC and industrial production equipment or industrial production processes.

It can receive analog input signals from sensors or other devices and convert them into digital signals for PLC processing,thereby realizing the monitoring and control of various industrial processes,such as temperature,pressure,flow,etc.
