Description

HONEYWELL CC-PAIN01 is a high-performance analog input module produced by Honeywell.The following is a detailed introduction to the module:

1.Product Overview

The CC-PAIN01 module is part of Honeywell’s Experion Process Knowledge System(PKSTM),which is mainly used to convert process variables(such as temperature,pressure,flow,etc.)into analog signals for use in other devices in the control system.The module is compact in design and rugged in structure,capable of withstanding harsh industrial environments,ensuring reliable performance under various conditions.

2.Technical Specifications

Input type:supports 2-wire or self-powered transmitters.

Input range:0 to 100%full scale.

Accuracy:±0.25%of full scale,ensuring accurate measurement and monitoring.

Temperature range:-40°C to 85°C,suitable for various industrial environments.

Power supply:24 VDC,providing stable power input.

Electrical connection:M12 connector is used to ensure the reliability and stability of the connection.

Size:about 10 cm×5 cm×3 cm,the compact design makes it easy to install and integrate into existing systems.

Weight:about 0.2 kg.

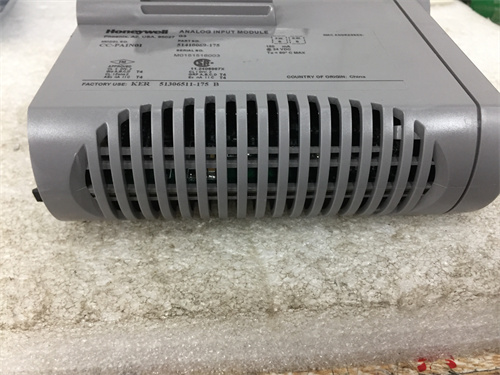

HONEYWELL CC-PAIN01

III.Functional features

High precision and high resolution:The CC-PAIN01 module has high precision and high resolution,can accurately measure and monitor various process parameters,and ensure that the analog signals received from the sensor can be accurately converted into digital signals for accurate analysis and processing by the control system.

Multi-channel analog input:The module is designed with multiple analog input channels(usually 8 analog inputs and 4 digital inputs),which can receive analog signals from different sensors and instruments to meet the needs of complex industrial applications while providing flexibility and scalability.

Signal conversion and communication:The core function of the module is to convert analog signals into digital signals so that the control system can process and analyze these data.It supports multiple communication protocols(such as Modbus RTU),and can send the converted digital signals to the control system to achieve effective transmission and recording of data.

Programmability:Users can configure and program these modules according to specific application requirements to define the functions and ranges of the input channels.This flexibility enables the module to adapt to a variety of complex and customized industrial automation systems.

Easy to install and maintain:The module adopts a compact design,which is easy to install and integrate into the existing system.At the same time,its sturdy structure and reliable performance also reduce maintenance costs.

HONEYWELL CC-PAIN01

IV.Application Fields

Due to its excellent performance and functions,the HONEYWELL CC-PAIN01 module is widely used in various industrial and manufacturing fields,including chemical,electric power,pharmaceutical,food processing and building automation.In these fields,the module provides strong support for industrial automation control systems,ensuring the stability and reliability of the production process.
