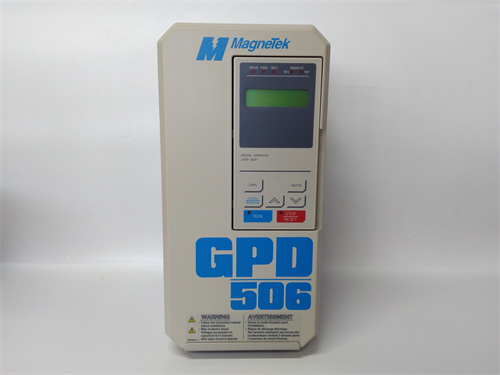

GPD506V-B004

Description

GPD506V-B004 is a high-performance AC motor driver.Here is a detailed analysis of it:

1.Product Overview

The GPD506V-B004 driver is designed for industrial applications and supports a variety of motor types,including induction motors,permanent magnet motors,and synchronous reluctance motors.It is able to perform well in situations where precise control of motor speed and torque is required,and is widely used in industrial automation fields such as production line control,robot drive,material handling,etc.

GPD506V-B004

2.Technical Specifications

Output voltage range:0~460VAC,which means it can adapt to motors with different voltage requirements.

Output frequency range:0~400Hz,which provides it with a wide range of speed regulation.

Output power:6.2kW,suitable for small and medium power motor drives.

Input voltage:three-phase,230VAC,which is its standard power input.

Input frequency:50/60Hz,adapted to the grid frequency in different regions.

3.Control method

GPD506V-B004 driver supports multiple control methods to meet the needs of different application scenarios:

V/F control:a basic motor control method that controls the motor speed by adjusting the ratio of voltage and frequency.

Sensorless vector control:a more advanced control method that estimates the rotor position and speed of the motor through an algorithm to achieve precise control of the motor without the need for additional sensors.

Closed-loop vector control:on the basis of vector control,by feeding back the actual position and speed information of the motor,the accuracy and stability of the control are further improved.

4.Communication function

GPD506V-B004 driver has a variety of communication interfaces,which is convenient for connection and data exchange with other devices or systems:

Modbus:a widely used industrial communication protocol that supports multiple data transmission methods.

RS-485:a commonly used serial communication interface suitable for long-distance,high-speed data transmission.

CANopen:an industrial communication protocol based on CAN bus that supports data exchange in distributed control systems.

GPD506V-B004

5.Product features

Multiple motor type support:can adapt to different types of motors to meet the needs of diverse industrial applications.

Precise control:Provides precise control of motor speed and torque to ensure stable and efficient operation of the equipment.

Easy to integrate:Equipped with a variety of communication interfaces and protocols,it is easy to integrate with other devices and systems.

Reliable and durable:Made of high-quality materials and processes to ensure long-term stable operation.

VI.Application areas

The GPD506V-B004 driver is widely used in the field of industrial automation,including but not limited to the following aspects:

Production line control:In automated production lines,the driver is used to accurately control the speed and position of the motor to achieve automation and efficiency of the production process.

Robot drive:In a robot system,the driver is used to drive the robot’s joints and actuators to achieve precise movement and operation of the robot.

Material handling:In a material handling system,the driver is used to control the movement of equipment such as conveyor belts and elevators to achieve automated handling and storage of materials.
