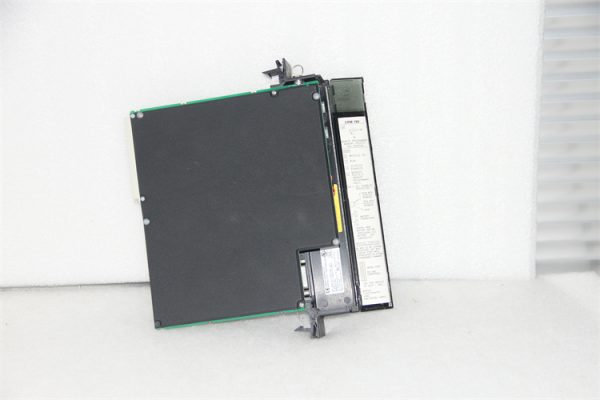

GE IC697CPM790

Description

GE IC697CPM790 is a PLC(Programmable Logic Controller)central processor manufactured by GE(General Electric).The following is a detailed introduction to the processor:

I.Main Features

High performance:The GE IC697CPM790 is a 64MHz,32-bit floating-point processor equipped with 1MB of memory and battery backup.It supports floating-point operations and is equipped with an 80486DX2 microprocessor with powerful computing power.

Modular design:The processor is suitable for IC66 triple modular redundant systems,allowing 1MB of battery-backed memory to be provided in the same slot.This design makes the system more flexible and reliable.

Easy to program and configure:The GE IC697CPM790 can be programmed and configured through MS-DOS or Windows-based programming software.This enables users to easily develop and maintain systems.

Multiple input and output functions:The processor supports up to 12K discrete inputs and outputs(any mix,simplex mode only),and up to 8K analog inputs and outputs(also simplex mode only).This provides users with a wealth of input and output options.

Security protection:The GE IC697CPM790 has a password-controlled access function that protects program and configuration data from unauthorized users.In addition,it also has a memory protection key switch that can manually lock the memory,further enhancing the security of the system.

GE IC697CPM790

2.Functions and applications

Status indication:The processor has four green LED indicators to indicate the status of the CPU.This helps users quickly understand the operating status of the system.

Firmware upgrade:The GE IC697CPM790 has a dedicated operating system firmware flash memory that allows firmware updates through a connection between the PC and the module’s serial port.This enables the system to maintain the latest functions and performance.

Alarm function:During practical operation and power-on,the CPU verifies the rack configuration and reports any deviations in the programming or actual configuration.This helps users to detect and solve problems in a timely manner.

Support for multiple modules:The processor supports multiple option modules such as IC660/IC661 input/output modules,programmable coprocessors,alphanumeric flash coprocessors,etc.,providing users with rich expansion options.

GE IC697CPM790

3.Use and Maintenance

Cooling requirements:To ensure that the GE IC697CPM790 can operate normally when the ambient temperature exceeds 40°C,a forced air cooling fan needs to be installed.Users can install a 70CFM fan(including filter)under slot 1 of the rack where the CPU is installed.

Installation manual:The installation manual provided with the PLC programming software describes how to properly install the device.Users should read and follow the instructions in the manual carefully.

Compliance with standards:If the PLC installation must comply with supported standards,such as FCC or CE directives,please refer to the”Standard-Compliant Installation Requirements”to ensure that the system complies with the relevant standards.
