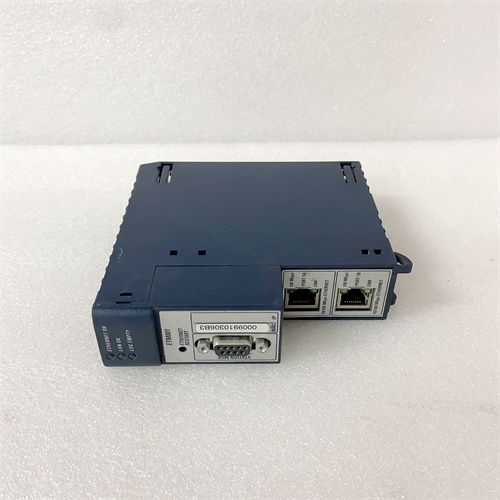

GE IC695ETM001

Description

GE IC695ETM001 is an Ethernet interface module,which is described as follows:

1.Manufacturer and series

Manufacturer:manufactured by General Electric(GE),which was later acquired by Emerson.

Series:GE Fanuc RX3i PACSystems series.

GE IC695ETM001

2.Main functions and features

Ethernet connection:IC695ETM001 is a two-port Ethernet transmitter module that enables Ethernet connection,supports 10/100 Mbps transmission rate and auto-negotiation function.

Controller communication:enables PACSystem to communicate with other controller platforms such as 90 series and VersaMax controllers.

Protocol support:Capable of executing Service Request Transport Protocol(SRTP),Modbus TCP and Ethernet Global Data(EGD)protocols through a four-layer TCP/IP protocol stack.

Time synchronization:Time synchronization with SNTP time server can be performed on Ethernet TCP/IP.

Redundancy and hot-swap:Supports redundant I/P addressing and hot-swap function(firmware version 2.51 needs to be installed).

Station Manager Functionality:Built-in station manager functionality,accessible via serial and Ethernet connections,provides monitoring access.Includes commands for polling and controlling stations,access for monitoring statistics,logs,and configuration parameters,and password security.

GE IC695ETM001

III.Physical and Electrical Characteristics

Ports:

Two Ethernet ports.

One RS-232 serial port,supporting data transfer rates from 1200 bps to 115200 bps.

Indicators:Includes Ethernet OK,LAN OK,log clear,single port,and speed LED status indicators.

Backplane Compatibility:Compatible backplanes IC695CHS007,CHS012,or CHS016 can be used.

Module Size and Installation:Can be installed in any empty RX3i slot.

IV.Other Information

Upgrade and Maintenance:Module firmware can be field upgraded through software tools provided by GE Fanuc.

Application Scenario:Applicable to PACSystems RX3i series devices that need to communicate with other controllers via Ethernet.

In general,the GE IC695ETM001 is a powerful and flexible Ethernet interface module that can meet the Ethernet communication needs of various industrial automation and control systems.
