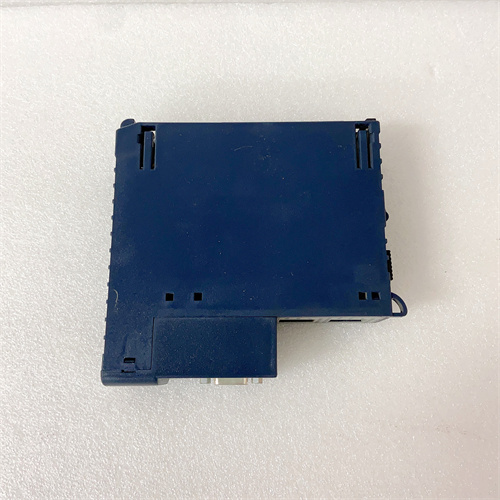

GE IC695ETM001

Description

The GE IC695ETM001 is an Ethernet module manufactured by GE(General Electric)and belongs to the PACSystem Rx31 series or RX3i series.The following is a detailed introduction to GE IC695ETM001:

1.Basic properties

Brand:GE(General Electric)

Category:Ethernet communication module

Origin:United States

Color:mixed color

Ambient operating temperature:34℃(or other normal ambient temperature)

Power supply:normal

Interface mode:RS-232 serial port

Volume and weight:The specific volume parameters may vary depending on the product,and the net weight is about 1kg(or 1.6kg,depending on the product)

GE IC695ETM001

2.Technical specifications

Ethernet port:2 RJ-45 ports,supporting 10/100 Mbps transmission rate and automatic negotiation function

Ethernet processor speed:200 MHz

Data rate:RS-232 serial port supports data rates of 1200 bps to 115200 bps

Protocol support:Supports four-layer TCP/IP protocol stack,can execute Service Request Transport Protocol(SRTP),Modbus TCP and Ethernet Global Data(EGD)protocol

Other functions:Supports synchronizing timestamps of EGD exchanges via SNTP protocol;has PLC configuration and programming functions;provides diagnostic and station management tools

III.Compatibility and Applications

Compatibility:Compatible with RX3i slots and can be installed in any empty RX3i slot;supports hot-swap function(must install firmware version 2.51);compatible with any other PACSystem RX3i module except CPE400;compatible backplanes that can be used are IC695CHS007,CHS012 or CHS016

Applications:Enables PACSystem to communicate with other controller platforms such as 90 series and VersaMax controllers;supports periodic data exchange via Ethernet global data;executes EGD commands to read and write controllers;supports TCP/IP services using Serial Real-time Transport Protocol(SRTP)and SRTP channels;can act as a MODBUS TCP server and MODBUS TCP Client

GE IC695ETM001

4,Product Features

High Performance:With high-speed Ethernet processor and multiple communication protocol support,it ensures efficient data transmission and communication capabilities

Flexibility:Supports hot-swap function,which facilitates module replacement or upgrade without affecting system operation

Ease of use:Provides integrated station manager function,which can be accessed through serial and Ethernet connections for easy monitoring,configuration and troubleshooting
