GE IC695ETM001

Description

GE IC695ETM001 is an Ethernet module manufactured by GE(General Electric)and belongs to the PACSystem Rx31 module series.The following is a detailed introduction to the module:

1.Basic Overview

Manufacturer:GE(General Electric),which was later acquired by Emerson.

Module Type:Ethernet Transmitter Module.

Application Scenario:PACSystem Rx31 Series.

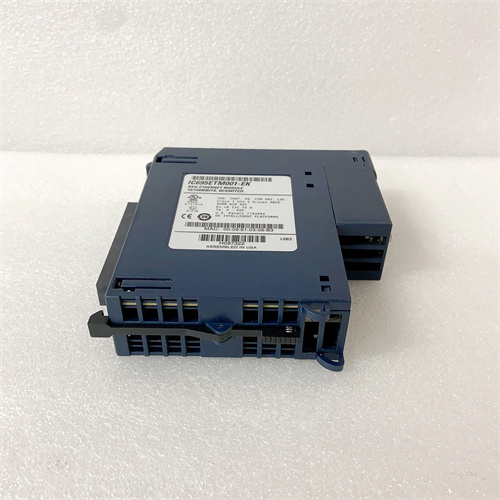

GE IC695ETM001

2.Main Features

Port Configuration:

The module has two RJ-45 ports and supports Ethernet connection.

Supports 10/100 Mbps transmission rate and auto-negotiation function.

Processor Performance:

Built-in high-speed processor,providing powerful data processing capabilities(it is said that the module has a built-in 32-bit RISC processor with a speed of 200 MHz).

Communication Protocol:

Supports TCP/IP protocol stack,and can execute Service Request Transport Protocol(SRTP),Modbus TCP and Ethernet Global Data(EGD)protocols.

Supports periodic data exchange through Ethernet global data,and executes EGD commands to read and write controllers.

Supports TCP/IP services using Serial Real-time Transport Protocol(SRTP)and SRTP channels.

Other features:

There is an embedded switch that can be configured for auto-negotiation,sensing,speed,and crossover detection.

Can be used for time synchronization with SNTP time servers over Ethernet TCP/IP.

Provides an RS-232 serial port that supports data transmission rates from 1200 bps to 115200 bps.

Built-in station manager function,accessible through serial and Ethernet connections,provides monitoring access.

GE IC695ETM001

III.Compatibility and Application

Compatibility:

This module fits into the RX3i slot and is compatible with any other PACSystem RX3i module except CPE400.

Compatible backplanes include IC695CHS007,CHS012,or CHS016.

Application:

Enables GE Fanuc’s RX3i PacSystems series devices to connect to VersaMax,90 series,and other RX3i series GE controllers via Ethernet.

Widely used in industrial automation,providing stable network communication solutions.

4.Additional functions and maintenance

Hot-swap function:

Supports hot-swap,which facilitates module replacement and maintenance without affecting the normal operation of the system.

To enable the hot-swap function,firmware version 2.51 must be installed.

Firmware upgrade:

Module firmware can be upgraded on-site through software tools provided by GE Fanuc.
