GE IC693PWR321

Description

GE IC693PWR321 is a standard power module.Here is a detailed introduction to the product:

I.Product Overview

The GE IC693PWR321 power module is part of the GE Fanuc 90-30 series platform and provides power for the processing power of the Fanuc 90-30 series PLC(programmable logic controller).The power module is ruggedly constructed and equipped with a battery,which is located in a slot on the left side of the base plate for easy integration into the system.

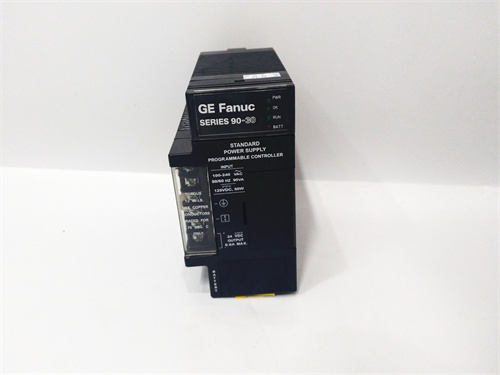

GE IC693PWR321

II.Technical Specifications

Power and Load Capacity:

Load Capacity:30 Watts

Input Power:90VA(AC Input);50W(DC Input)

Output Power:+5VDC 15W,+24VDC relay 15W,+24VDC isolation 20W

Input voltage:

AC input voltage range:85264VAC,nominal 120240VAC

DC input voltage range:100~300VDC,nominal 125VDC

Output voltage:

+5VDC:output voltage range is 5.0~5.2VDC,nominal 5.1VDC

+24VDC relay:output voltage range is 24~28VDC

+24VD C isolation:output voltage range is 21.5~28VDC

Protection features:

Overvoltage protection:6.4~7VDC

Overcurrent protection:4A,maximum hold time 20ms

Other features:

Surge current peak:4 amps,long duration 250ms

6 terminals for user connection

Equipped with 1 9-pin sub-D connector,RS485 compatible serial port

Comes with an internal fuse(GE catalog number is 44A724627-109)

III.Application areas

GE IC693PWR321 power modules are widely used in various industrial automation and control system occasions,including but not limited to:

Industrial process control:such as chemical,petroleum,water treatment and other fields,used to monitor and control industrial processes.

Manufacturing:used to control mechanical equipment,machine tools,etc.on production lines to improve production efficiency.

Energy management:in energy production and distribution systems,realize the monitoring and control of resources such as electricity,water,and gas.

Building automation:used to control lighting,air conditioning,ventilation and other equipment to improve energy efficiency and comfort.

Transportation:used to control traffic equipment such as signal lights and electric vehicles.

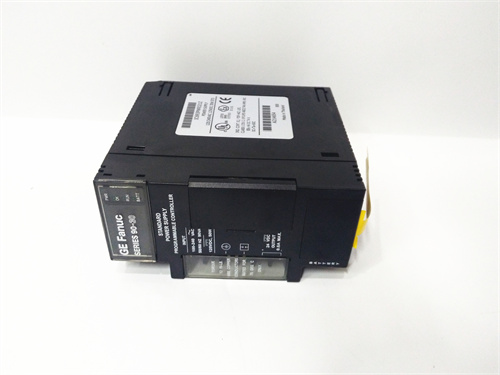

GE IC693PWR321

IV.Product Advantages

High performance:The module has excellent performance and stability,and can meet the needs of various industrial automation and control systems.

High reliability:The use of high-quality materials and manufacturing processes ensures the reliability and long-term stability of the module.

Easy to integrate:Fully compatible with the GE Fanuc 90-30 series platform,easy to integrate into existing systems.

Comprehensive protection features:Provide overvoltage and overcurrent protection to ensure that the module will not be damaged under abnormal conditions.
