GE IC693MDL753

Description

GE IC693MDL753 is a high-performance digital output module produced by General Electric(GE).The following is a detailed introduction to the module:

1.Product Overview

The GE IC693MDL753 module is suitable for various industrial automation control systems and can meet the needs of complex control systems.The module was previously manufactured by GE Fanuc Automation and has now been acquired by Emerson Automation.

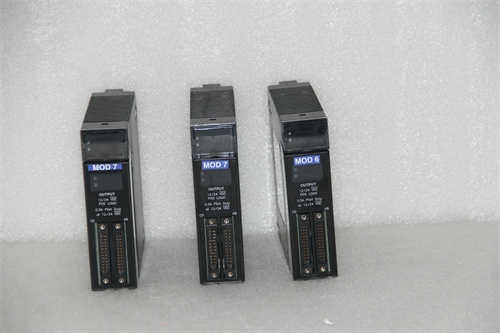

GE IC693MDL753

2.Technical Specifications

Number of output points:32 points,which are divided into 4 groups,each with 8 outputs.

Output type:transistor type,positive logic output.

Output voltage range:10228.8V(nominal voltage is 1224VDC).

Maximum output current:0.5A per point,maximum 4A per group(maximum 3A per common pin).

Response time:≤1ms(typical values​​of on and off response time are both 0.5ms).

Isolation method:optoelectronic isolation,each group of outputs has 250V isolation,and the voltage between the field side and the logic side or optical isolation is 100V.

Power consumption:The internal power consumption from the 5VDC backplane is 260mA.

Operating environment temperature:-20℃to 60℃.

Operating humidity:5%to 95%(no condensation).

III.Product features

High reliability:The use of advanced manufacturing processes and high-quality components ensures that the module operates stably in harsh industrial environments.

Flexible configuration:Supports a variety of output voltage ranges,which is convenient for users to configure according to actual needs.

Fast response:The response time is fast and can meet the requirements of high-speed control systems.

Isolation protection:Optoelectronic isolation design effectively prevents the influence of interference signals on the system and improves the stability and safety of the system.

Wide temperature operation:It can work normally in a wide temperature range and adapt to various industrial environments.

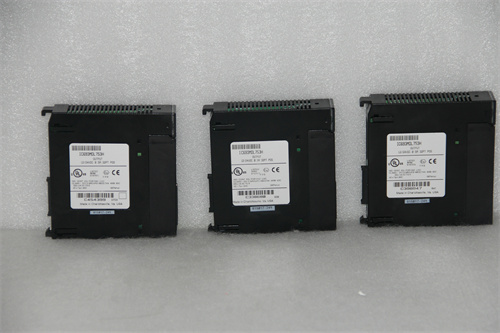

GE IC693MDL753

IV.Application fields

The GE IC693MDL753 module is widely used in the following fields due to its high performance and reliability:

Manufacturing:such as automotive,electronics,food,pharmaceutical and other production line automation control.

Energy industry:such as monitoring and control of energy equipment such as electricity,oil,and natural gas.

Infrastructure construction:such as automation systems such as water treatment,sewage treatment,and environmental protection equipment.

Transportation:automated management of transportation facilities such as rail transit,ports,and airports.
