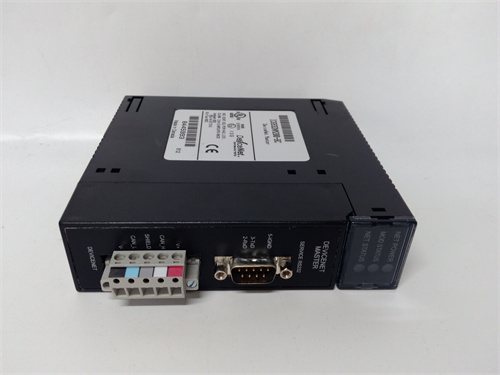

GE IC693DNM200

Description

GE IC693DNM200 is a DeviceNet master module.Here is a detailed introduction to the module:

1.Basic information

Type:DeviceNet master module

Series:Part of the 90-30 series programmable logic controller(PLC)platform

Manufacturer:Originally produced by GE Fanuc,now part of Emerson Automation

2.Hardware features

Slot type:Single-slot communication module

Port configuration:

1 DeviceNet terminal

1 RS232 9-pin D-type female port(used as module service port)

Rated voltage:12 to 24 V DC(positive logic)

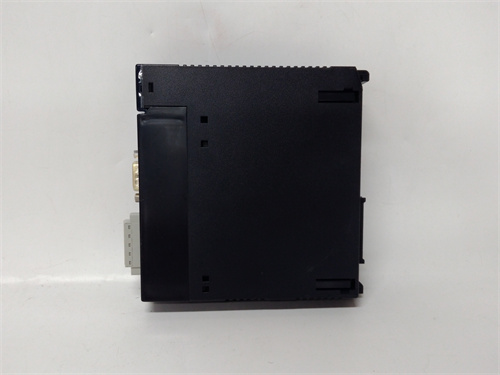

GE IC693DNM200

III.Communication and Network

Protocol support:Supports all data transmission rates of the DeviceNet protocol,especially 125K,250K and 500K transmission rates

Data transmission capacity:

Each slave device can transmit up to 255 bytes of input data and 255 bytes of output data from the master

Up to 3972 bytes of input data and 3972 bytes of output data can be transmitted to the master module

Connection capacity:

Can communicate with up to 63 slave devices

Each slave device can be assigned up to 2 I/O stations,so a total of 126 I/O connections can be established

Supported connection mode:Polling,strobe,cycle or COS,also supports explicit messaging,unconnected message manager(UCMM)and 1 proxy connection per slave unit

Dual mode operation:can operate as master and slave at the same time

GE IC693DNM200

IV.Configuration and functions

Configurable data connection:multiple configuration options to meet different needs

Fault behavior configuration:fault behavior when communication is interrupted can be configured to provide acceptable system response when errors occur

Firmware upgrade:equipped with upgradeable firmware,module updates and error corrections can be downloaded through the RS232 service port

Configuration tools and diagnostic functions:configuration tools and diagnostic functions for setting network parameters,configuring slave devices and monitoring network status are provided,simplifying system configuration and troubleshooting
