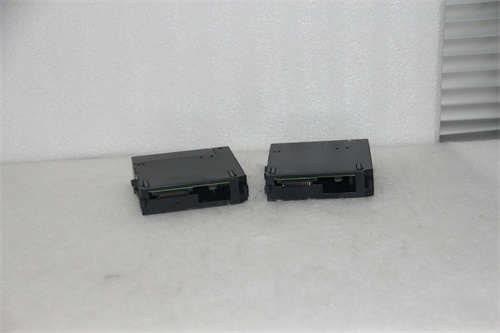

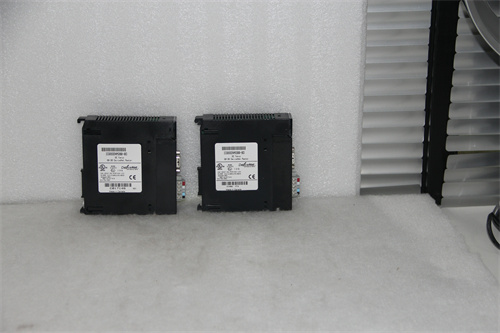

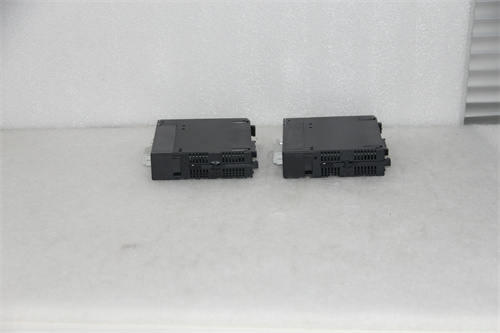

GE IC693DNM200

Description

GE IC693DNM200 is a DeviceNet master module.Here is a detailed introduction to the product:

I.Product Overview

GE IC693DNM200 is a DeviceNet master module,part of the 90-30 series programmable logic controller(PLC)platform.The module was previously produced by General Electric Fanuc and is now part of Emerson Automation.It is equipped with a DeviceNet terminal and an RS232 9-pin D-type female port(used as a module service port)to support all data transmission rates of the DeviceNet protocol,especially 125K,250K and 500K transmission rates.

GE IC693DNM200

II.Technical Specifications

Communication Speed:Supports standard DeviceNet transmission rates such as 125K,250K and 500K baud.

Data Capacity:Each slave device can transmit up to 255 bytes of input data and 255 bytes of output data from the master,and up to 3972 bytes of input data and 3972 bytes of output data to the master module.

I/O connection:The module can communicate with up to 63 slave devices,and each slave device can be assigned up to two I/O stations,so a total of 126 I/O connections can be established.

Port configuration:Equipped with a DeviceNet terminal and an RS232 9-pin D-type female port(used as a module service port).

Rated voltage:12 to 24 V DC(positive logic).

III.Functional features

High-speed communication:Supports high-speed communication,fast data transmission and response speed,which can meet the needs of real-time control systems.

Multi-slave communication:Can communicate with up to 63 slave devices,each slave device can be assigned two I/O stations,providing flexible I/O configuration.

Multiple data connections:Supported and configurable data connections are polling,strobe,cyclic or COS,and also supports explicit messaging,unconnected message manager(UCMM)and one proxy connection per slave unit.

Dual-mode operation:The module can operate in dual mode as a master and slave at the same time,providing higher flexibility and scalability.

Fault configuration:Fault behavior when communication is interrupted can be configured to provide an acceptable system response when an error occurs.

Upgradeable firmware:Equipped with upgradeable firmware,module updates and error corrections can be downloaded through the RS232 service port to ensure the continued stability and performance of the module.

Configuration tools and diagnostic functions:Configuration tools and diagnostic functions for setting network parameters,configuring slave devices,and monitoring network status are provided,simplifying the system configuration and fault diagnosis process.

GE IC693DNM200

IV.Application areas

GE IC693DNM200 is commonly used to connect and control variable frequency drive(VFD)modules and other devices such as sensors and actuators.It allows PLC systems to exchange data and transmit control commands with other devices through the DeviceNet network,and is widely used in automation control systems in manufacturing,energy,chemical,transportation and other industries.
