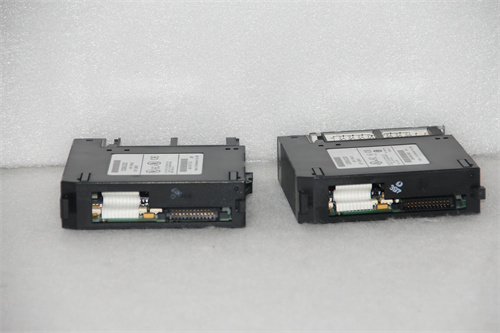

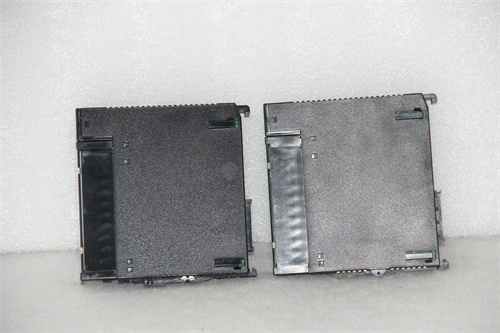

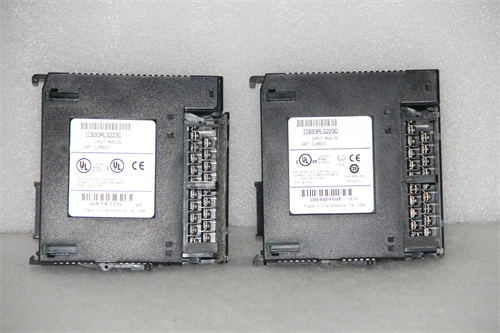

GE IC693ALG223

Description

GE IC693ALG223 is a 16-channel analog current input module manufactured by GE Fanuc and is part of the PACSystems Series 90-30 RX3i.The following is a detailed introduction to the module:

I.Basic Features

Manufacturer:GE Fanuc

Product Type:PACSystems Series 90-30 RX3i Analog Current Input Module

Number of Channels:16 single-ended input channels

GE IC693ALG223

II.Technical Specifications

Input Current Range:Three input current ranges are provided,namely 4 to 20 mA,0 to 20 mA(although this range is less common in conventional applications and may vary depending on product versions or specific needs)and 4 to 20 mA enhanced.

Resolution:High resolution of 4 microamps at 4 to 20 mA current ensures high-precision measurement.

Input Impedance:250 Ohms

Input Filter Response Frequency:200 Hz

Isolation Voltage:1500 volts of isolation voltage between the field side and the logic side helps eliminate ground loops in communication lines.

Update Rate:The standard update rate is 6 milliseconds.

Alarm function:Each input channel can set high and low alarms,and the enhanced range can also set low alarm limits to detect open circuit faults.

GE IC693ALG223

III.Application areas

Industrial automation:Applicable to various automation control systems,providing high-precision analog signal conversion.

Process control:In the chemical,petroleum,power and other industries,it is used to monitor and control key process variables.

Machine monitoring:Receive analog input signals from devices such as liquid level sensors,temperature sensors and flow sensors.

PLC system:Seamlessly integrates with GE Series 90-30 PLC to improve the overall performance of the system.

IV.Other functions

Status report:The module is able to report status information,including the power status of the CPU.

LED status light:Equipped with LED status lights,it can send ON,OFF and FAIL signals to facilitate user operation and troubleshooting.

Configuration flexibility:16 independent single-ended channels can be configured with different input current ranges to meet diverse needs.
