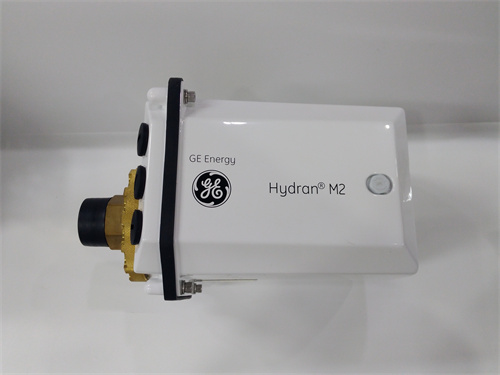

GE HYDRAN M2

Description

GE HYDRAN M2 is an online transformer monitoring device produced by GE(General Electric).The following is a detailed introduction to the device:

I.Product Overview

GE HYDRAN M2 is a compact,permanently installed online transformer monitoring device designed to provide continuous,real-time transformer condition monitoring.It is able to monitor the fault gas and moisture content dissolved in the transformer oil,as well as other optional sensor inputs(such as oil temperature,load,etc.),thereby helping users to promptly detect and prevent potential transformer failures.

II.Main Features

Continuous Monitoring:

Real-time monitoring of fault gases(such as hydrogen,carbon monoxide,acetylene,ethylene,etc.)and moisture content dissolved in the transformer oil.

A choice of traditional”composite gas”sensors or more basic”hydrogen only”sensors.

High-precision measurement:

Provides high-precision measurement data to help users accurately understand the health of the transformer.

The humidity sensor measures the moisture in the oil,which is the result of insulation paper degradation or gasket leakage.

GE HYDRAN M2

Built-in calculation model:

The built-in transformer mathematical model based on IEEE standards can convert the received data into useful real-time information.

Possible model outputs include estimated winding hot spot temperature,humidity in paper,moisture bubbling temperature,insulation aging,overload capacity,cooling efficiency,etc.

Multiple communication options:

A variety of communication options and protocols are available to simplify integration with SCADA(Supervisory Control and Data Acquisition)or DCS(Distributed Control System).

Supports remote access and monitoring,allowing users to understand the status of the transformer anytime,anywhere.

Easy to install and maintain:

Easy to permanently install on a single transformer oil valve without additional pipes or pumps.

No moving parts,reducing maintenance requirements.

Automatic self-test every 15 days,and service alarms are triggered if a fault is detected(such as power failure,oil valve closure,sensor failure).

Wide applicability:

Supports new low-flammability ester oils and mineral transformer insulating oils.

Applicable to power utilities and industrial plants of all sizes.

GE HYDRAN M2

III.Application areas

GE HYDRAN M2 is widely used in power utilities and industrial plants as an integrated solution for important medium-sized transformers.It can help users reduce the risk of process interruptions due to power outages and minimize costly downtime.At the same time,it can also provide critical monitoring information to minimize the risk of unexpected power outages.
