GE HYDRAN M2

Description

GE HYDRAN M2 is an online transformer monitoring device.Here is a detailed introduction to it:

I.Product Overview

Hydran M2 is a compact,permanently installed online transformer monitoring device that can sound an alarm when a transformer fails,providing critical monitoring information to minimize the risk of unexpected power outages.

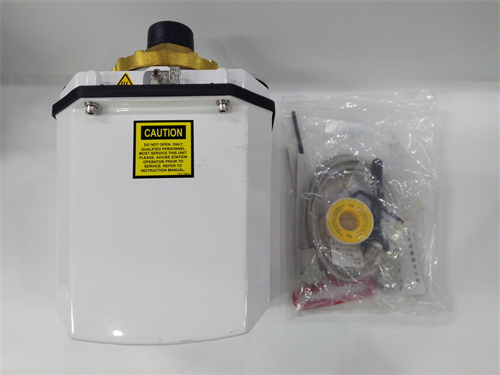

GE HYDRAN M2

II.Main functions

Gas monitoring:Hydran M2 can continuously monitor fault gases dissolved in transformer oil,including hydrogen(H2),carbon monoxide(CO),acetylene(C2H2)and ethylene(C2H4)(the specific type of gas monitored depends on the selected sensor).These gases are usually the product of internal transformer failures,and by monitoring their concentration changes,potential problems can be detected early.

Moisture monitoring:The device also tracks the moisture content in the oil,usually reading in relative humidity(%RH)and parts per million(ppm).Increased moisture in the oil can be the result of insulation paper degradation or gasket leakage,so monitoring moisture content is critical to assessing the health of the transformer.

Mathematical model calculation:By connecting other sensors(such as top and bottom tank oil temperature,transformer load or ambient temperature,etc.),Hydran M2 can capture more information and link it with DGA(dissolved gas analysis)and moisture values.Using this data,the device can perform calculations based on IEEE or IEC standard transformer mathematical models to provide more useful information about transformer performance.

3.Product advantages

Continuous monitoring and early warning:Hydran M2 can continuously monitor fault gas and moisture content in transformer oil and issue an alarm when abnormal levels are detected,helping users take timely measures to avoid failures.

Multiple sensor options:Users can choose traditional composite gas sensors or more basic hydrogen-only sensors as needed to meet different monitoring needs.

Built-in mathematical model:The device has a built-in transformer mathematical model based on IEEE standards,which can convert the received data into useful real-time information to further understand the overall health of the transformer.

Easy to install and maintain:Hydran M2 is easy to permanently install on a single transformer oil valve without the need for additional pipes or pumps.At the same time,it also has the characteristics of low maintenance cost,long sensor life,and supports field upgrades and analog signal input.

Multiple communication options:The device supports multiple communication methods and protocols,which can simplify integration with SCADA or DCS systems.In addition,it is compatible with GE’s digital platforms(such as Perception™transformer fleet management software),which facilitates users to conduct remote monitoring and data analysis.

GE HYDRAN M2

4.Application scenarios

Hydran M2 is widely used in integrated solutions for important medium-sized transformers in power facilities and industrial plants.It can help users reduce the risk of process interruptions caused by power outages and minimize costly downtime.
