Description

DS200RTBAG2AFB is a relay terminal board(RTBA)designed for General Electric(GE)’s Mark V circuit board series.Here is a detailed introduction to it:

1.Basic Information

Brand:GE(General Electric)

Model:DS200RTBAG2AFB

Design:Designed for the General Electric Mark V circuit board series,it can be widely used in General Electric brand drive and exciter applications.

2.Relay Configuration

Number of relays:By installing this board into the drive cabinet,an additional 10 relays are provided to the user.

Relay Type:

DPDT(Double Pole Double Throw)Type:Includes seven relays on the card(K20 to K26),each with two Form C contacts rated at 10A.

4PDT(Quad Pole Double Throw)Type:Includes three relays(K27 to K29),each with four Form C contacts rated at 1A.

Protection:All ten relay points are protected by a 130VAC Metal Oxide Varistor(MOV)to ensure circuit safety.

3.Electrical Characteristics

Coil:Each relay has a 110 volt DC coil inside to ensure normal operation.

Pluggable Circuit:There are two plug connectors on the surface of the circuit board,of which the CPH plug connector is used for the positive pole of the plug-in circuit control power supply,and the CPN plug connector is used for the negative pole of the circuit control power supply.

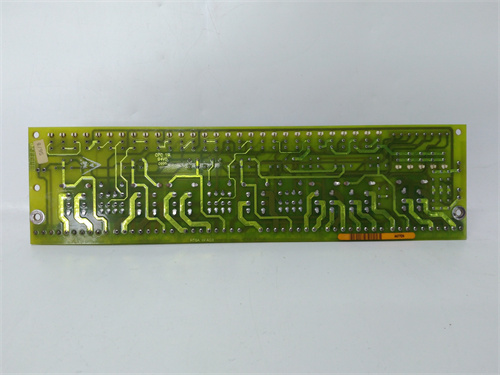

GE DS200RTBAG2AF

4.Position Identification and Function

Position Identification:Positions K20 to K29 are the circuit board positions of all onboard relays for easy connection and configuration.

Function:As a member of the Mark V board series,this relay terminal board can be used in various control systems to provide additional relay functions to meet the system’s needs for signal transmission and control.

5.Application Field

DS200RTBAG2AFB relay terminal board can be used in various industrial automation systems in the fields of power,oil and gas,water treatment,manufacturing and transportation.

GE DS200RTBAG2AF

6.Installation and Maintenance

Installation:The DS200RTBAG2AFB relay terminal board should be installed on an appropriate rack and ensure that all connections are correct.During installation,the installation guidelines and safety specifications provided by GE should be followed.

Maintenance:Regularly check the connections of the relay terminal board and whether the relay is loose or damaged.Remove dust and dirt from the relay terminal board to ensure good heat dissipation and electrical performance.If you need to replace a damaged relay or perform other maintenance operations,follow the maintenance guidelines and safety specifications provided by GE.

VII.Other features

Modular design:The system can be flexibly expanded and upgraded according to actual needs.

High precision:With high-precision control and data processing capabilities,ensure the accuracy and stability of system operation.

High stability:Made of advanced technology and materials to ensure long-term stable operation and reduce maintenance costs.

Strong communication capabilities:Supports multiple communication protocols,such as Ethernet,Profibus,Modbus,etc.,to facilitate data exchange and communication with other devices and systems.
