GE DS200FCGDH1B

Description

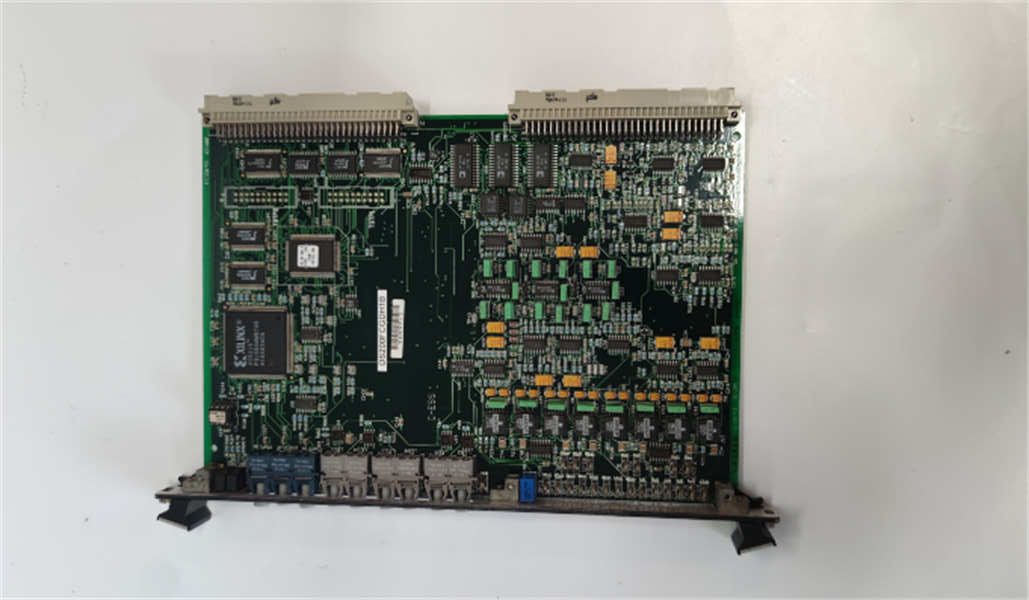

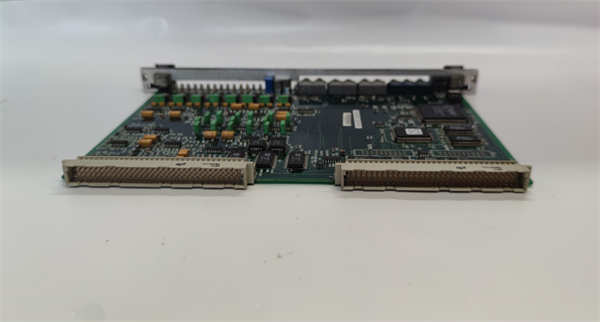

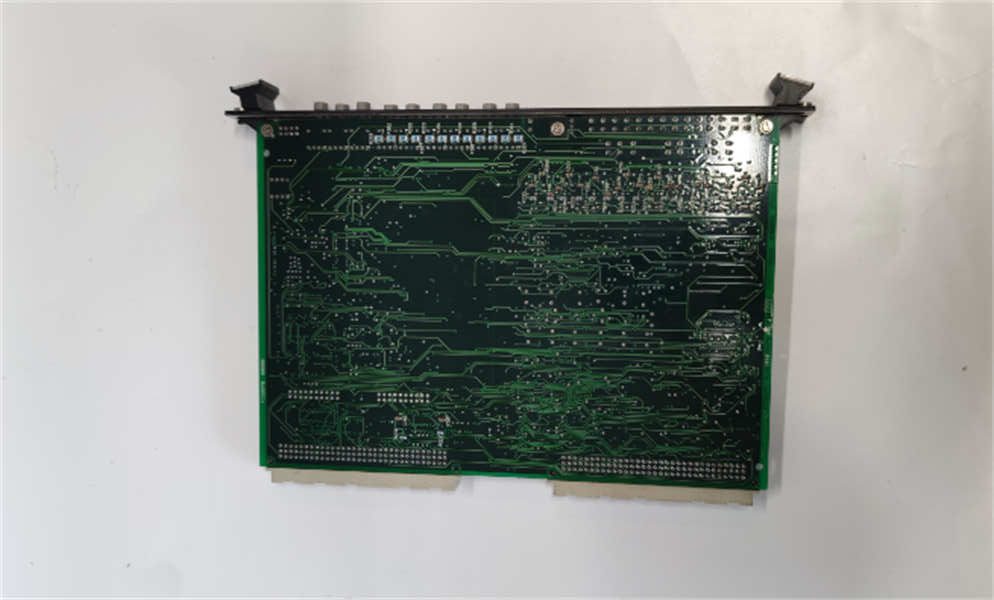

GE DS200FCGDH1B is a gate distribution and status card(FCGD)developed by General Electric(GE)for its Mark series boards.The following is a detailed introduction to the product:

1.Basic information

Part number:DS200FCGDH1B

Manufacturer:General Electric(GE)

Product type:gate distribution and status card

Series:Mark V(some say it is part of the Mark VI series,but it is more commonly classified as the Mark V series)

2.Functional features

Gate distribution and status monitoring:This card is responsible for controlling the gate circuit of the driver and monitoring the status of the driver.

Six-pulse phase control interface:Provides an interface with the six-pulse phase control irreversible bridge to achieve control of the driver.

ABB UNITROL 1020

Signal processing:Processes various signals from the driver and control system,including receiving multiplexed unit status signals from each bridge leg,and decoding and de-distributing the unit gate control signals of each bridge leg.In addition,it also receives the bridge feedback signal,scales it,and then transmits the voltage,frequency,and current status data back to the DSPC board.

3.Technical parameters

Number of channels:12

Range:-8 mV to+45 mV

Operating temperature:-30 to 65ºC

Power supply voltage:24 V dc

Circuit board size:9.2×6.3 inches

Weight:0.45 kg

4.Application scenarios

GE DS200FCGDH1B is widely used in various industrial drive control systems,such as motor drive,inverter drive,etc.In addition,it can also be used for control and protection of power systems.

5.Product features

Designed for GE drives:highly compatible with GE brand drives and highly integrated.

High reliability:industrial-grade design,suitable for harsh industrial environments.

Powerful functions:provides rich functions to meet various application requirements.
