GE DS200DCFBG1BKC

Description

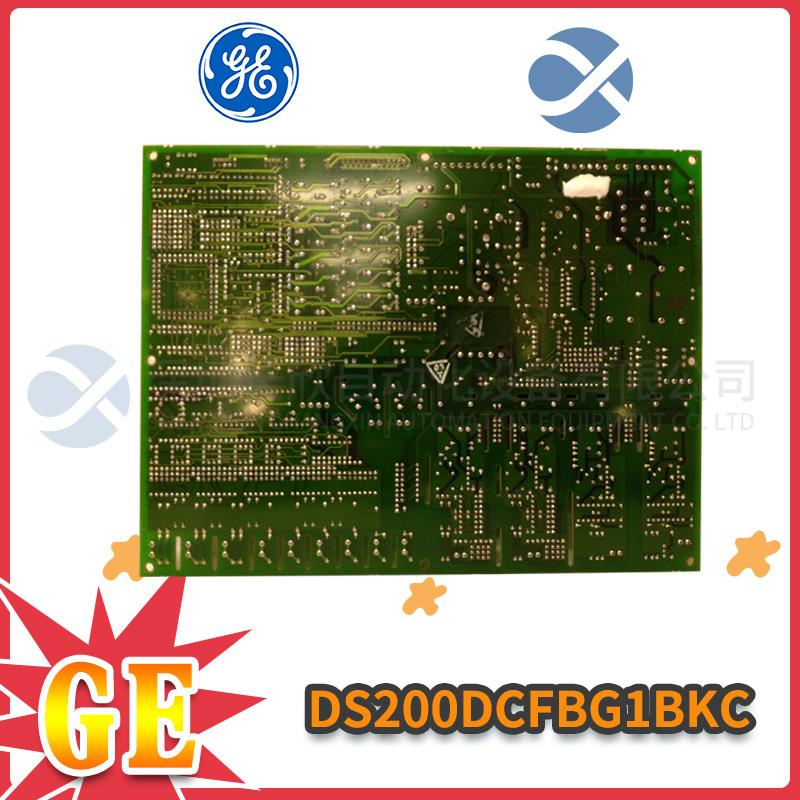

The GE DS200DCFBG1BKC is a power supply board belonging to the GE series.

When mounted in a drive, the board powers the cabinet fan as well as the system’s control level power supply. In GE’s drive system, the board is compatible with DC2000, AC2000, FC2000, CB2000 and ME2000 series drives. The board’s nominal rated source input safely measures voltages between 38 and 115vac. The output frequency produced by the card can be measured from 0 to 500KHz, depending on the input voltage. The board has five separate circuits, including a control level power supply circuit, a drive circuit, a motor field power supply circuit, and an AC and DC monitoring circuit2.

The model of the driver module is GE DS200DCFBG1BKC.

The driver module features four EIA-232-D serial communication ports, a 4K x 8 SRAM with a battery-powered clock, and four 28/32 pin ROM/PROM/EPROM/EPROM sockets.

The driver module has an Ethernet transceiver interface and a SCSI bus interface.

The driver module supports the Windows XP and Windows 2000 operating systems.

The GE DS200DCFBG1B is a DC feedback power supply board.

The power board is manufactured by General Electric.

The main function of the power board is to provide a stable DC power supply to ensure the normal operation of the device.

The power supply board is commonly used in industrial control systems, power systems, mechanical equipment, automation equipment and other applications that require a stable power supply.

The power supply board has the characteristics of high stability and voltage/current accuracy
