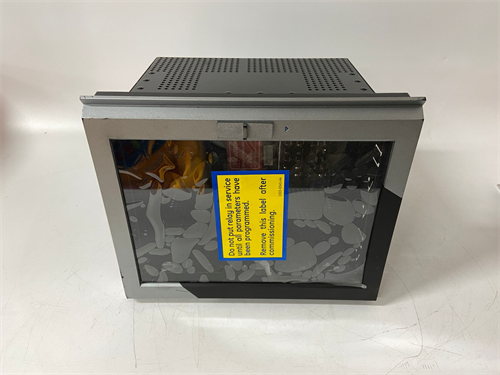

GE 469-P5-HI-A20-E-H

Description

GE 469-P5-HI-A20-E-H is a motor management relay produced by General Electric(GE).The following is a detailed introduction to it:

1.Product Overview

The GE 469-P5-HI-A20-E-H motor management relay is part of the GE Multilin series and is designed for the protection and management of large and medium-sized high-voltage motors and equipment.Based on microprocessor technology,the relay integrates multiple protection functions,monitoring functions and communication capabilities,and is a key device for motor protection and control in power systems.

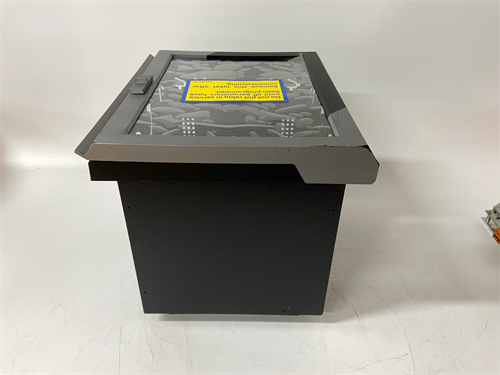

GE 469-P5-HI-A20-E-H

2.Main functions

Motor protection function:Provides multiple protection functions such as overload protection,short circuit protection,overcurrent protection,and ground fault protection to ensure that the motor is in a safe state during operation.

Monitoring function:It can monitor the current,voltage,power factor and other operating parameters of the motor in real time,and has the ability to alarm or record abnormal conditions in real time.

Communication capability:Supports communication with other devices or monitoring systems to achieve remote monitoring and operation.This helps users understand the operating status of the motor in real time and make necessary adjustments and optimizations.

Data recording:It has a data recording function and can record motor operating data for subsequent analysis and fault diagnosis.

3.Technical Specifications

Rated voltage:90-300 volts direct current(VDC)or 70-265 volts alternating current(VAC),frequency is 48-62 hertz(Hz).

Output:4-20 milliampere(mA)analog signal.

Display:The front panel is equipped with a 40-character display screen,and three sets of LED indicators(469 status indicator,motor status indicator and output relay indicator).

Programming and configuration:Provides easy-to-use programming interface and configuration tools,users can program and set parameters according to actual needs.

Housing:Adopts standard GE power management design,uses fixed housing and withdrawable device,and provides mechanical protection.The device does not require any special ventilation during installation and can be cleaned with a damp cloth.

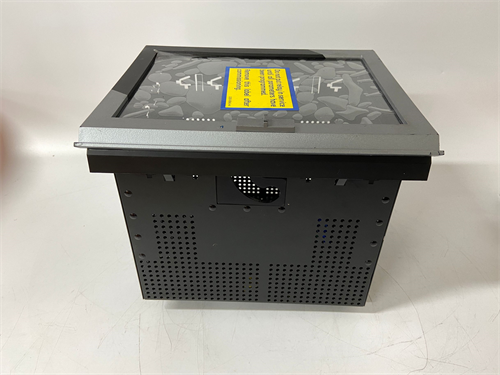

GE 469-P5-HI-A20-E-H

4.Application scenarios

GE 469-P5-HI-A20-E-H motor management relay is suitable for various industrial application scenarios that require high reliability and high stability motor protection.For example,in power systems,it can be used to protect large and medium-sized high-voltage motors from overload,short circuit and other faults;in industrial automation control systems,it can be used as a motor protection module to monitor the operating status of the motor in real time and make necessary adjustments and optimizations.

V.Product Advantages

High reliability and stability:With industrial-grade design and materials,it can operate stably for a long time in various harsh industrial environments.

Easy to install and maintain:The design is simple and convenient for cleaning and maintenance.At the same time,it provides a wealth of debugging tools and functions to facilitate users to debug and troubleshoot modules.

Customization function:GE’s products usually have flexible configuration options,which can be customized according to customer needs to meet the requirements of different application scenarios.
