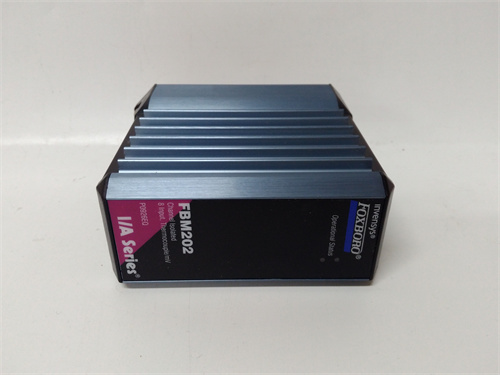

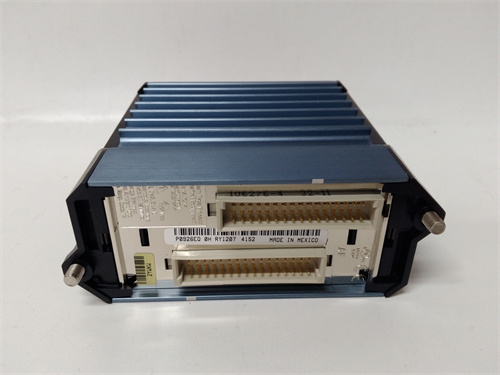

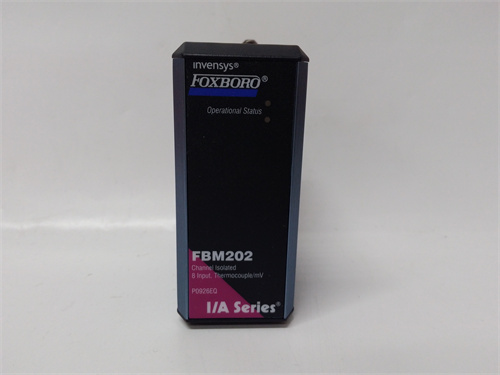

FOXBORO FBM202

Description

FOXBORO FBM202 is a communication module or analog input module produced by FOXBORO,USA.The following is a detailed introduction to the module:

1.Product Overview

The FBM202 module is an important part of the FOXBORO I/A Series system,with high performance,high reliability and easy maintenance.This module is usually used in industrial automation control systems to realize signal acquisition,conversion and transmission functions.

2.Technical Specifications

Model:FBM202

Product Category:I/A Series System Module

Input Channel:It has 8 independent isolated thermocouple/mV input channels and an isolated cold end reference temperature compensation channel.

Input Range:The input range of each channel is-10.5~+69.4 mV dc.

Reference Cold End:A 3-wire 100Ωplatinum RTD(IEC 751,Class B)is provided inside the terminal cable component as a cold end reference temperature compensation.

Accuracy:The mV input RTD channel RTD end reference measurement accuracy is high,the differential input impedance is±0.03%of the range(±27μV)±0.03%of the range±0.50℃at 25℃.

Communication:Communicate with the corresponding fieldbus communication component(FCM)through the fieldbus component.

Input open circuit voltage:2.5 V dc(mV channel),typical thermocouple types include B,E,J,K,N,R,S,T,etc.,as well as other mV signals.

Input channel isolation:Each channel is isolated from all other channels and ground(ground)current,and the isolation voltage is 600Vac.

Power supply requirements:The input voltage range is 24 V dc+5%,-10%,and the power consumption is 3W(maximum).

FOXBORO FBM202

III.Product Features

High performance:The FBM202 module has high-precision and high-stability input channels,which can accurately collect and convert thermocouple and mV signals to meet the needs of industrial automation control systems.

High reliability:The module is made of advanced circuit design and high-quality materials,with high reliability and stability,and can operate stably for a long time in harsh industrial environments.

Easy to maintain:The FBM202 module has clear identification and easy-to-operate interfaces,which is convenient for users to install,debug and maintain.

IV.Application areas

The FBM202 module is widely used in industrial automation control systems in industries such as power,petroleum,chemical,natural gas,metallurgy,cement,papermaking,mining,textile,food,and medicine to realize the collection,conversion and transmission of parameters such as temperature,pressure,and flow.
