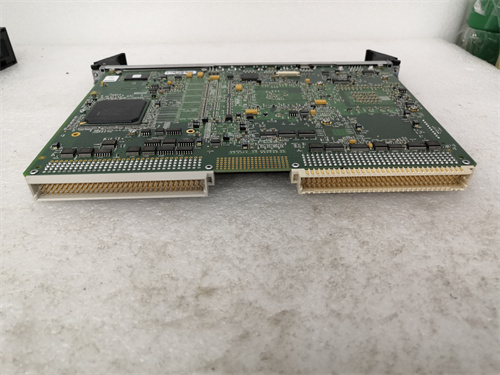

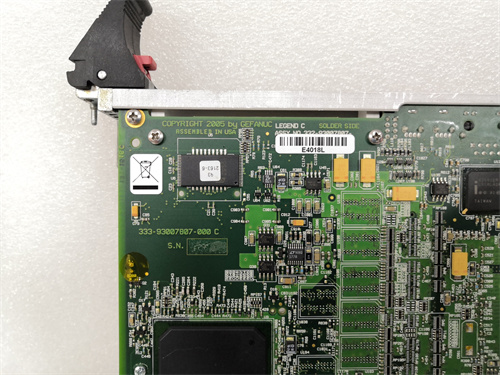

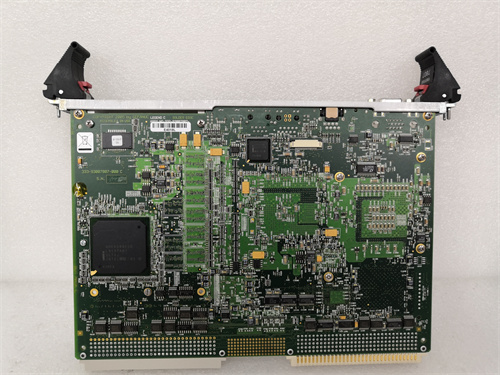

FANUC VMIVME-7807

Description

FANUC VMIVME-7807(may also be indicated as VMIVME-7807 or VME-7807,and VMIVME-7807RC or VME-7807RC version with RC suffix)is a high-performance VME bus single board computer(SBC)or processor module,which is widely used in aerospace,military and defense,industrial automation and other fields.The following is a detailed introduction to the product:

I.Product Overview

VMIVME-7807 follows the VME physical specification of 6U board,can be used as a system controller or peripheral board,and is compatible with any standard chassis that accepts any type of board.It integrates Intel Pentium M processor and advanced Intel 855GME chipset technology,providing high bandwidth and processing power,which is very suitable for I/O intensive applications.

II.Main Features

Processor and Memory:

Integrated Intel Pentium M processor,processor frequency optional,including 1.1 GHz,1.6 GHz or 1.8 GHz.Among them,the 1.8 GHz Pentium M processor is equipped with 2 megabytes of advanced L2 cache.

Equipped with up to 1.5 GB of DDR SDRAM,and optional 512MB soldered memory,the maximum memory capacity can reach 1.5GB.

Storage and expansion:

Provides up to 1 GB of CompactFlash memory for data storage and expansion.

Includes a PCI-X,66 MHz PMC expansion slot for user-friendly function expansion.

FANUC VMIVME-7807

Interface and communication:

Equipped with a variety of interfaces,including VME bus,PCI bus,Ethernet(dual Gigabit Ethernet configuration optional),serial port,USB 2.0 port,SVGA,DVI,etc.

Supports VME64x standard,with a maximum data transfer rate of 80MB/s and supports 64-bit address bus.

Display and video:

Built-in SVGA support(front panel connection),and digital video controller(rear input/output)DVI-D with dual-head display function.

Other features:

Provides auxiliary functions such as real-time clock/calendar,front panel reset switch,micro speaker,keyboard/mouse port,etc.

Equipped with 32KB non-volatile RAM for storing configuration information.

Supports remote Ethernet boot function.

3.Application Scenarios

Due to its high performance and stability,VMIVME-7807 is widely used in various complex and demanding industrial and application environments,including but not limited to:

Control systems and data acquisition in the aerospace field.

Command and control systems in the military and defense fields.

Production line control and monitoring in the field of industrial automation.

Process control and monitoring systems.

Factory automation and intelligent networked PLC controllers.

4.Installation and Configuration

When installing and configuring VMIVME-7807,it is recommended to follow the following steps:

Preparation and inspection:Make sure all components and accessories are complete and check their integrity.

Installing the board:Correctly insert the VMIVME-7807 board into the system controller or peripheral slot of the VME chassis and ensure that it is firmly fixed.

Connecting interfaces:Connect peripheral devices such as keyboard,mouse,monitor,and network communication interfaces as needed.

Configuring BIOS:Configure system parameters such as drive type,memory settings,etc.through the BIOS setup program.

Installing the operating system:If an external drive module is installed,install the operating system according to the manufacturer’s instructions.

Testing and verification:Perform system testing and verification to ensure that VMIVME-7807 works properly and meets application requirements.

FANUC VMIVME-7807

V.Maintenance and Care

In order to extend the service life of VMIVME-7807 and ensure its stable performance,it is recommended to perform the following maintenance and care work regularly:

Cleaning and dust prevention:Clean the board and the inside of the chassis regularly to prevent dust and dirt from accumulating and causing short circuits or failures.

Check the connection:Check the connection between the board and peripheral devices regularly to ensure that the connection is firm and reliable.

Update software:Update software such as BIOS and operating system regularly to fix vulnerabilities and improve performance.

Backup data:Back up important data regularly to prevent data loss or damage.
