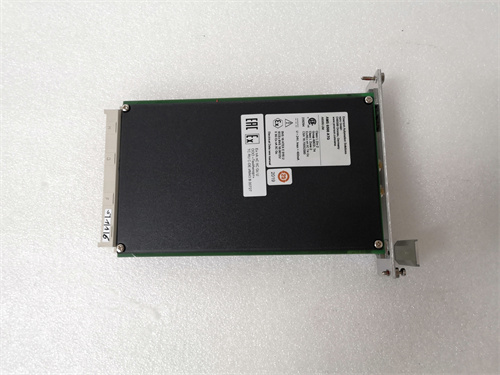

EMERSON A6500-UM

Description

EMERSON A6500-UM is a universal measurement card,which is an important part of AMS 6500 ATG machinery protection system.The following is a detailed introduction to the product:

I.Main functions and features

Dual channel design:A6500-UM universal measurement card is equipped with 2 sensor input channels,which can be used independently or in combination,depending on the selected measurement mode.

Multiple sensor compatibility:The card works with a variety of common sensors,including eddy current,piezoelectric(accelerometer or velocimeter),seismic(electrodynamic),LF(low frequency bearing vibration),Hall effect and LVDT(combined with A6500-LC)sensors,etc.

Digital input and output:In addition to sensor input,the card also contains 5 digital inputs and 6 digital outputs to meet various monitoring and control needs.

Communication and data transmission:The measurement signal is transmitted to the A6500-CC Com card via the internal RS 485 bus and converted to Modbus RTU and Modbus TCP/IP protocols for further transmission to the host or analysis system.In addition,the Com card can also communicate with a PC/laptop via the USB interface on the panel to configure the card and display the measurement results.

Analog output:The measurement results can be output through 0/4-20 mA analog outputs,which have a common ground and are electrically isolated from the system power supply.

Cabinet space optimization:The A6500-UM universal measurement card adopts a dual-channel,3U size,1-slot plug-in module design,which reduces the cabinet space requirement by half compared with the traditional four-channel 6U card.

API 670 compliance:This product complies with API 670 standards and can hot-swappable modules,which is convenient for users to maintain and replace.

Self-test function:The A6500-UM universal measurement card has a self-test function,including monitoring hardware,power input,hardware temperature,sensors and cables,etc.,to ensure the stability and reliability of the system.

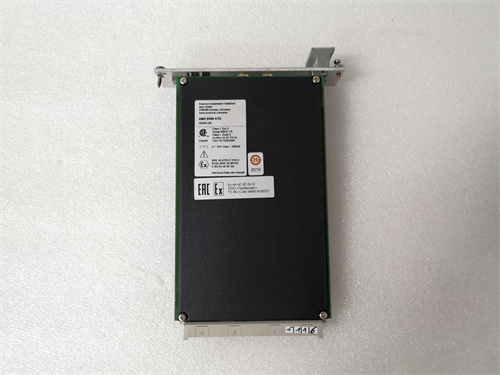

EMERSON A6500-UM

II.Application scope

The A6500-UM universal measurement card is widely used in various scenarios where the vibration of rotating equipment shafts needs to be monitored,such as petrochemical,power,steel and other industries.It helps users to detect potential equipment failures in time through accurate measurement and analysis of shaft vibration,and provides reliable early warning and protection mechanisms to ensure stable operation and safe production of equipment.

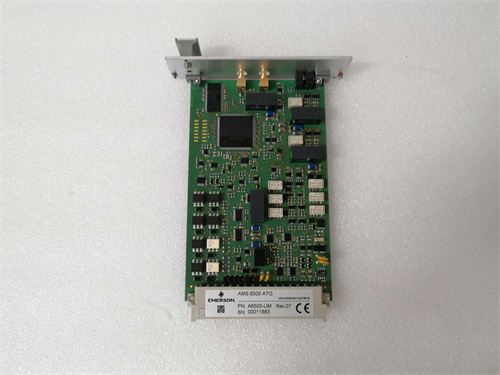

EMERSON A6500-UM

3.Technical advantages

High-precision measurement:It uses high-precision sensors and advanced signal processing technology to accurately measure the vibration of the shaft.

Intelligent fault diagnosis:It has intelligent fault diagnosis function.Through the analysis and processing of vibration data,it can identify potential fault modes and provide fault warning and fault diagnosis information.

Easy to integrate and configure:It has good integrability and configuration flexibility,and can be seamlessly integrated with other industrial automation systems to provide a unified monitoring and management platform.

4.Product Specifications

Power supply voltage:-23.25 V/-26.0 V DC

Sensor power supply:open circuit/short circuit protection,nominal voltage-23.25 V/-26.0 V DC,available current nominal 20 mA,maximum 35 mA

Input frequency range:0 Hz to 18.75 kHz

Input resistance:>100 kΩ

Input voltage range:-1 V to-22 V(eddy current input signal and raw signal)

Output:0/4-20 mA analog output with common ground and electrical isolation from system power supply

Accuracy:±1%of full scale

Settling time:Configurable,0-10 seconds

Operating temperature range:-20°C to+70°C
