Description
Product Description
The DSDP140B 57160001-ACX ABB counter board is used to count pulse signals and provide counting results.
Purpose
Industrial automation control system
Speed measurement
Distance measurement
Flow measurement
Position measurement
Features
High speed counting
High precision
Multiple counting modes
Rich interfaces
Product Description
The DSDP140B 57160001-ACX counter board is a counter module designed specifically for industrial automation control systems.It has the following characteristics:
High speed counting:up to 10 MHz counting frequency
High precision:Counting error less than±0.01%
Multiple counting modes:supports rising edge counting,falling edge counting,double edge counting,and pulse width counting
Rich interfaces:supporting photoelectric isolation input,TTL level input,RS232/RS485 communication interface
Product Description
The DSDP140B 57160001-ACX counter board adopts a modular design,which is easy to install.It has the following structure:
Input end:used to connect counting pulse signals
Output end:used to output counting results
Control end:used to set parameters such as counting mode and counting range
Communication interface:used for communication with the upper computer
Product parameters
Counting frequency:up to 10 MHz
Count error:less than±0.01%
Counting mode:rising edge counting,falling edge counting,double edge counting,pulse width counting
Input interfaces:photoelectric isolation input,TTL level input
Output interface:Pulse output,RS232/RS485 communication interface
Power supply voltage:DC 24V
Product specifications
Size:100mm x 60mm x 20mm
Weight:100g

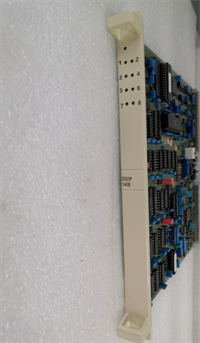

DSDP140B 57160001-ACX ABB
DSDP140B 57160001-ACX ABB
DSDP140B 57160001-ACX ABB
DSDP140B 57160001-ACX ABB
DSDP140B 57160001-ACX ABB
Application field
The DSDP140B 57160001-ACX counter board can be widely used in industrial automation control systems,speed measurement,distance measurement,flow measurement,position measurement,and other fields.
Here are some specific application examples:
In the production line,used to calculate the output of products
In elevators,used to measure the operating speed of elevators
In textile machinery,used to measure the length of fabrics
In the petrochemical industry,used for measuring flow rate
In robots,used to measure the position of the robot
