Description

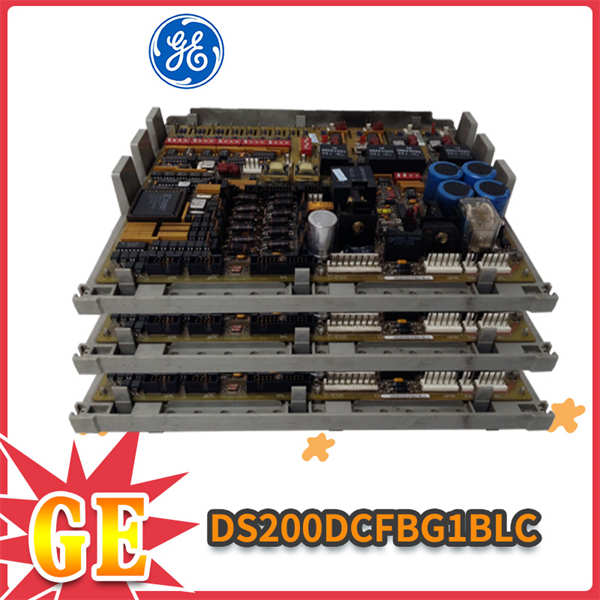

DS200DCFBG1BLC GE Power Supply Board
Product Description:
The DS200DCFBG1BLC GE Power Supply Board is a crucial component within the GE Mark V series, designed primarily for use in industrial automation and control systems. It serves as a power board for a range of GE’s drives, including DC2000, AC2000, CB2000, ME2000, and FC2000 series.

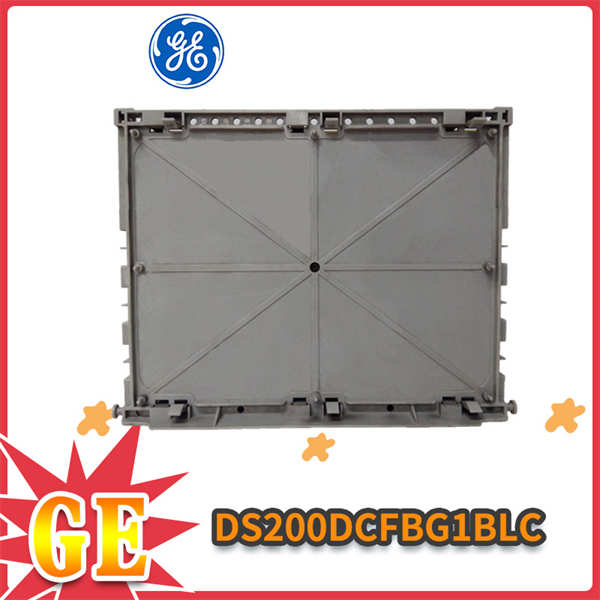

DS200DCFBG1BLC GE Power Supply Board
Product Parameters and Specifications:
Voltage Range: 38 to 115 VAC
Frequency Range: 0 to 500 kHz
Compatibility: Cross-compatible with many GE brand exciters and drives
Dimensions: Not specified
Weight: 1.2 kg
Color: Not specified
Series:
GE Mark V Series – Power Boards
Features:
Wide Input Range: Accommodates a wide range of input voltages and frequencies.
Multiple Circuit Systems: Includes AC and DC monitoring circuits, control level power supply circuits, motor excitation power circuits, and drive circuits.
Configurable: Features 12 jumpers and 7 DIP switches for customization to any external requirements.
Comprehensive Monitoring: On-board indicators, LEDs, and a neon lamp provide critical diagnostic and status information.
Protected: Three on-board fuses ensure uninterrupted power flow, even during surges or voltage fluctuations.

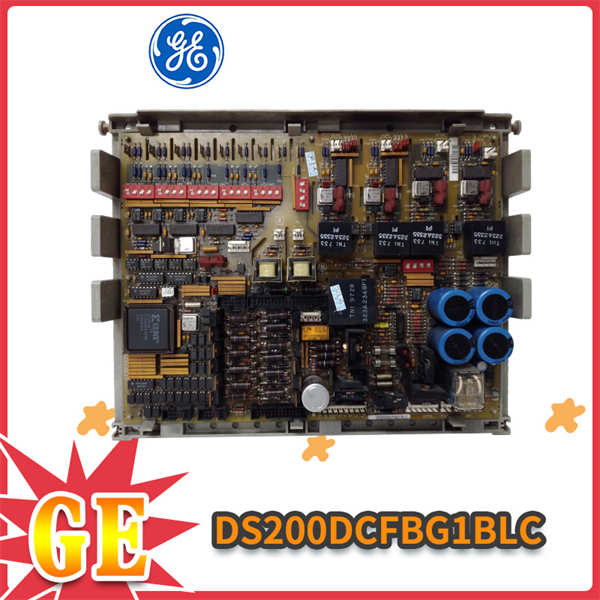

DS200DCFBG1BLC GE Power Supply Board
Functions:
The DS200DCFBG1BLC power supply board provides system control power to installed drives and cabinet fans. It also acts as a critical component in the overall power distribution and protection scheme of the system.
Applications and Uses:
Primarily used in industrial automation and control systems, the DS200DCFBG1BLC powers and protects GE’s range of drives, ensuring reliable and efficient operation. It is compatible with a wide array of GE’s excitation and control systems, making it a versatile component in various industrial applications.
Application Domains:
The DS200DCFBG1BLC finds its use in heavy industries such as power generation, manufacturing, and oil & gas, where reliable and stable power supply is essential for smooth operation of equipment and systems.
Note: The information provided is general in nature and may not cover all specific details or the latest updates regarding the DS200DCFBG1BLC GE Power Supply Board. It is always recommended to refer to the official manufacturer’s documentation for detailed specifications, features, and installation instructions.
