Description

　　Product description

　　The DECS-200-2L BASLER digital excitation control system uses advanced electronic technology and mechanical design,featuring high precision,high reliability and intelligence.It is suitable for a variety of scenarios requiring precise control and monitoring,and can meet a variety of process requirements.

　　trait

　　Digital control technology

　　Reliable and accurate voltage regulation

　　Advanced monitoring and protection features

　　User-friendly interface

　　The DECS-200-2L BASLER digital excitation control system is a state-of-the-art generator excitation control system.It utilizes digital control technology to provide precise voltage regulation and advanced monitoring capabilities.With its user-friendly interface and comprehensive protection features,it ensures optimal performance and reliability.

　　The DECS-200-2L BASLER digital excitation control system is a state-of-the-art solution for precise voltage regulation of generators.It offers advanced features and reliable performance to ensure stable and efficient power generation.

　　The DECS-200 offers all the features,flexibility and programmability expected of today’s latest microprocessor-based products.The DECS200 is a fully excited control system in a single enclosure that contains all the functions needed to limit,control and protect a motor or generator from operating outside the machine’s capabilities.This makes it possible for the DECS200 to be installed in every possible application on virtually any size machine.

　　DECS 200 standard features

　　.Microprocessor-based design

　　.Real RMS sensing,single or three phase

　　.Output up to 125Vdc at 15Vdc

　　.0.25%voltage regulation accuracy

　　.20 standard stability options

　　.User-definable stability options

　　.Shunt compensation

　　.U/F compensation or V/Hz ratio limiter

　　.Soft start accumulation

　　.FCR mode(Built-in manual mode)

　　.Automatic tracking between running modes

　　.Automatic tracking between 2 DECS-200 units

　　.Minimum excitation limiter

　　.Online and offline maximum excitation limiter

　　.Stator current limiter

　　.Reactive power and power factor controller

　　.Excitation Diode Monitoring(EDM)

　　.Event sequence record

　　.oscilloscope

　　.Voltage matching

　　.Eight generator protection features

　　.Programmable output contact

　　.Front panel backlit LCD display.Front panel mounted RS-232 communication port

　　.Side panel mounted RS-485 communication port

　　.Modbus

　　.The RS-485 protocol is 1 km long

　　.Setup via front panel HMI or PC with free BESTCOMS user-friendly setup software.

　　.Meet the surge tolerance and fast transient requirements of C37.90.1-1989

　　Application field

　　DECS-200-2L BASLER digital excitation control system is widely used in power systems and wind power generation,such as large hydropower stations,thermal power plants,nuclear power plants,etc.

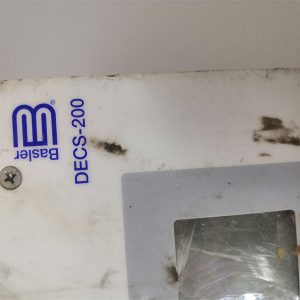

DECS-200-2L BASLER
