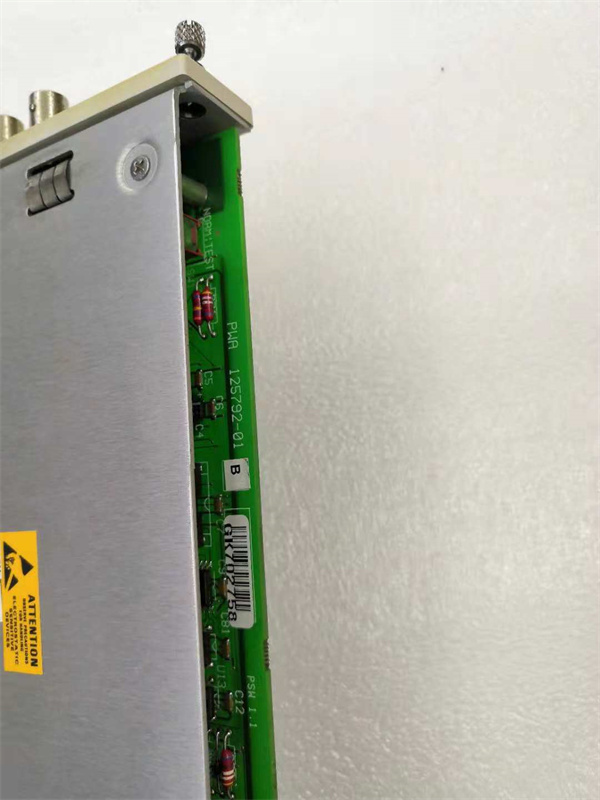

BENTLY 3500 25

Description

BENTLY 3500/25,also known as Bently Nevada 3500/25 or Bently 3500/25,is an enhanced keyphasor module.The following is a detailed introduction to it:

1.Basic properties

Type:half-height dual-channel module.

Purpose:Used to transmit keyphasor signals to monitor modules in 3500 racks.

Manufacturer:Bently Nevada.

2.Technical specifications

Number of channels:Dual channels,which can process input signals from two sensors at the same time.

Input signal:It can receive input signals from proximity probes(also called proximity probes)or magnetic pickups.The input signal range of non-isolated I/O modules is+0.8V to 21.0V(or-21.0V,depending on different materials),and the input signal range of isolated I/O modules is+5V to-11V.

Output signal:Convert the input signal into a digital keyphasor signal.

Power consumption:Typical power consumption is 3.2 watts.

Output impedance:Maximum buffered output impedance is 504Ω.

Environmental restrictions:Storage temperature range is-40°C to+85°C,humidity limit is 95%(non-condensing).

Physical dimensions:119.9 mm x 24.4 mm x 256.5 mm.

III.Features

High precision and high stability:Through advanced signal processing technology,it provides high-precision and high-stability keyphasor signals to ensure the accuracy of monitoring results.

Backward compatibility:It maintains full backward compatibility with existing Keyphasor modules in terms of appearance,installation and function,and can be easily used for upgrading and transformation of traditional or legacy systems.

Extended signal processing capabilities:Compared with previous designs,the Keyphasor signal processing capabilities have been expanded to enable it to cope with more complex industrial monitoring requirements.

Easy to configure and maintain:Users can optimize module functions and troubleshoot through simple settings and debugging.

Dual-channel design:Improves system redundancy and reliability.

IV.Application scenarios

Rotating equipment monitoring:used to monitor key parameters such as shaft speed,vibration and phase of rotating equipment to ensure normal operation and timely maintenance.

Equipment health monitoring:by providing accurate key phase signals,it can realize real-time monitoring and early warning of equipment health status and reduce equipment failure rate.

Industrial automation system:In industrial automation system,this module can be used to realize control logic and signal transmission,improve the automation level and production efficiency of the system.

Process control system:In process industries such as chemical,petroleum,and electric power,this module can be used to monitor and control process parameters to ensure the stability and safety of the production process.
