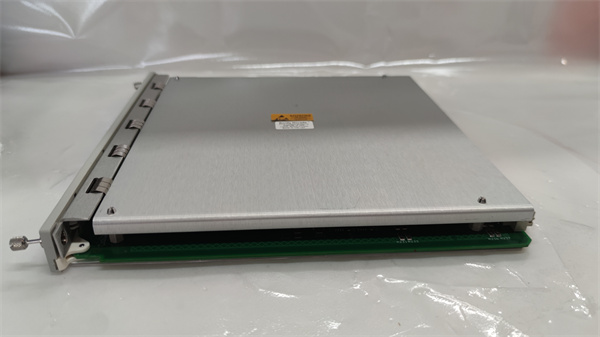

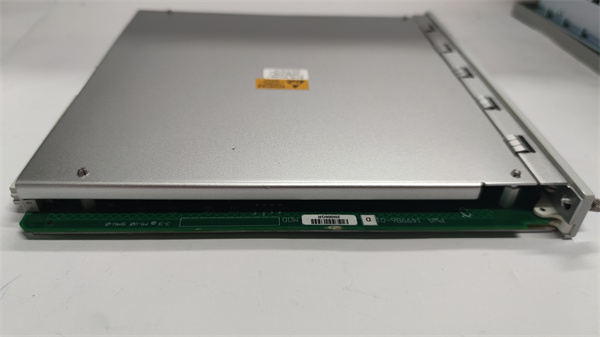

BENTLY 3500 22-01-01-00 Transient Data Interface Module

The BENTLY 3500 22-01-01-00 is a high-performance transient data interface module that belongs to Bently Nevada’s 3500 series and is designed for industrial automation and equipment condition monitoring.

Product Features

Versatile Interface

Serves as an interface between the 3500 monitoring system and Bently Nevada System 1™machinery management software,supporting continuous acquisition of steady-state and transient waveform data.

Integrated Communications Capabilities

Combines the capabilities of the 3500/20 Rack Interface Module(RIM)and a communications processor such as TDXnet.

High-Precision Data Acquisition

Provides high-precision steady-state and transient data acquisition capabilities and supports data transfer to host computer software via Ethernet.

Flexible Configuration

Supports multiple communication protocols,including 10/100 Base T Ethernet and 100 Base FX Fiber Ethernet.

Redundant Design

For Triple Modular Redundancy(TMR)applications,the 3500 system supports TDI in the form of TMR,providing an additional monitor channel comparison function.

Technical Specifications

Operating voltage:110V/220V AC.

Power consumption:10.5W.

Communication interface:10/100 Base T Ethernet,100 Base FX Fiber Ethernet.

Operating temperature range:-40°C to+85°C.

Storage temperature range:-40°C to+85°C.

Humidity range:Maximum 95%(non-condensing).

Dimensions:Compact design for easy installation in the 3500 frame.

Applications

Power plant:used to monitor the vibration and temperature of generators and excitation systems.

Chemical industry:used to monitor the operating status of chemical equipment.

Steel plant:used to monitor the vibration and temperature of steel production equipment.

Water treatment plant:used to monitor the operating status of pumps and fans.

The company mainly imports PLC modules, programmable controllers, servo control systems and DCS spare parts, such as: ABB, AB (Rockwell), GE (General Electric), Bentley, Honeywell, Emerson, Motorola, Invensys, Westinghouse, etc. The company has established close cooperative relations with many world-renowned PLC and DCS product maintenance service providers, and can directly purchase from abroad, providing equipment and spare parts from different countries and manufacturers.
We supply directly from abroad, without middlemen, reducing the cost of use.
There is really no middleman who can make a price difference! !
If you have any defects or need to import PLC, DCS spare parts, please contact our team, we will help you find reliable and high-quality products super quickly, while shortening the delivery time to ensure that your equipment can operate normally in the right environment. On time.
Professionally provide: PLC programmable control system, distributed control system (DCS), safety instrument system (SIS), ESD system, vibration monitoring system, turbine compressor control system (CCS) and other PLC modules, various industrial control systems, system modules, CPU, IO module, DO module, AI module, DI module, network communication module, Ethernet module, motion controller, analog input module, analog output module, switch input module, switch output module, module redundancy, power supply module, relay output unit, relay input unit, processing unit.
Products are widely used in: electricity, petroleum, mine hoisting, ports, heating, gas, water supply, sewage treatment, metallurgy, papermaking, textile, chemical industry, water conservancy and other modern industrial fields!

3500/22M Series Transient Data Interface Card(e.g.3500/22-01-01-CN):

This is the interface between the 3500 Monitoring System and Bently Nevada System 1 Machinery Management Software.

It combines the functionality of the 3500/20 Rack Interface Module(RIM)and a communications processor such as TDXnet.

It is capable of transmitting steady-state and transient waveform data to the host software over an Ethernet link,supporting both static data capture and dynamic high-resolution transient data acquisition.

Other 3500 Series Modules:

3500/05:System Frame,used to mount and connect other modules.

3500/15:Power Module,provides power to the entire system.

3500/20:Frame Interface Module,provides connectivity and communication capabilities to the frame.

3500/33:Relay Output Module,used to control external devices or issue alarm signals.

3500/42M:Displacement,velocity,acceleration monitor,used to monitor parameters such as vibration and displacement of mechanical equipment.

3500/60:Temperature card,used to measure and monitor the temperature of the equipment.

3500/92:Communication card,providing a communication interface with other systems or equipment.

Modules for specific applications or functions:

3500/45:Differential expansion/axial position monitor,used to monitor the axial displacement and expansion of rotating machinery.

3500/50:Speedmodule,used to measure and monitor the speed of the equipment.

3500/93:Isoelectric speed sensor,used to measure the vibration speed of mechanical equipment.
