Description

Bently Nevada 1900/27 is a vibration monitor.Here is a detailed introduction:

1.Basic Overview

The Bently Nevada 1900/27 vibration monitor is a single-channel,stand-alone,locally installed vibration monitoring device.It can be used as an independent machinery protection device for general machinery or certain critical machinery.

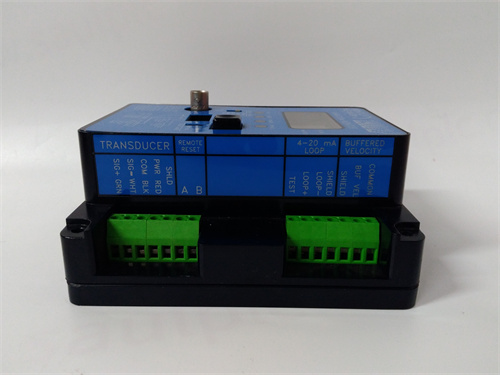

BENTLY 1900 27

2.Technical Specifications

Interface:Provides a built-in 4-20 mA interface for trend analysis of monitoring parameters in factory control and automation systems.

Single-channel design:Supports single sensor input,simplifying the installation and configuration process.

Input:Accepts a single sensor input from a compatible Trendmaster®2000 accelerometer and adjusts the signal to peak velocity units.

Power supply:Supports 85 to 264 Vac AC voltage and 110 to 370 Vdc DC voltage,with a frequency range of 47 Hz to 440 Hz or DC.

Display and indication:

OK indicator:A solid green LED indicates that the display,sensor and field wiring are normal;flashing indicates an abnormality,but it has now recovered.

Alarm indicator:The yellow LED indicator indicates the alarm state,and flashing indicates that the alarm state has occurred and disappeared(only when the alarm relay is configured as non-latching).

Danger indicator:One of the two red LED lights indicates the danger state,and flashing indicates that the danger state has occurred and disappeared(only when the danger relay is configured as non-latching).

Operating temperature and storage temperature:

Operating temperature:-20°C to+70°C(-4°F to+158°F).

Storage temperature:-30°C to+90°C(-22°F to+194°F).

Relative humidity:up to 95%,non-condensing.

Physical dimensions and weight:132 mm high,132 mm wide,71.1 mm deep(5.20 inches x 5.20 inches x 2.80 inches),weighing 400 grams(0.85 pounds).

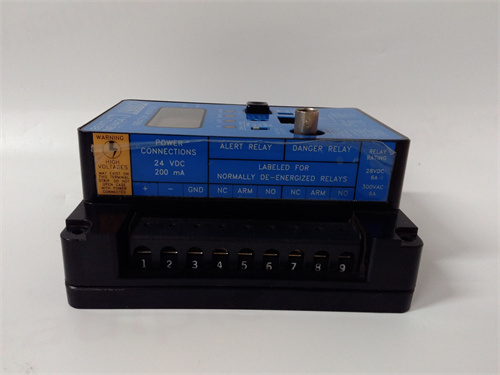

BENTLY 1900 27

III.Functional features

Independent operation:It can operate independently of other systems,enhancing the reliability and flexibility of the system.

Local display and indication:Provides local display and status indication to facilitate users to monitor the vibration status in real time.

Alarm function:equipped with alarm relay contact output,which can be used to connect external alarms to achieve timely alarms.

System integration:optional rack buffer output sensor interface module(TIM),combined with the Trendmaster 2000 system,to achieve a wider range of mechanical protection functions.

IV.Application scope

The Bently Nevada 1900/27 vibration monitor is suitable for various mechanical equipment that require vibration monitoring,such as rotating machinery,compressors,pumps,etc.It can help users detect mechanical failures in time and improve the reliability and safety of equipment.

In summary,the Bently Nevada 1900/27 vibration monitor is a powerful,easy to install and configure vibration monitoring device suitable for various mechanical equipment.
