Bently 9200-06-01-10-00

Description

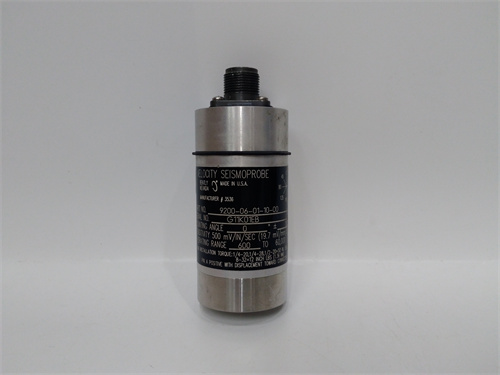

Bently 9200-06-01-10-00 is a vibration velocity sensor.The following is a detailed introduction to it:

1.Product Overview

Bently 9200-06-01-10-00 vibration velocity sensor is a vibration monitoring product of Bently Nevada,USA.The system consists of a sensor,a cable,and an optional vibration monitor.This sensor adopts a two-wire structure and uses dynamic coil technology to provide a voltage output directly proportional to the vibration velocity of the sensor.

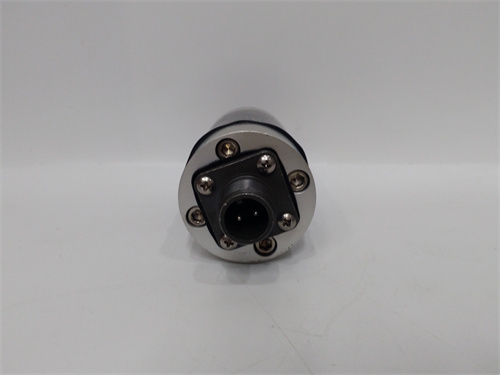

Bently 9200-06-01-10-00

2.Technical Features

Sensitivity:When the sensor is correctly terminated and positioned at the calibration angle,the sensitivity at 100Hz(6000cpm)is 20mV/mm/s(500mV/in/s)±5%.At the same time,at 100Hz(6000cpm),its zero-to-peak sensitivity is 25mm/s(1in/s)±5%.

Frequency response:The frequency response range of the sensor is from the minimum operating frequency(see ordering information for details)to 1kHz(60000cpm),and the typical value is from 0 to±3dB.

Lead length:The maximum length of the lead between the vibration sensor and the monitor can be up to 305 meters(1000 feet).However,it should be noted that the frequency may be attenuated as the length increases.

Operating and storage temperature:For the 9200 model sensor,the operating and storage temperature range is-29°C to+121°C(-20°F to+250°F).

Moving coil technology:Compared with solid velocity sensors,moving coil sensors are less sensitive to shock or pulse excitation,making them a better choice for applications.

No external power supply required:The sensor does not require an external power supply,making portable measurement applications more convenient.

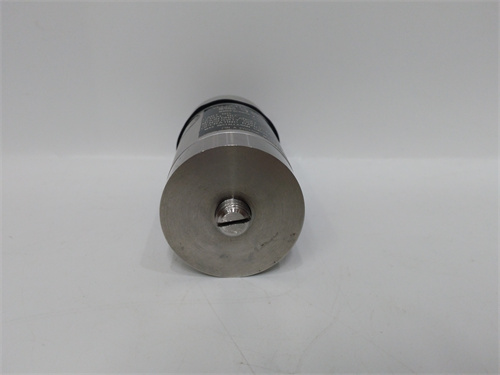

Bently 9200-06-01-10-00

III.Application areas

Bently 9200-06-01-10-00 vibration velocity sensor is suitable for rotating and reciprocating machinery in a variety of industries,such as turbines,compressors,pumps,fans,gearboxes,reciprocating compressors,etc.It can be used to monitor the vibration velocity of the bearing housing or housing of these machines to ensure the normal operation of the equipment and prevent potential failures.

IV.Accessories and options

Connection cable:Common connection cables include 9571 standard cable and 84661 armored cable,which can connect the sensor to other instruments or speed-displacement converters.

Speed-displacement converter:Speed-displacement converters such as 9513 can be used with 9200 sensors to provide a more comprehensive vibration monitoring solution.
