BENTLY 350022M

Description

The BENTLY 3500/22M,or Bently Nevada’s 3500/22M transient data interface(TDI)module,is a key component widely used in industrial monitoring systems.The following is a detailed introduction to the module:

I.Product Overview

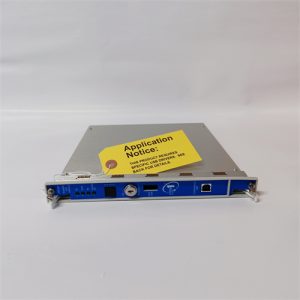

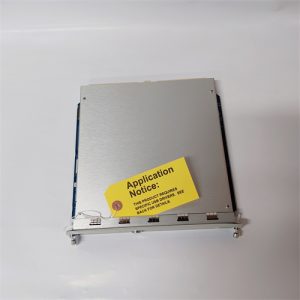

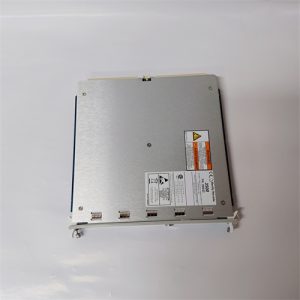

The BENTLY 3500/22M transient data interface module is the interface between the 3500 monitoring system and compatible software.It combines the functionality of the 3500/20 rack interface module(RIM)with the data collection capabilities of communication processors such as TDXnet.The module is located in a slot next to the 3500 rack power supply and connects to M-series monitors(such as 3500/40M,3500/42M,etc.)to continuously collect steady-state and transient dynamic(waveform)data and transmit this data to the host software via an Ethernet link.

BENTLY 350022M

II.Main Functions

Data Collection and Transmission:

Capable of continuously collecting steady-state and transient data.

Transmitting data to the host software via Ethernet.

Static Data Collection:

As standard,it has static data collection capabilities.

Dynamic Data Capture:

Using the optional channel-enabled disk,dynamic and high-resolution transient data can be captured.

Alarm Data Collection:

Before and after an alarm occurs,static values​​and waveform data can be collected for a specific time interval.

Compatibility:

Fully compatible with the 3500 monitoring system and compatible software(such as System 1 Condition Monitoring and Diagnostic Software and 3500 System Configuration Software).

III.Technical Specifications

Power Consumption:10.5 Watts

Front Panel:Provides USB-B Interface

Input and Output:100Base-FX Fiber Ethernet

Indicator:

TX/RX LED:Indicates that the 3500/22M is communicating with other modules on the rack.

CONFIG OK LED:Indicates whether the configuration of the 3500 rack is valid.

Current:Maximum current is less than 1mAdc(dry contact to common terminal)

Startup/Shutdown Data:Less than 1mAdc

BENTLY 350022M

IV.Application Scenarios

BENTLY 3500/22M transient data interface module is widely used in various industrial monitoring systems,especially in areas where continuous,online monitoring and early identification of mechanical failures are required.It is suitable for many industries such as oil and gas,oil and gas transmission pipelines,pulp and paper,metallurgy and mining,food and pharmaceuticals,and ship engines.

V.Product advantages

High integration:It combines the functions of the rack interface module and the communication processor to simplify the system structure.

Strong data collection capability:It can continuously collect steady-state and transient data,providing an important basis for equipment status monitoring and fault diagnosis.

Good compatibility:It is fully compatible with the 3500 monitoring system and a variety of compatible software,which is convenient for users to integrate and configure the system.

High reliability:It uses high-quality materials and advanced manufacturing processes to ensure the long-term stable operation of the module.

The company mainly imports PLC modules,programmable controllers,servo control systems and DCS spare parts,such as:ABB,AB(Rockwell),GE(General Electric),Bentley,Honeywell Er),Emerson.),Motorola,Invensys,Westinghouse,etc.The company has established close cooperative relations with many world-renowned PLC and DCS product maintenance service providers.We can purchase goods directly from abroad and provide equipment and spare parts from different countries and manufacturers.
We supply goods directly from abroad,without intermediaries,reducing the cost of use.
There is really no medium that can make a difference!!
Shenzhen Changxin Automation-sufficient supply,large spot quantity,guaranteed quality,you can buy with confidence and use with peace of mind~!
If you have any defects or needs for imported PLC and DCS spare parts,please contact our team,we will help you find reliable and high-quality products super quickly,while shortening delivery time to ensure that your equipment can operate normally in the right environment.Just in time.
Professionally provide:PLC programmable control system,distributed control system(DCS),safety instrument system(SIS),ESD system,vibration monitoring system,turbo compressor unit control system(CCS)and other PLC modules,various industrial control systems,system modules,CPU,IO module,DO module,AI module,DI module,network communication module,Ethernet module,motion controller,analog input module,analog output module,digital input module,digital output module,module redundancy,power module,relay output unit,relay input unit,processor unit.
Products are widely used in:electricity,petroleum,mine hoisting,ports,heating,gas,water supply,sewage treatment,metallurgy,papermaking,textile,chemical industry,water conservancy and other modern industrial fields!
