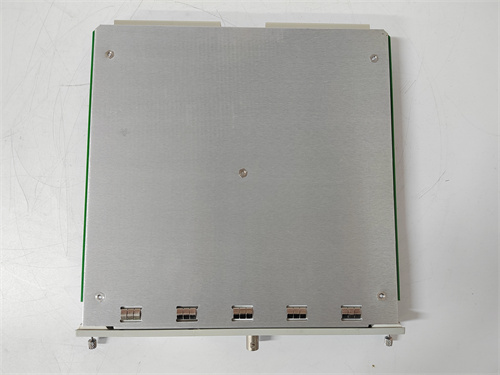

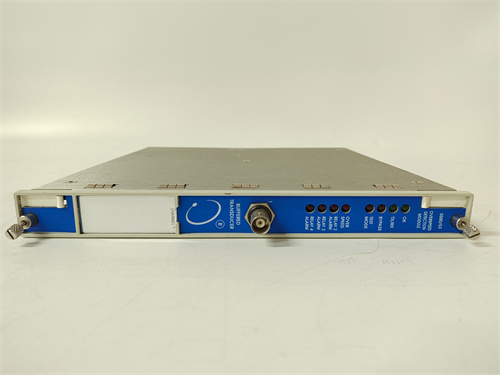

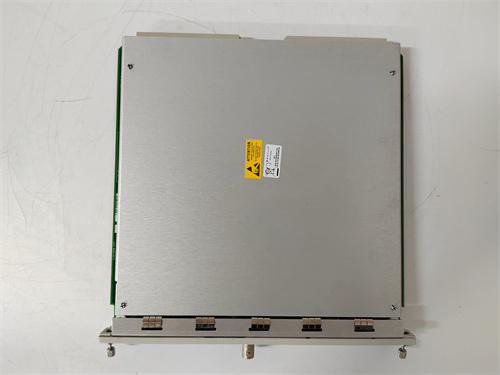

BENTLY 3500/53

Description

BENTLY 3500/53 refers to the electronic overspeed detection system in Bently Nevada’s 3500 series mechanical detection system.The following is a detailed introduction to the system:

1.System Overview

The BENTLY 3500/53 electronic overspeed detection system is a highly reliable,fast-response redundant tachometer system dedicated to mechanical overspeed protection.The system complies with the American Petroleum Institute’s standards 670 and 612 on overspeed protection,and can provide accurate and stable overspeed detection functions to ensure the safe operation of mechanical equipment.

2.Technical Specifications

Input Signal:

Each overspeed detection module receives a signal from an eddy current sensor or magnetic sensor.

The input signal range is+10.0V to-24.0V,and signals outside this range are limited within the module.

Input impedance:20kΩ.

Power consumption:typically 8.0W.

BENTLY 3500/53

Sensors:

Supports Bently Nevada 3300 8mm eddy current sensor,3300 16mm high temperature eddy current sensor(HTPS),7200 5mm,8mm,11mm and 14mm eddy current sensor,3300 RAM eddy current sensor,or magnetic sensor.

Alarm settings:

Set danger(overspeed)set points,which are set by software configuration.

Alarm points are adjustable and usually adjust from 0 to 100%of full scale.

Alarm time delay:less than 30ms at frequencies above 300Hz.

Outputs:

Each module has a coaxial connector on the front for buffered outputs,each connector is short-circuit and electrostatic discharge(ESD)protected.

Output impedance is 550Ω.

Sensor power is 24Vdc,maximum 40mA.

Recorder output is+4 to+20mA,and the output value is proportional to the module full scale range(rpm).

3.System Features

High reliability:Redundant design is adopted to ensure that the system can continue to work when a single module fails.

Quick response:It can quickly detect overspeed and trigger alarm or shutdown protection.

Easy to configure:Alarm points and other parameters are set through software configuration,which is convenient for users to adjust according to actual needs.

Multiple sensor support:Supports multiple types of eddy current sensors and magnetic sensors,which improves the flexibility and compatibility of the system.

BENTLY 3500/53

4.Application scenarios

BENTLY 3500/53 electronic overspeed detection system is suitable for various mechanical equipment that require overspeed protection,such as gas turbines,steam turbines,compressors,etc.In the petroleum,chemical,electric power and other industries,the system is widely used to ensure the safe operation of mechanical equipment and prevent failures and accidents caused by overspeed.

5.System composition and configuration

3500 frame:The frame for installing the overspeed detection system requires redundant power supply to ensure the reliability of the system.

3500/53 module:used to form a 2-choose-2 or 3-choose-2(recommended)voting system to improve the safety and accuracy of the system.

Sensor:Select a suitable eddy current sensor or magnetic sensor and connect it to the overspeed detection module.

Software configuration:Configure the system through software,including setting alarm points,adjusting parameters,etc.
