Description

BENTLY 3500/42M 176449-02 is a high-performance monitoring module.The following is a detailed introduction to it:

1.Product Overview

The BENTLY 3500/42M 176449-02 module is a high-performance monitoring device produced by Bently Nevada(now a subsidiary of Schneider Electric),which is widely used for condition monitoring and protection of mechanical equipment.The module has multiple functions,including radial vibration,axial displacement,eccentricity,REBAM and differential expansion measurement,etc.,and is suitable for shaft vibration monitoring of equipment such as large gas and steam turbines.

2.Main Features

Multi-channel monitoring:

This module is a configurable 4-channel monitor module that can monitor multiple parameters simultaneously,improving the efficiency of testing and measurement.

Various input types:

In addition to receiving eddy current sensor input types,the module can also receive velocity,acceleration and dual probe(velocity and displacement)input types and their related signal conditioning,such as filtering and integration.

Differential signal processing:

The module can extract the housing vibration signal from the relative vibration of the shaft,providing key information for the absolute measurement of the shaft of some large gas and steam turbines.

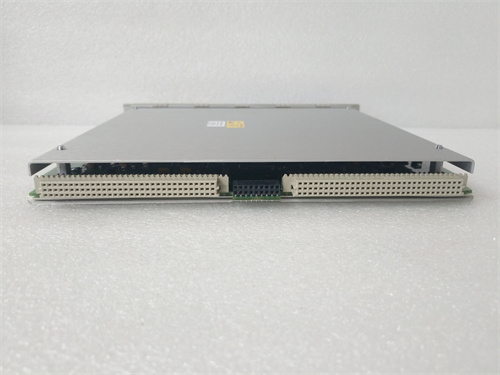

BENTLY 3500/42M 176449-02

High-precision measurement:

The module provides up to 24-bit resolution and low noise level for accurate analog signal measurement.Its excellent linearity and low drift performance ensure accurate measurement results over a wide dynamic range.

Flexible input range:

Supports a variety of adjustable input ranges to meet the amplitude requirements of different signal sources,enhancing the flexibility and accuracy of measurement.

Built-in calibration function:

The module has a built-in automatic calibration function to ensure the accuracy and reliability of each channel during the measurement process.In addition,it also supports standard calibration procedures to further ensure the consistency and accuracy of the measurement results.

High-speed data transmission:

Adopting the PXIe bus interface,the module can achieve high-speed data transmission,ensuring that the collected data can be quickly transferred to the computer for processing and analysis.

BENTLY 3500/42M 176449-02

III.Application field

BENTLY 3500/42M 176449-02 module plays a key role in the shaft vibration monitoring of large gas and steam turbines.Its high performance,high accuracy and flexibility make it an indispensable key component in the field of industrial automation and mechanical equipment monitoring.
