Description

BENTLY 3500/40M 140734-01 is a high-performance displacement monitor.Here is a detailed introduction:

I.Product Overview

BENTLY 3500/40M 140734-01 is a four-channel displacement monitor produced by Bently Nevada.It receives input signals from Bently displacement sensors,processes the signals to generate various vibration and displacement measurements,and compares the processed signals with user-programmable alarm set points.This monitor is widely used in power generation,petrochemical,steel,papermaking and other industries to monitor and protect key equipment such as rotating machinery.

II.Main Features

Four-channel monitoring:

Capable of monitoring signals from up to four channels simultaneously.

Channels can be configured to measure multiple mechanical parameters such as radial vibration,axial displacement,differential expansion,shaft eccentricity,etc.

Flexible configuration options:

Use 3500 framework configuration software to program each channel to meet different monitoring needs.

Channels can be configured in pairs to perform the same or different measurement functions.

Advanced signal processing:

The input signal is limited,filtered and other signal conditioning is performed to ensure the accuracy and stability of the output signal.

It can perform differential signal processing and extract the casing vibration signal,which is suitable for shaft measurement information of large gas turbines and steam turbines.

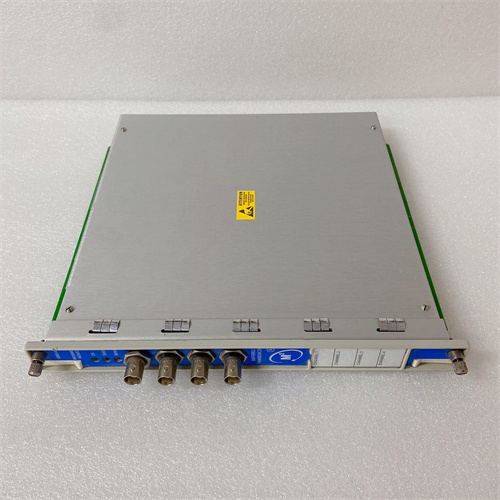

BENTLY 3500/40M 140734-01

Integrated alarm system:

The processed signal is compared with the alarm threshold preset by the user.

It monitors the machine status in real time and triggers an alarm when an abnormal situation occurs so that maintenance measures can be taken in time.

High precision and high reliability:

Adopt advanced sensing technology and signal processing technology to ensure the accuracy of the measurement results.

The product is well designed and has stable performance,and can operate stably for a long time in harsh industrial environments.

Easy to install and maintain:

Provide simple and clear installation guides and maintenance manuals.

Reduce installation and maintenance costs and improve equipment utilization.

3.Technical parameters

Sensitivity:

Radial vibration:3.94 mV/μm(100 mV/mil)or 7.87 mV/μm(200 mV/mil)

Axial displacement:3.94 mV/μm(100 mV/mil)or 7.87 mV/μm(200 mV/mil)

Eccentricity:3.94 mV/μm(100 mV/mil)or 7.87 mV/μm(200 mV/mil)

Differential expansion:0.394 mV/μm(10 mV/mil)or 0.787 mV/μm(20 mV/mil)

Accuracy:

Throughband and gap:±0.33%of full scale,maximum±1%

1X&2X:±0.33%of full scale,maximum±1%

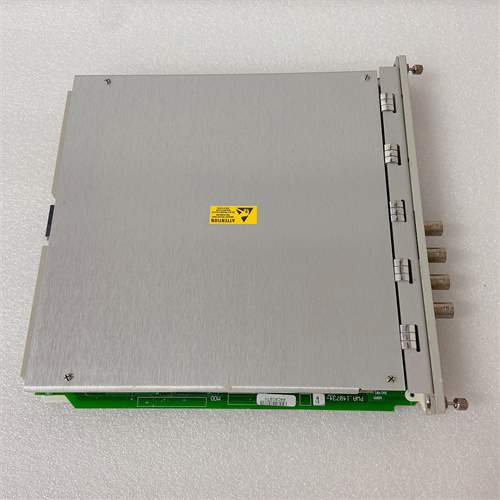

BENTLY 3500/40M 140734-01

4.Application scenarios

BENTLY 3500/40M The 140734-01 displacement monitor is widely used in various industrial fields,especially in power plants,petrochemical facilities,etc.,to monitor the vibration and displacement of rotating machinery such as turbines and compressors.By real-time monitoring and analysis of these data,equipment failures and potential risks can be discovered in a timely manner to ensure the stability and safety of the production process.
