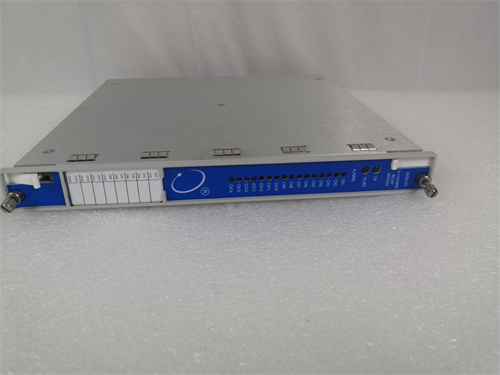

BENTLY 3500/33

Description

BENTLY 3500/33 refers to Bently’s 3500/33 16-channel relay module.The following is a detailed introduction to it:

1.Product Overview

BENTLY 3500/33 is a powerful relay module designed for industrial automation and control systems.The module provides 16 relay outputs,each of which can be independently programmed to perform the required voting logic.This allows it to flexibly adapt to various complex control needs and achieve precise circuit switching and signal transmission.

2.Main Features

16-channel relay output:

The module provides 16 relay outputs,each of which can be independently controlled,increasing the flexibility and scalability of the system.

Independent programming:

Each relay output can be independently programmed to perform the required voting logic.This allows the module to be customized according to different application scenarios to meet various complex control needs.

BENTLY 3500/33

Alarm drive logic:

The module has alarm drive logic function,which can be achieved through”AND gate”and”OR gate”logic programming.This enables the module to trigger the corresponding relay action according to the alarm input(warning or danger),non-OK or independent PPL provided by any monitor channel or monitor channel combination in the frame.This function greatly enhances the safety and reliability of the system.

Modular design:

The module adopts modular design,making installation,replacement and maintenance more convenient.It can be placed in any slot of the 3500 frame interface module and work with other modules to build an efficient and stable control system.

Multiple certification options:

If ordered with multiple certification options(such as ATEX and North American certification),you need to pay attention to the voltage limit of the module to ensure that it meets the relevant hazardous area certificate requirements.

BENTLY 3500/33

3.Application field

BENTLY 3500/33 relay module is widely used in various industrial automation and control systems,especially in places where high precision and high reliability are required.For example,it can be used in vibration monitoring and protection systems for large and medium-sized rotating machinery such as turbines,compressors,fans,pumps,coal mills,gearboxes,motors,etc.In addition,it can also be used in temperature control,data acquisition and analysis,and remote monitoring and control.

4.Software and Hardware Requirements

Software Requirements:

This module requires 3500 Rack Config 3.3 or higher configuration software.

At the same time,it also requires 3500 Data Acquisition Software 2.40 or higher and 3500 Data Display Software 1.40 or higher.

Hardware Requirements:

This module can be installed in any slot to the right of the 3500 Rack Interface Module.

It is necessary to pay attention to the voltage limit of the module to ensure the safety and stability of the system.
