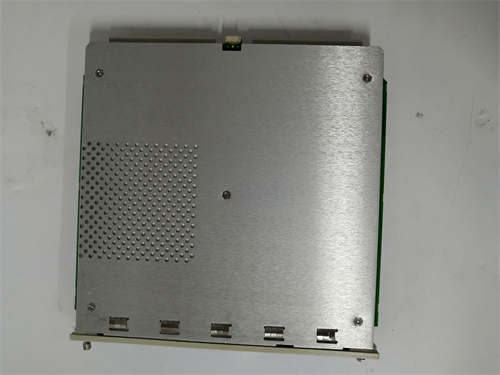

BENTLY 3500/22M

Description

BENTLY 3500/22M,is a transient data interface module developed by Bently Nevada(or BENTLY).The following is a detailed introduction to BENTLY 3500/22M:

I.Product Overview

The BENTLY 3500/22M transient data interface(TDI)is an interface between the 3500 monitoring system and compatible software(System 1 Condition Monitoring and Diagnostic Software and 3500 System Configuration Software).It combines the functionality of the 3500/20 Rack Interface Module(RIM)and the data collection capabilities of a communications processor(such as TDXnet)to collect and process transient data.

II.Main Functions

Data Collection:

TDI connects to M-series monitors(such as 3500/40M,3500/42M,etc.)to continuously collect steady-state and transient dynamic(waveform)data.

This data is transmitted to the host software via an Ethernet link to enable real-time monitoring and analysis of the data.

Data storage:

TDI has a data storage function that can record transient data and transmit it to the monitoring system or data analysis tool for subsequent processing and analysis.

BENTLY 3500/22M

Static data capture:

TDI has a standard static data capture function that can collect regular operating data of the equipment.

Dynamic data capture:

Using the optional channel-enabled disk recording function,TDI can capture dynamic and high-resolution transient data,such as mechanical vibration shock,instantaneous current or voltage mutations in the power system,etc.

Communication processing:

TDI integrates the communication processor function within the 3500 rack to support data communication with other monitoring systems or control devices.

III.Product features

High sampling rate:

BENTLY 3500/22M has a high sampling rate that can capture and record short transient events to ensure the accuracy and integrity of the data.

Multi-channel input:

The module has multiple input channels that can simultaneously collect transient data from different locations or devices for more comprehensive monitoring and analysis.

Safety isolation:

In order to ensure the isolation between input and output signals and prevent power supply interference from affecting the accuracy of measurement and control signals,BENTLY 3500/22M has a safety isolation function.

Strong compatibility:

BENTLY 3500/22M is seamlessly integrated with the 3500 monitoring system and compatible software,which is convenient for users to configure and manage the system.

BENTLY 3500/22M

IV.Application field

BENTLY 3500/22M transient data interface module is widely used in fault diagnosis,equipment status monitoring and preventive maintenance in the industrial field.It can be applied to multiple industries such as energy,oil and gas,manufacturing,etc.to monitor the operating status of key equipment and take corresponding measures when necessary to ensure the safety and reliability of the system.
