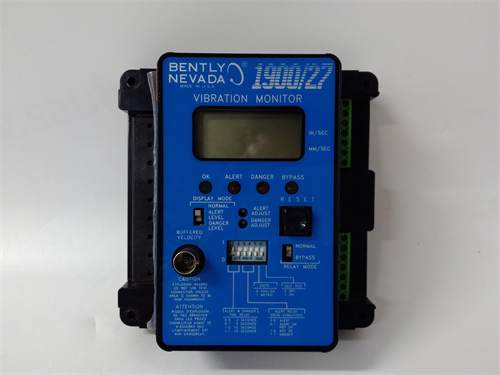

BENTLY 1900/27

Description

BENTLY 1900/27 is a vibration monitor.Here is a detailed introduction:

1.Product Overview

BENTLY 1900/27 is a single-channel,independent,locally installed vibration monitor.It can be used as an independent machinery protection device,suitable for general machinery or certain important machinery.

2.Main Features

Built-in interface:

Provides a built-in 4-20 mA interface for trend analysis of monitoring parameters in factory control and automation systems.

Single-channel design:

Supports single sensor input,which simplifies the installation and configuration process.

Independent operation:

Can operate independently of other systems,enhancing the reliability and flexibility of the system.

BENTLY 1900/27

Local display and indication:

Provides local display and status indication,which is convenient for users to monitor the vibration status in real time.

Alarm function:

Equipped with alarm relay contact output,it can be used to connect external alarms to achieve timely alarms.

System integration:

Optional rack buffer output sensor interface module(TIM)can be used in conjunction with the Trendmaster 2000 system to achieve a wider range of machinery protection functions.

3.Technical Parameters

Input:

Accepts single sensor input from compatible Trendmaster®2000 accelerometer and conditions the signal to peak velocity units.

Power Supply:

Supports 85 to 264 Vac AC voltage and 110 to 370 Vdc DC voltage,with a frequency range of 47 Hz to 440 Hz or DC.

Indicator:

OK:A solid green LED indicates that the display,sensor,and field wiring are normal.Flashing indicates an abnormality,but has now recovered.

Alarm:A yellow LED indicates an alarm state,and flashing indicates that the alarm state has occurred and disappeared(only when the alarm relay is configured as non-latching).

BENTLY 1900/27

Danger:One of the two red LED lights indicates a dangerous state,and flashing indicates that the dangerous state has occurred and disappeared(only when the danger relay is configured as non-latching).

Operating Environment:

Operating Temperature:-20°C to+70°C(-4°F to+158°F).

Storage Temperature:-30°C to+90°C(-22°F to+194°F).

Relative humidity:up to 95%,non-condensing.

Physical dimensions:

Height x width x depth:132 mm x 132 mm x 71.1 mm(5.20 in x 5.20 in x 2.80 in).

Weight:400 g(0.85 lbs).

IV.Application areas

The BENTLY 1900/27 vibration monitor is widely used in various occasions where mechanical vibration status needs to be monitored,such as manufacturing,petrochemical,electric power and energy.It can monitor the vibration status of mechanical equipment in real time,detect and warn potential faults in time,so as to ensure the normal operation of the equipment and production safety.
