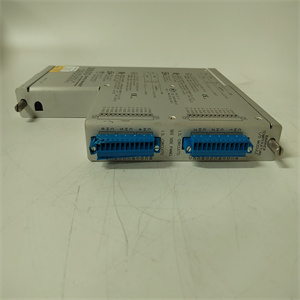

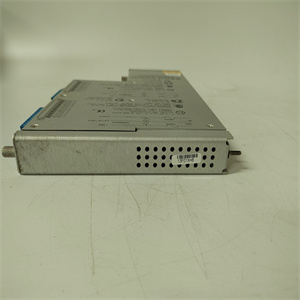

BENTLY 136711-01 3

Here are the Product Details, Specifications, Product Parameters, and Application Fields for BENTLY 136711-01 in English, formatted as a list:

Product Details

• Model: BENTLY 136711-01
•

  BENTLY 136711-01 3

• Type: Analog Input Module
• Manufacturer: Bently Nevada (now Schneider Electric)
• Design: For GE’s RX3i Programmable Logic Controller

Specifications

• Accuracy: High precision analog-to-digital conversion
• Channels: 16 single-ended or 8 differential input channels
• Interface: Configurable to interface with various sensors and transmitters
• Communication: High-speed serial bus communication with RX3i controller
• Self-Test: Built-in self-test feature for conversion accuracy
•

  BENTLY 136711-01 3

Product Parameters

• Input Range: Configurable based on sensor and transmitter types
• Resolution: High resolution for precise measurements
• Sampling Rate: High sampling rate for fast data acquisition
• Power Supply: Specified by the RX3i controller
• Operating Temperature: Industrial temperature range

Application Fields

• Industrial Automation: Used in various industrial automation systems for precise analog signal acquisition and conversion.
• Process Control: Integrated into process control systems to monitor and control critical process variables.
• Monitoring and Diagnostics: Provides real-time data for monitoring equipment health and diagnosing potential issues.
• Data Acquisition: Captures analog signals from sensors and transmitters for further analysis and processing.

Additional Features

• Ease of Installation: Designed for easy installation and maintenance with a front-mounted terminal block and replaceable backup battery.
• Diagnostics: Provides diagnostic reports with real-time status and fault information.
• Watchdog Timer: Monitors module activity and detects any faults or errors.

This module is a reliable and accurate solution for high-precision analog-to-digital conversion in industrial applications, serving as an essential component of the GE RX3i Programmable Logic Controller¹.
