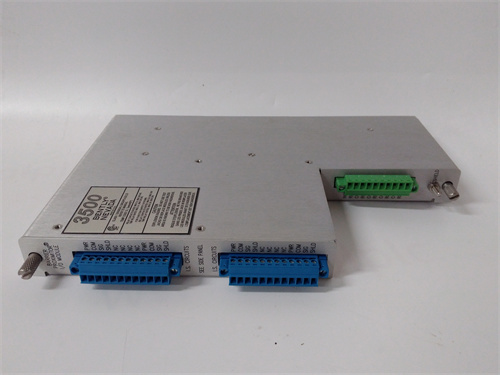

BENTLY 135489-01

Description

BENTLY 135489-01 is a transient data interface module or vibration monitoring system module produced by Bently Nevada.The following is a detailed introduction to the product:

1.Product Overview

The BENTLY 135489-01 module is specially designed to process transient data and is widely used in various scenarios that require real-time monitoring and analysis of the vibration status of mechanical equipment to ensure the normal operation of the equipment and prevent possible failures.

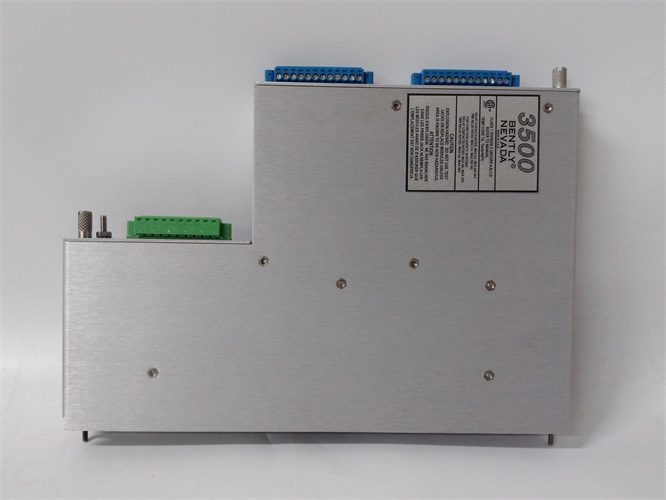

BENTLY 135489-01

2.Functional Features

Multi-channel vibration monitoring:

The module has multiple vibration sensor input channels,which can simultaneously monitor the vibration conditions of multiple devices or different locations.This multi-channel design enables it to fully capture the vibration status of mechanical equipment and provide rich data support for fault diagnosis.

Data acquisition and analysis:

It can collect various vibration parameters such as displacement,velocity and acceleration.By analyzing these data,users can evaluate the operating status and performance of the equipment and discover potential fault hazards in a timely manner.

Flexible output mode:

The output of the module can be a digital signal or an analog signal,which enables it to be integrated with other control systems or monitoring systems to achieve data sharing and collaborative work.

High reliability:

Using high-quality materials and manufacturing processes,and undergoing rigorous testing and quality control,it ensures its high reliability and stability.Even in harsh industrial environments,it can operate stably for a long time,providing users with accurate and reliable data support.

Compatibility and integration:

Compatible with Bently Nevada series vibration monitoring systems,such as System 1,System 2,System 3 and PERMACODE.At the same time,it can be easily integrated with other XM protection modules,PLCs(programmable logic controllers),distributed control systems and condition monitoring systems,and display devices through DeviceNet.

High-precision vibration data:

The module uses a high-precision A/D converter to provide high-precision vibration data to meet the needs of various vibration monitoring applications.

Easy to install and maintain:

It can usually be connected to the main control system through a simple interface,or it can be discretely connected through appropriate cables or connectors.The module itself adopts a sealed design to withstand harsh environments,and it adopts a DIN rail installation method,which is convenient and fast.

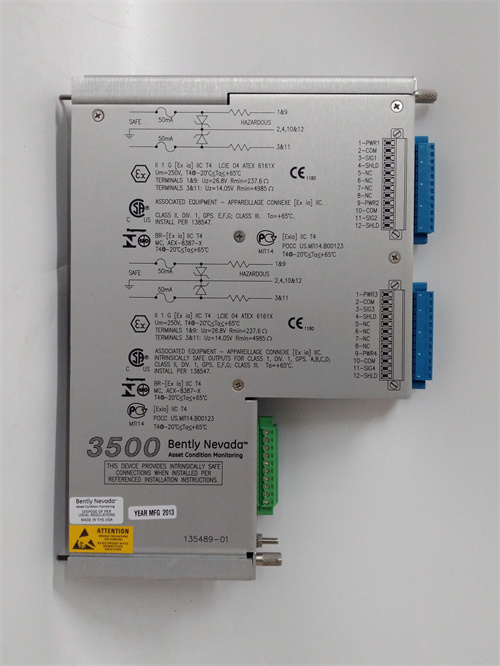

BENTLY 135489-01

3.Technical Specifications

Model:135489-01

Series:3500 Series

Sensor Type:Accelerometer,Velocity Sensor,Displacement Sensor,etc.

Number of Input Channels:4(Some data may vary,but 4 channels are a common configuration)

Vibration Measurement Range:±5g(Specific range may vary depending on model and configuration)

Resolution:24-bit

Sampling Frequency:Up to 10kHz

Operating Temperature:-40℃~85℃

Protection Level:IP67

Dimensions and Weight:Approximately 50mm x 30mm x 15mm,50g(Specific dimensions and weight may vary depending on product version and manufacturer)

4.Application Fields

BENTLY 135489-01 module can be used for vibration monitoring of equipment such as wind turbines,steam turbines,hydroelectric generators,compressors,pumps and motors.By analyzing the vibration data of these equipment,users can promptly detect abnormal conditions of the equipment,take corresponding maintenance measures,avoid equipment failures,improve production efficiency and reduce operating costs.
