Description

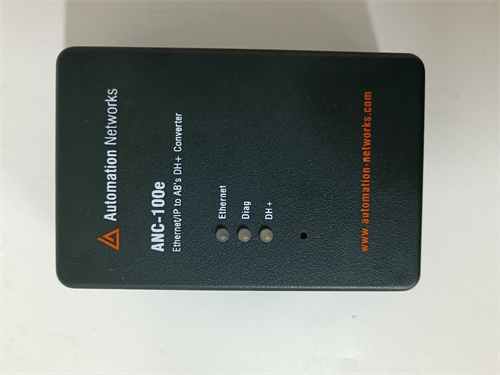

ANC-100E AN-X2-AB-DHRIO is a high-performance communication module,mainly used to achieve conversion between Ethernet/IP and Data Highway PLUS.The following is a detailed introduction to the module:

1.Product Overview

The ANC-100E AN-X2-AB-DHRIO module is produced by PROSOFT and is a powerful communication interface for quantum processors.The module integrates proprietary backplane technology,which can perform powerful data exchange with the processor and supports the complete master specification of IEC 61158.

2.Main functions and features

Ethernet/IP to Data Highway PLUS conversion:The module can convert Ethernet/IP protocol data to Data Highway PLUS protocol data to achieve communication between different networks.

High-speed data transmission:The module supports high-speed data transmission and provides fast data update time across the backplane to ensure the real-time and accuracy of data.

ANC-100E AN-X2-AB-DHRIO

Powerful backplane technology:Integrates proprietary backplane technology and has powerful data exchange capabilities with the processor.

Support PROFIBUS protocol:The module supports PROFIBUS DPV0/V1 protocol,allowing the processor to communicate with slave devices.

Flexible configuration:Configuration data is stored in the non-volatile memory of the ProTalk®module,and the configuration software is Microsoft Windows XP,2000 and NT,which is convenient for users to configure and manage.

Diagnostic function:Supports monitoring/modifying process data and DPV1 acyclic data with online slave diagnostics,which is convenient for users to troubleshoot and repair.

III.Technical specifications

Single slot-Quantum backplane compatible:The module is recognized as an optional module and can access PLC memory for data transmission.

6 modules can be placed in the rack:Local rack modules must be placed in the same rack as the processor.

Compatible with all common quantum programming packages:including Concept(2.6 or higher),Unity Pro(2.2 or higher),ProWORX(2.20 or higher).

Supported quantum data types:3x,4x.

ANC-100E AN-X2-AB-DHRIO

Supports up to 125 repeater slave devices:with extended diagnostic data(DPV1)support.

Supports all standardized baud rates:up to 12mbit/s,with automatic baud detection function.

4.Application Field

The ANC-100E AN-X2-AB-DHRIO module is widely used in the field of industrial automation,especially in situations where communication between different network protocols is required.For example,in a PLC system,the module can realize data transmission and control between PLC and remote devices,improving the automation level and operation efficiency of the system.

5.Product Advantages

High performance:using advanced communication technology to achieve high-speed and stable data transmission.

Flexibility:supporting a variety of network protocols and configuration options to meet different application requirements.

Reliability:using high-quality materials and manufacturing processes to ensure the long-term stable operation of the module.

Easy to maintain:providing standardized interfaces and specifications to facilitate users to carry out daily maintenance and maintenance.
