Description

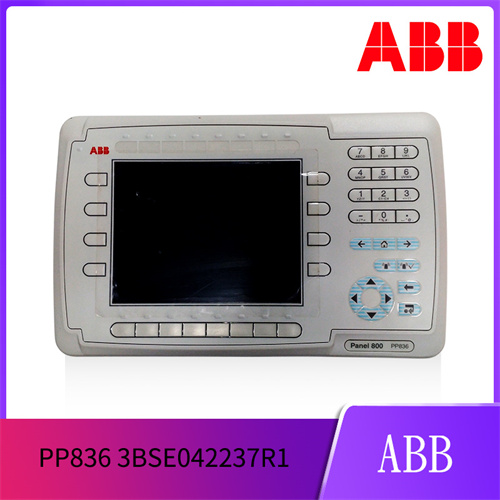

ABB’s PP836 3BSE042237R1 is a touch screen module,commonly used in human-machine interface(HMI)applications.The following is a detailed introduction to the product:

1.Product Overview

The PP836 3BSE042237R1 touch screen module is a high-performance product of the ABB brand.It provides an intuitive,flexible and convenient operation interface,allowing users to easily interact and operate with the control system.This module is widely used in various industrial control systems and equipment,such as production line control,equipment monitoring,process control and other fields.

2.Main Features

Touch screen interface:

Users can interact and operate with the control system intuitively through the touch screen.

Graphical interface:

Equipped with a graphical interface,it can display information such as device status,parameters,charts,etc.,providing an intuitive operation interface.

Multi-touch:

Supports multi-touch technology,users can use fingers or stylus to operate,which improves the flexibility and convenience of operation.

High-resolution display:

With a high-resolution display,it can clearly display images and text,providing a good user experience.

Communication interface:

With a communication interface,it can exchange data and communicate with the control system or other equipment to achieve remote monitoring and operation.

Durability:

With good durability and anti-interference ability,it is suitable for long-term stable operation in industrial environments.

Customized interface:

Supports interface customization.Users can customize the interface layout and function buttons according to actual needs to achieve a personalized operation interface.

ABB PP836 3BSE042237R1

III.Functional application

User interface:

The touch screen module provides an intuitive user interface for interactive operation through the touch screen.It can display graphics,text and other information,allowing users to easily browse and operate the system or equipment.

Visual control:

The module can be used to monitor and control various equipment,processes or systems.Through the touch screen,users can view and adjust parameters,set operating modes,start and stop equipment,adjust parameters,etc.in real time.

Data display and analysis:

The touch screen module can display real-time data,trend charts,reports and other related information.Users can use the touch screen interface to analyze data,monitor system status and performance,and make timely decisions.

Alarm and notification:

The touch screen module can monitor the status of equipment or systems and display alarm information or send notifications when necessary.In this way,operators can respond to problems quickly and take appropriate measures.

Remote access and control:

Some touch screen modules support remote access and control functions.This means that users can remotely access devices or systems through a network connection to monitor and control operations without actually arriving at the site.

ABB PP836 3BSE042237R1

4.Technical specifications

The technical specifications of the PP836 3BSE042237R1 touch screen module may include but are not limited to the following(specific specifications may vary depending on product version or configuration):

Data electrical interface:9-pin Sub_D jack connector,the pin definition complies with the protocol specification of Profibus DP.

Support Profibus DP bus standard.

Communication rate:Supports multiple rates,such as 9.6kBit/s,19.2 kBit/s,45.45kBit/s,etc.

Rate setting:Automatic identification or DIP switch setting.

Signal delay(electrical port):≤11Bit.

Lightning protection:With 4000V lightning protection capability.

Overcurrent protection:1.5A.

Surge protection function:600W.

Fiber wavelength:multimode 850nm,1310nm;single mode 1310nm,1550nm.

Transmission fiber:multimode 50/125um,62.5/125um,etc.;single mode 8.3/125um,9/125um,etc.

Transmission distance:multimode up to 2Km,single mode up to 20Km(longer distance optional).

Fiber interface type:SC,FC,ST optional,standard SC optical interface.
