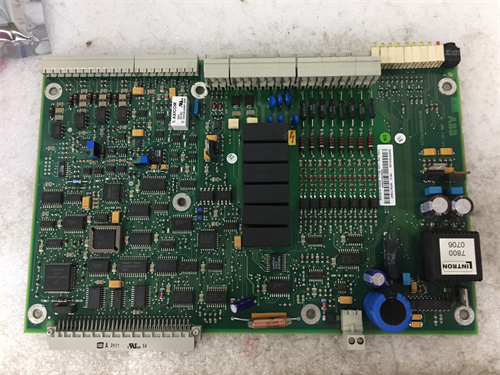

ABB YPQ110A

Description

ABB YPQ110A is a power electronic module or automation control module produced by the Swiss ABB Group.The following is a detailed introduction to the module:

1.Product Overview

The ABB YPQ110A module is usually used to provide excitation current for synchronous generators to control the output voltage and reactive power of the generator.In addition,it can also be used as a hybrid I/O board in conjunction with the ACS880 drive to provide control and protection for the motor.

2.Main functions

Excitation control:The YPQ110A module converts AC power into DC power through a rectifier circuit and then supplies it to the excitation winding of the generator.By controlling the trigger angle of the thyristor,the size of the excitation current can be adjusted to control the output voltage and reactive power of the generator.

I/O function:The module has 16 digital inputs,8 digital outputs,8 analog inputs,and 2 analog outputs to meet the needs of various industrial applications.These input and output interfaces can be used to connect sensors,actuators,and other external devices to achieve data acquisition and output of control signals.

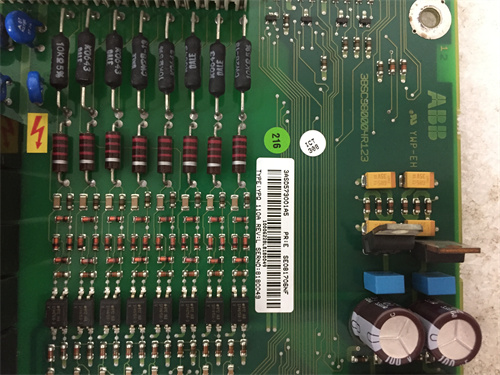

ABB YPQ110A

3.Technical specifications

Applicable drive:ACS880

Digital inputs:16,configurable as PNP or NPN

Digital outputs:8,configurable as relay outputs or solid-state relay outputs

Analog inputs:8,configurable as current inputs or voltage inputs

Analog outputs:2,current outputs or voltage outputs

Operating temperature:-20°C to+60°C(may vary from source to source,but usually within this range)

Protection level:IP20

ABB YPQ110A

4.Application areas

ABB YPQ110A modules are widely used in many fields,including but not limited to:

Industrial automation:used to control and monitor production lines,machines,sensors and actuators to achieve automated production and process control.

Smart buildings:can be used in building automation systems,security systems,energy management systems,etc.to optimize energy consumption,improve comfort and enhance safety.

Energy management:in the energy industry,used to monitor and control systems such as power,water treatment,and energy distribution.

Transportation:used in traffic signal control,intelligent transportation systems,rail transportation control,etc.to improve transportation efficiency,reduce labor costs and optimize logistics processes.

5.Product Advantages

Easy to adjust:The YPQ110A module does not require a DC generator as an excitation power source and has the characteristics of easy adjustment.

Good adjustment performance:The module can accurately control the magnitude of the excitation current,thereby accurately controlling the output voltage and reactive power of the generator.

Versatility:Provides rich I/O functions to meet various application requirements.

Easy to use:Provides an intuitive programming interface for easy user configuration and use.

High reliability:Uses high-quality components and mature design to ensure long-term stable operation of the product.
